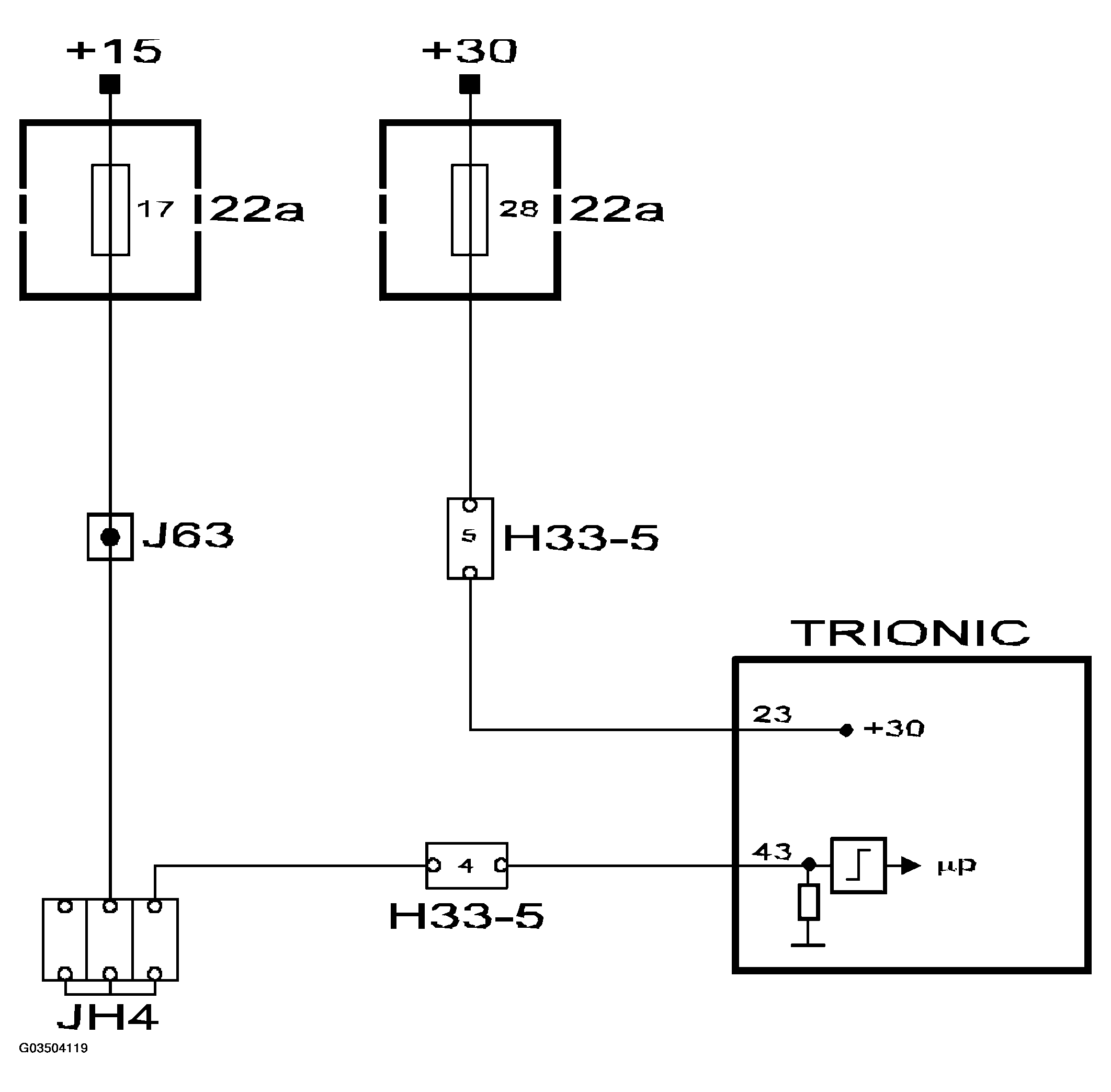

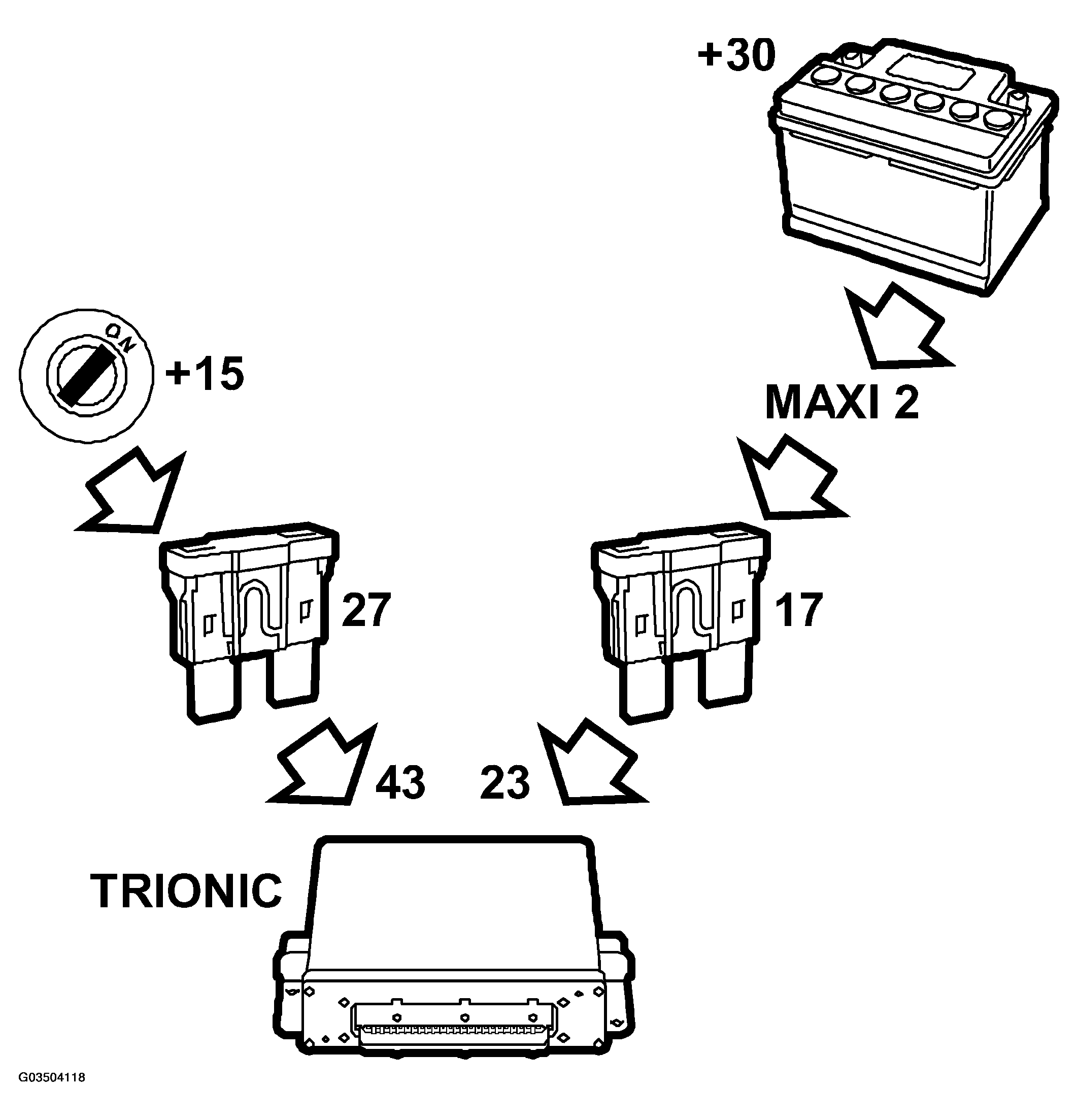

Control module power supply: Notes
+30
The main relay, fuel pump relay and fuse 17 are supplied with +30 from maxi fuse 2. Control module pin 23 is supplied from fuse 28.
The control module uses +30 for its memory.
+15
Control module pin 43 is supplied with +15 from fuse 17. When +15 is applied to pin 43, the control module will be activated.
