2001 Saab 9-3 Base, 2D Hatchback, AutomaticFACTORY OEM SERVICE PROCEDURE

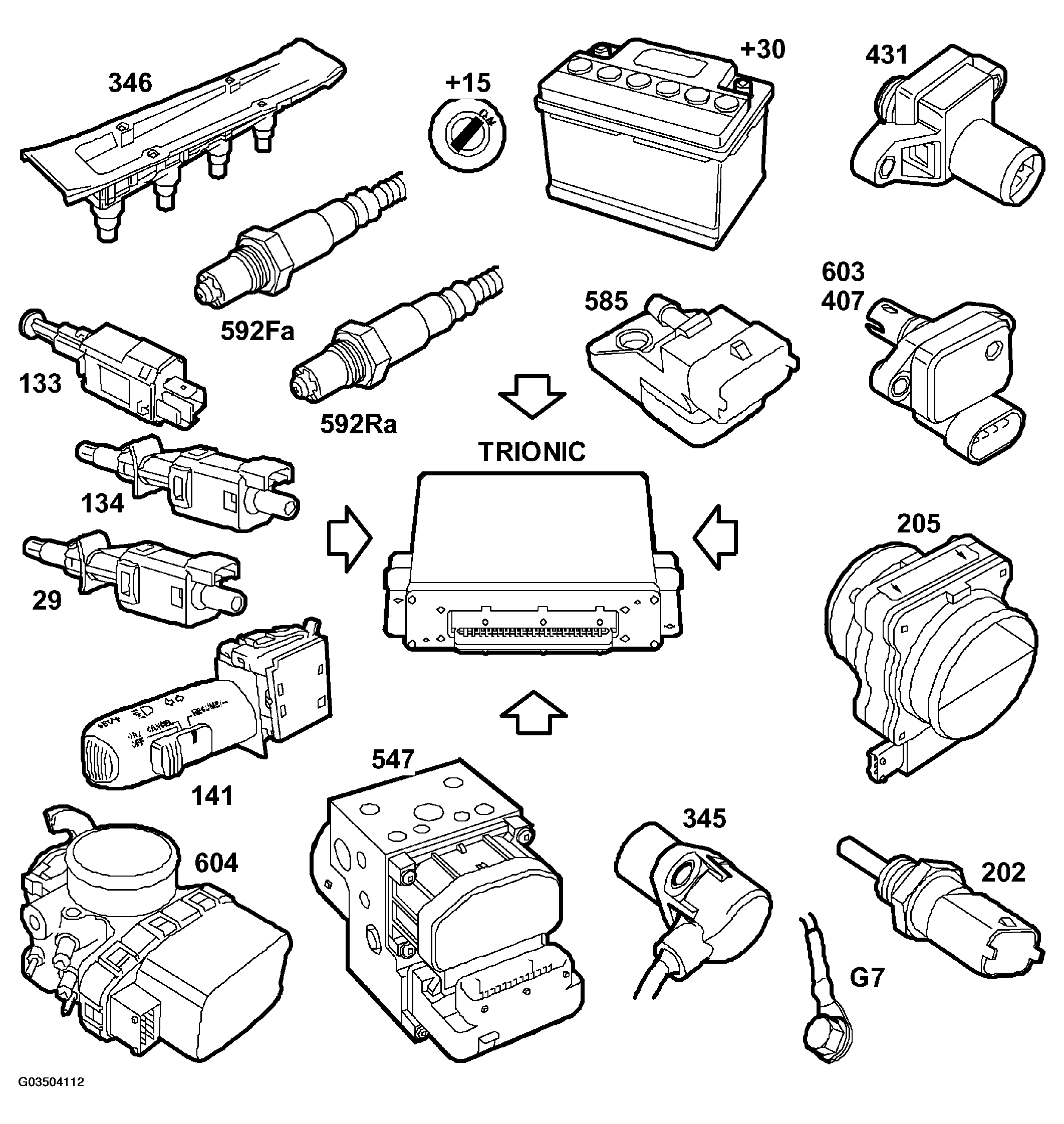

Control module inputs
- Power supply +30, see CONTROL MODULE POWER SUPPLY
- Power supply +15, see CONTROL MODULE POWER SUPPLY
- Power ground, see GROUND
- Mass air flow sensor (205), see MASS AIR FLOW SENSOR
- Manifold absolute pressure sensor (431), see MANIFOLD ABSOLUTE PRESSURE SENSOR
- Charge air absolute pressure sensor (603), see CHARGE AIR ABSOLUTE PRESSURE SENSOR
- Intake air temperature sensor (407), see INTAKE AIR TEMPERATURE SENSOR
- Tank differential pressure sensor (585), see PURGING
- Coolant temperature sensor (202), see COOLANT TEMPERATURE SENSOR
- Speed, wire from ABS (547), see SPEED, WIRE FROM ABS
- Maximum permissible torque, wire from ABS (547), see SPEED, WIRE FROM ABS
- Pedal position sensor, see PEDAL POSITION SENSOR
- Switch, cruise control, see CRUISE CONTROL
- Pedal switches, see CRUISE CONTROL
- Throttle position sensor, see THROTTLE CONTROL
- Oxygen sensor 1 (592Fa), see CLOSED LOOP
- Oxygen sensor 2 (592Ra), see CLOSED LOOP
- Ignition discharge module (346), see IGNITION DISCHARGE MODULE
