2001 Saab 9-3 Base, 2D Hatchback, AutomaticFACTORY OEM SERVICE PROCEDURE

To remove

Turn off the ignition.
Remove the glove box.

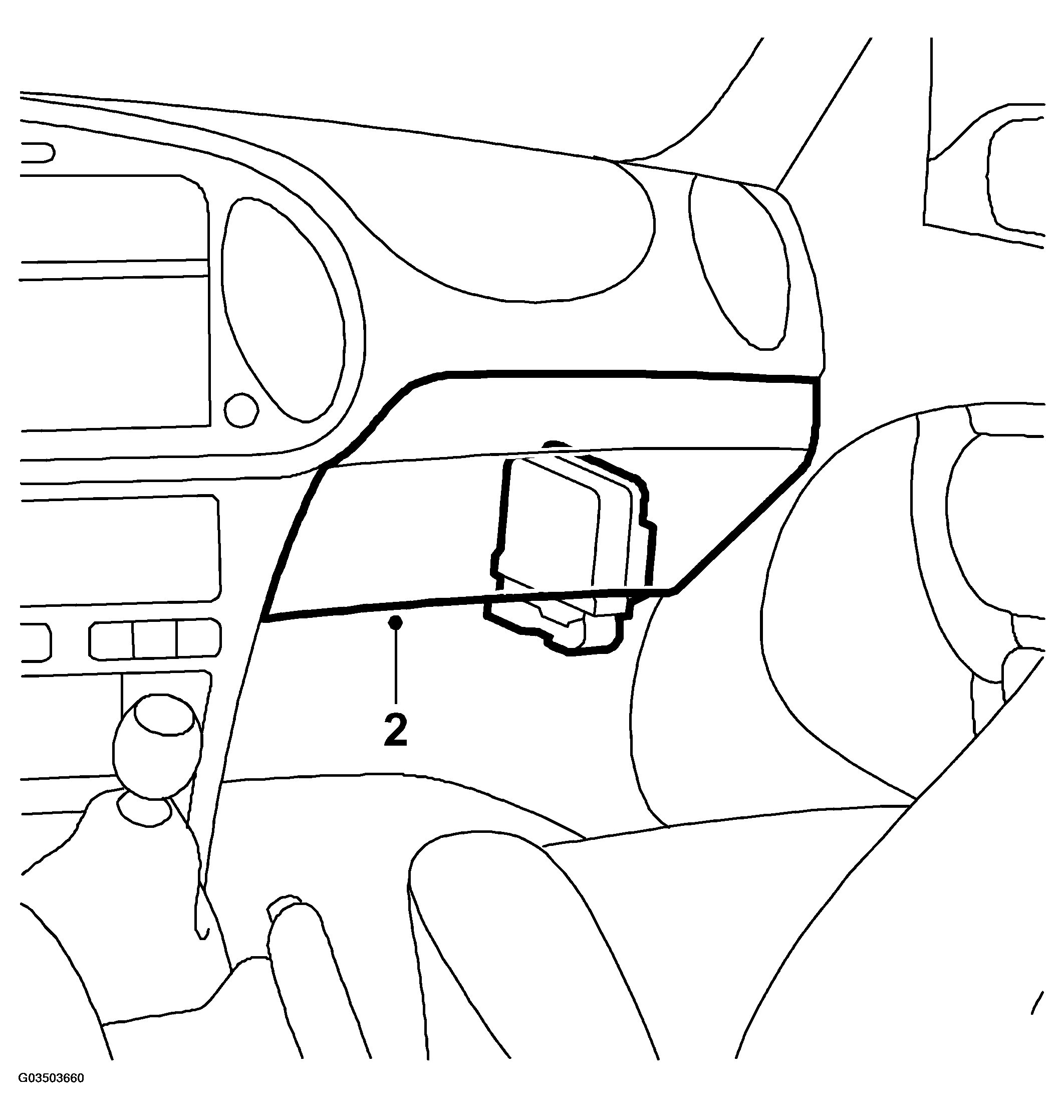

Fig 1: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fold back the carpet.

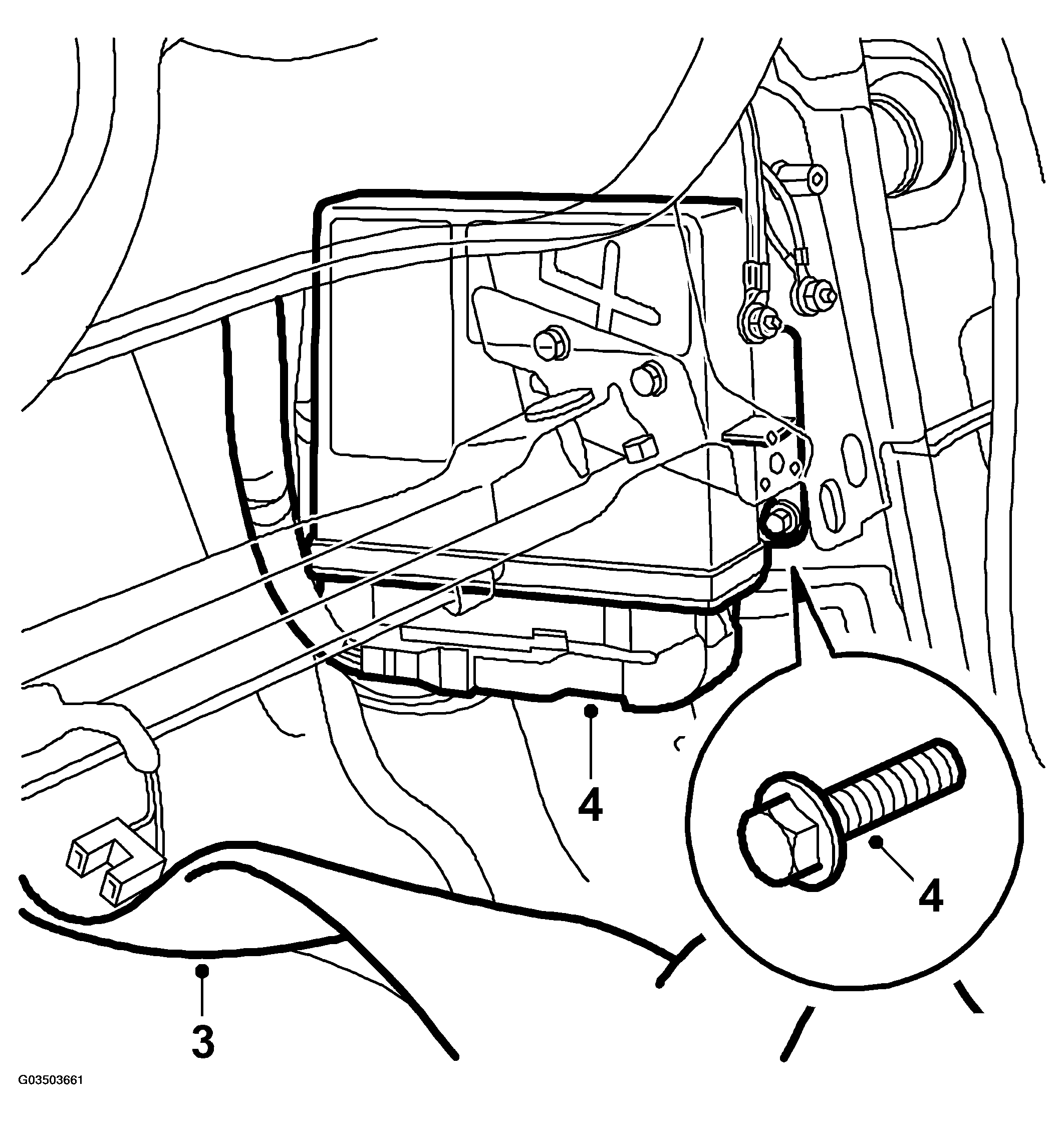

Fig 2: Illustration For Step 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Unplug the connector and remove the screw securing the control module. Remove the control module.
IMPORTANT: ESD-SENSITIVE COMPONENT
Ground yourself by touching the car body or engine before unplugging or plugging in the component. Never touch the connector pins . Prior to changing a control module refer to BEFORE CHANGING A CONTROL MODULE .
