2001 Saab 9-3 Base, 2D Hatchback, AutomaticFACTORY OEM SERVICE PROCEDURE
General data

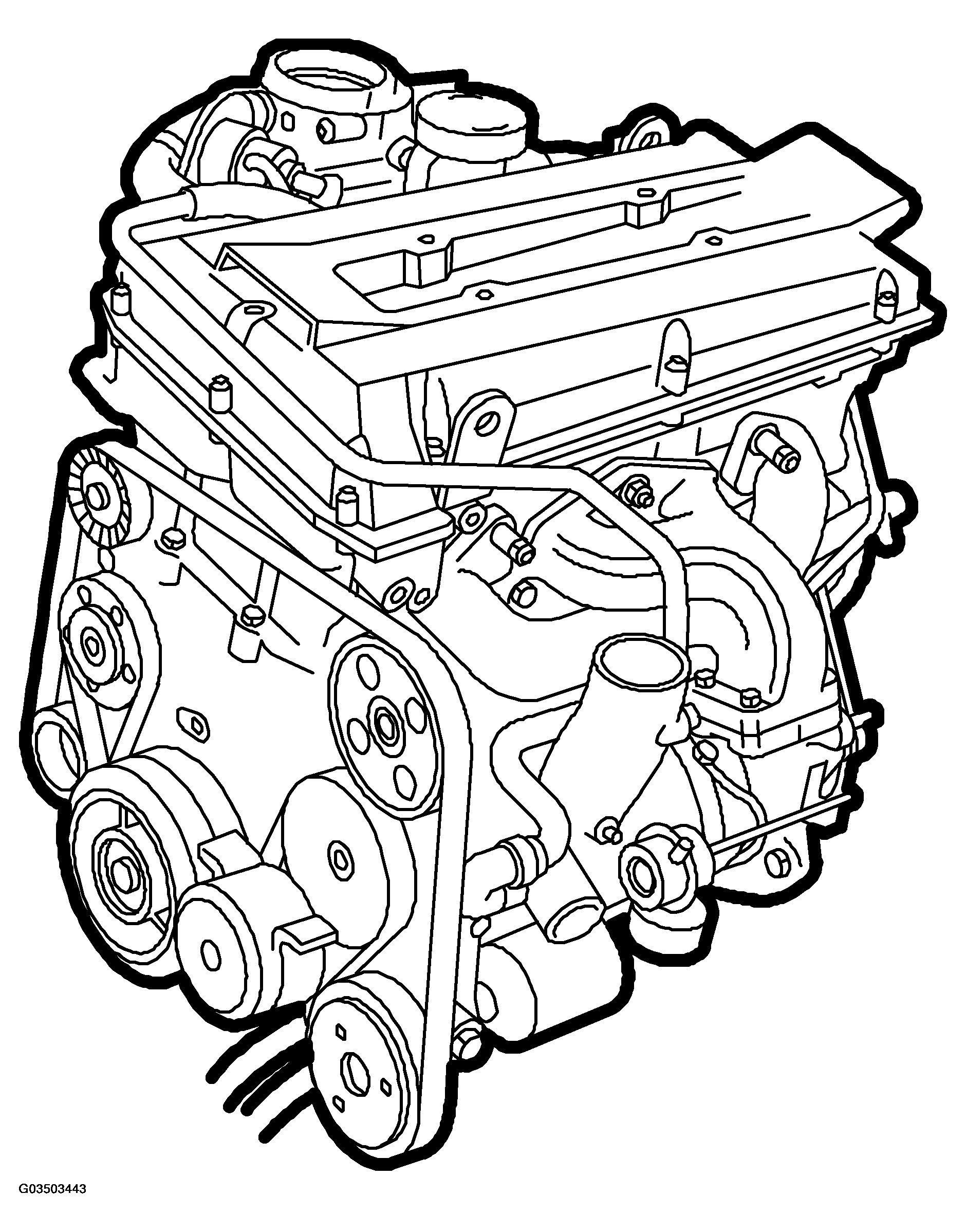

SAAB ENGINE TECHNICAL DATA
| Engine | Measurement | B205E/L/R | B235R |
|---|---|---|---|
| Type | 4-cylinder, 4 -stroke engine with 4 valves per cylinder, twin overhead camshafts and 2 balancer shafts. Transversely mounted. | 4-cylinder, 4 -stroke engine with 4 valves per cylinder, twin overhead camshafts and 2 balancer shafts. Transversely mounted. | |
| Cylinder bore | mm | 90 | 90 |
| Stroke | mm | 78 | 90 |
| Compression ratios | 8,8:1 | 9,3:1 | |
| Cylinder capacity | cm3 | 1985 | 2290 |
| Firing order | 1-3-4-2 | 1-3-4-2 | |
| Weight | kg (lb) | 157 (346) | 158 (348) |
