CAUTION: When performing the following step, position ignition discharge module (IDM) with coils and spark plugs downward.

Disconnect ignition discharge module (IDM) 10-pin connector. Connect test light between connector terminal No. 6 and battery voltage. See Fig 1 . If test light comes on, go to next step. If test light does not come on, repair wiring. See appropriate wiring diagram in WIRING DIAGRAMS article.

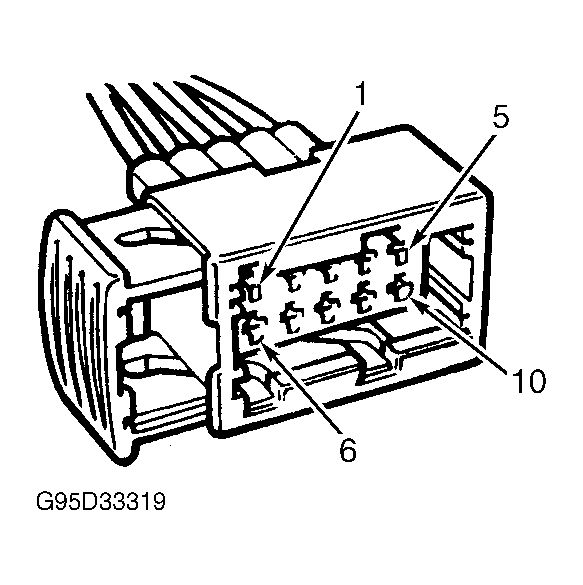

Fig 1: Identifying IDM Connector Terminals (All Models)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect test light between connector terminal No. 10 and ground. Using scan tool, activate one ignition coil. If test light comes on, go to next step. If test light does not come on, check main relay. See RELAYS in appropriate SYSTEM & COMPONENT TESTING article.
Remove Ignition Discharge Module (IDM). Insert test spark plug into each spark plug receptacle. Ground spark plugs with SST 86 10 867 spark plug grounding lead. Using scan tool, activate each ignition coil. Check for spark at each spark plug. Repeat procedure if necessary. If any coil is not operating, replace IDM. If all coils are operating, replace spark plugs and attempt to start engine. If engine does not start, fault is not in ignition system.
