1995 Saab 900 SE, 2D Hatchback, StandardFACTORY OEM SERVICE PROCEDURE

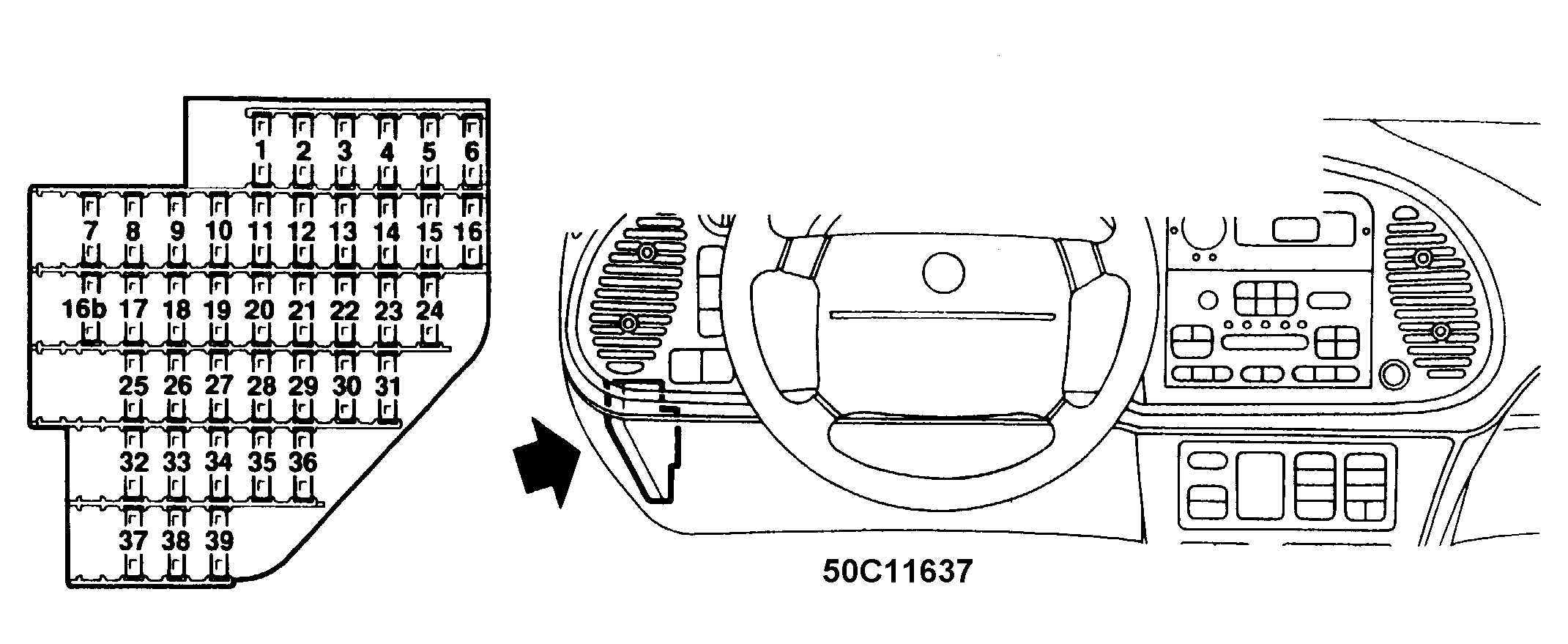

Main Fuse Panel Identification
- 1 - 30 Amp Heated Rear Window
- 2 - 15 Amp Direction Indicator
- 3 - 30 Amp Ventilation Fan
- 4 - 7.5 Amp Interior Lighting
- 5 - 30 Amp Power Seat (RH)
- 6 - 30 Amp Cigarette Lighter
- 7 - 30 Amp Rear Power Windows
- 8 - 15 Amp Rear Window Wiper
- 9 - 15 Amp Radio
- 10 - Not Used
- 11 - Not Used
- 12 - 15 Amp Brake Lights
- 13 - 15 Amp Radio, Data Link Connector
- 14 - 30 Amp Front Power Windows
- 15 - 20 Amp Daytime Driving Lights
- 16 - 30 Amp Power Front Seat (LH)
- 16b - 30 Amp Fuel Injection Relay
- 17 - 15 Amp Instruments, TRIONIC SFI, TCM
- 18 - 15 Amp Instruments, Air Bag
- 19 - 15 Amp ABS, A/C Relay
- 20 - 20 Amp Heated Front Seats, Central Locking
- 21 - 10 Amp A/C ACC
- 22 - 15 Amp Cruise Control System
- 23 - 20 Amp Anti-Theft Alarm, Telephone
- 24 - 10 Amp APC
- 25 - 30 Amp Central Locking, Amplifier
- 26 - Not Used
- 27 - 15 Amp Full & Dipped Beam
- 28 - 30 Amp TCS, TRIONIC SFI, Motronic SFI
- 29 - 7.5 Amp Parking Lights, RH Side Reostat
- 30 - 10 Amp Parking Lights, LH Side Reostat
- 31 - 15 Amp Reversing Lights, Windsreen Wipers
- 32 - 10 Amp Fuel Pump
- 33 - 30 Amp Direction Indicator
- 34 - 10 Amp Instruments
- 35 - 10 Amp ICE
- 36 - 10 Amp Starter Motor
- 37 - 10 Amp Rear Foglights
- 38 - 7.5 Amp Heated Oxygen Sensor
- 39 - Not Used
