2009 Porsche Cayenne Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Removing AWS control unit: Notes

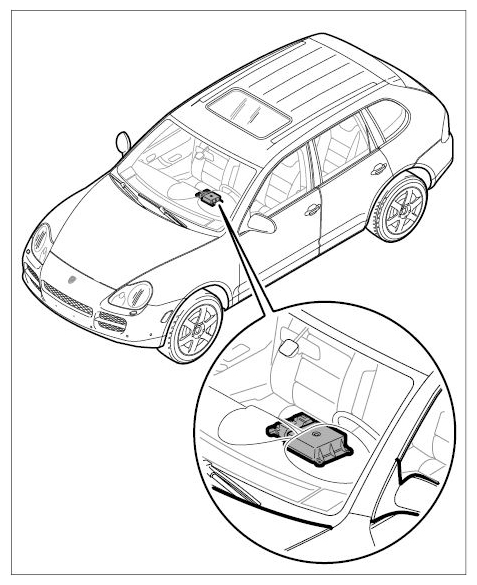

Fig 1: Identifying AWS Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.

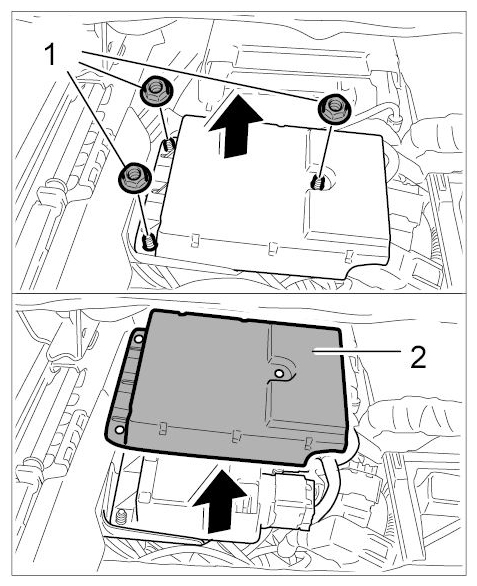

Unscrew the three fastening nuts -1- on the cover of the AWS control unit and remove the cover -2- .

Fig 2: Removing AWS Control Unit Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

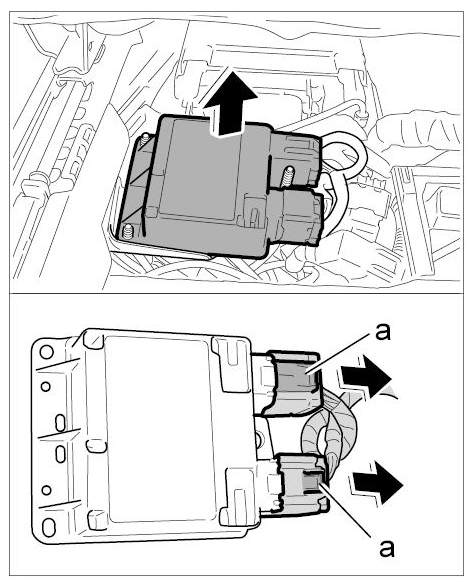

Remove AWS control unit from support, release the two electric connectors -a- and pull them off the control unit.

Fig 3: Unplugging Electric Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
