2004 Porsche Boxster Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Changing ATF Fluid
Filling capacity: approximately 9 l
Change quantity: approximately 3.5 l
NOTE:
- Use only ATF approved by Porsche.
- Remove transverse strut member.
- Place oil collection pan under the transmission.

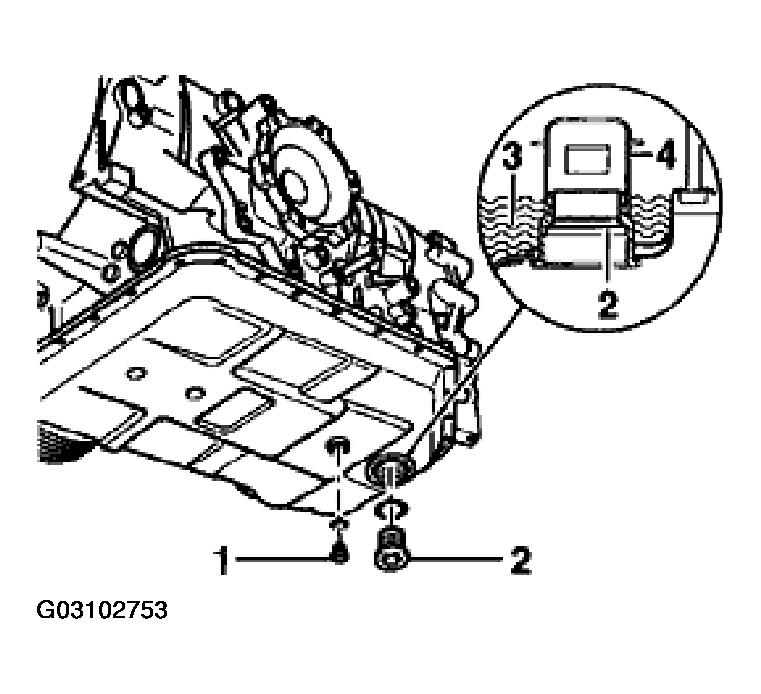

- Unscrew drain plug (1) and drain ATF.
