2004 Porsche Boxster Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Disassembling and assembling intake distributor: Notes
INTAKE DISTRIBUTOR REMOVAL & INSTALLATION PROCEDURE

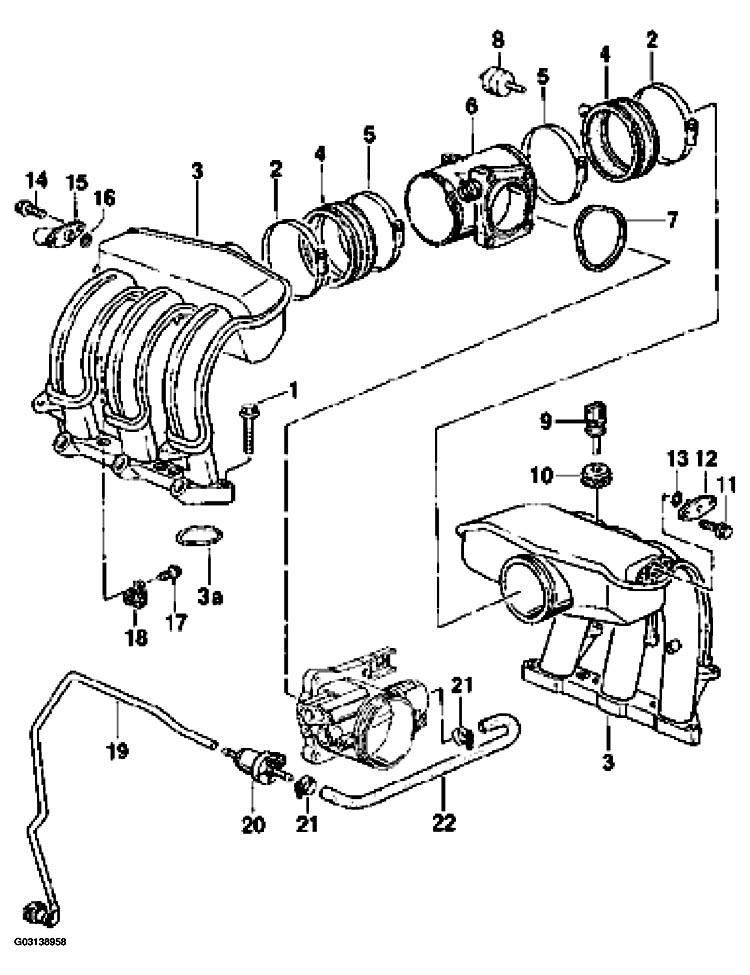

| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Hexagon-head bolt 6x35 | 12 | Tightening torque: 10 Nm (7 ftlb.) | |
| 2 | Hose clamp 90-110/9 | 2 | ||
| 3 | Intake distributor | 2 | ||
| 3a | O-ring 48x3 | 6 | ||
| 4 | Rubber sleeve | 2 | Connecting bores for vacuum control pipes face the front (in direction of travel). | |
| 5 | Hose clamp 90-110/9 | 2 | ||
| 6 | Intermediate piece | 1 | ||
| 7 | Sealing ring | 1 | Replace | |
| 8 | Check valve | 1 | Ensure correct installation position. Assemble with black side facing rubber sleeve (see ASSEMBLY INSTRUCTIONS ). | |
| 9 | Temperature sensor for intake air | 1 | ||
| 10 | Grommet | 1 | ||
| 11 | Hexagon-head bolt 6.0x18 | 2 | ||
| 12 | Closure cap | 1 | ||
| 13 | O-ring 11x2.5 | 1 | Replace | |
| 14 | Hexagon-head bolt 6.0x18 | 2 | ||
| 15 | Adapter | 1 | ||
| 16 | O-ring 11x2.5 | 1 | Replace | |
| 17 | Hexagon-head bolt | 1 | ||
| 18 | Fastening clamp for vent line | 1 | ||
| 19 | Vent line | 1 | ||
| 20 | Tank venting valve | 1 | ||
| 21 | Hose clamp 8-16/9 | 1 |
