2003 Porsche Boxster Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Removing And Installing Deflection Lever: Removal

Detach selector lever cable at deflection lever.

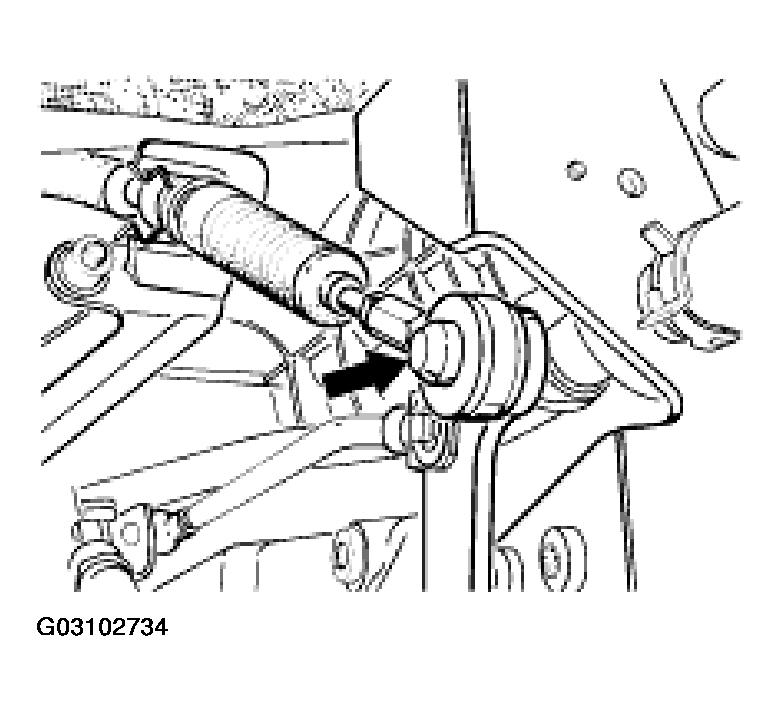

Fig 1: Detaching Selector Lever Cable At Deflection Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unclip push rod on transmission lever.
Remove snap ring for deflection lever and remove lever with push rod.

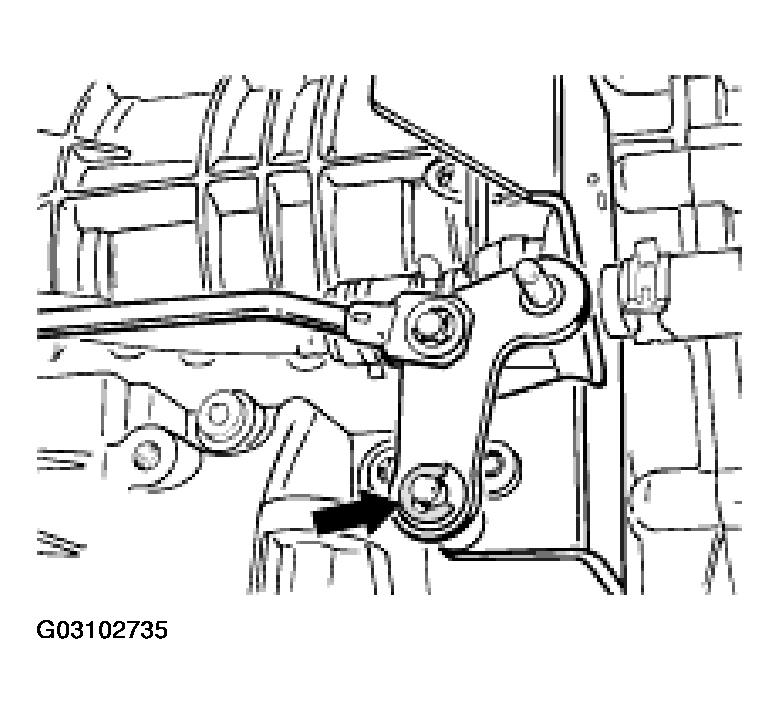

Fig 2: Removing Snap Ring For Deflection Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
