2003 Porsche Boxster Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Checking belt strap

  • Pull out the belt strap on the automatic belt device fully.
  • Check the belt strap for soiling; clean, if necessary, with mild soap suds. When drying, avoid direct sunshine.
  1. Damage type 1

    If one of the damage types shown below -damage types 1 and 2-  is found on an accident vehicle, the seat belt and belt buckle must be replaced.

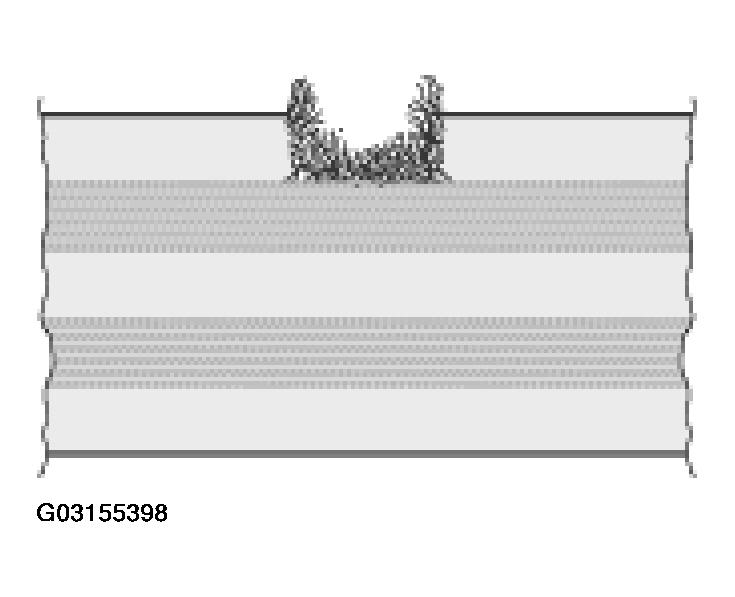

Fig 1: Identifying Belt Damage Type 1
G03155398Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Damage type 2

    If damage such as -damage type 1,2, 3-  is found on a vehicle not involved in an accident, it is sufficient to replace the damaged seat belt.

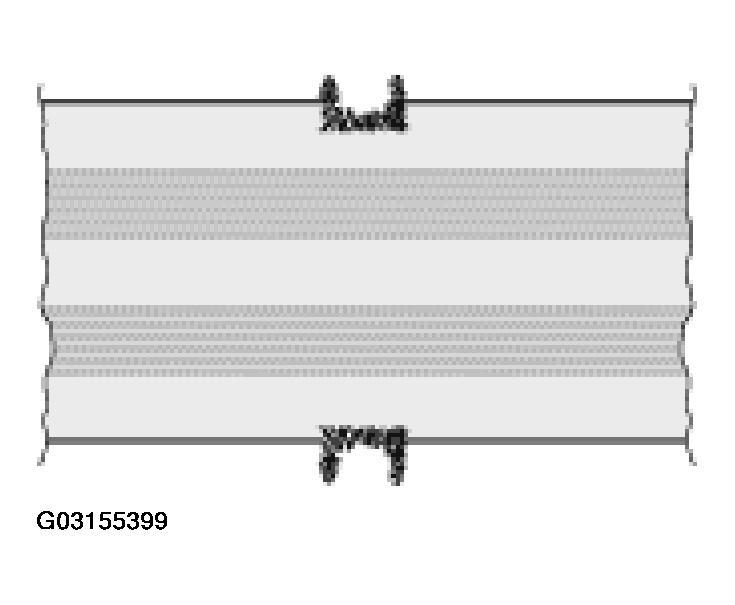

    Fig 2: Identifying Belt Damage Type 2
    G03155399Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Damage type 3

    Burn marks from cigarettes, or similar.

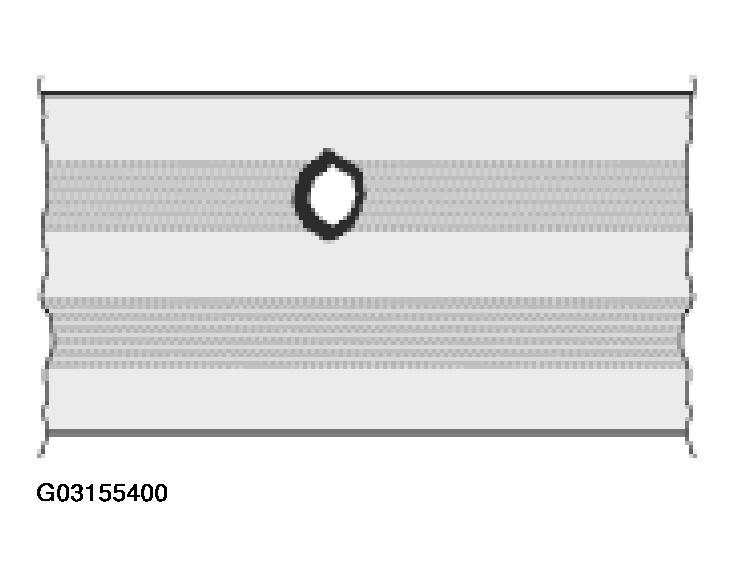

    Fig 3: Identifying Belt Damage Type 3
    G03155400Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Damage type 4

    The belt tensioner must always be replaced if it has been triggered. The seat belt is damaged by the deflector -damage type 4-.

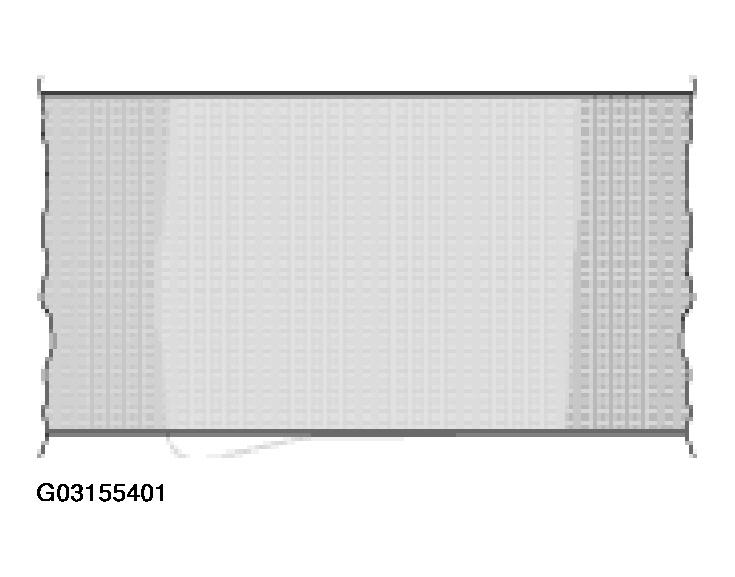

    Fig 4: Identifying Belt Damage Type 4
    G03155401Courtesy of PORSCHE OF NORTH AMERICA, INC.
