2003 Porsche Boxster Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Removing Current Distributor

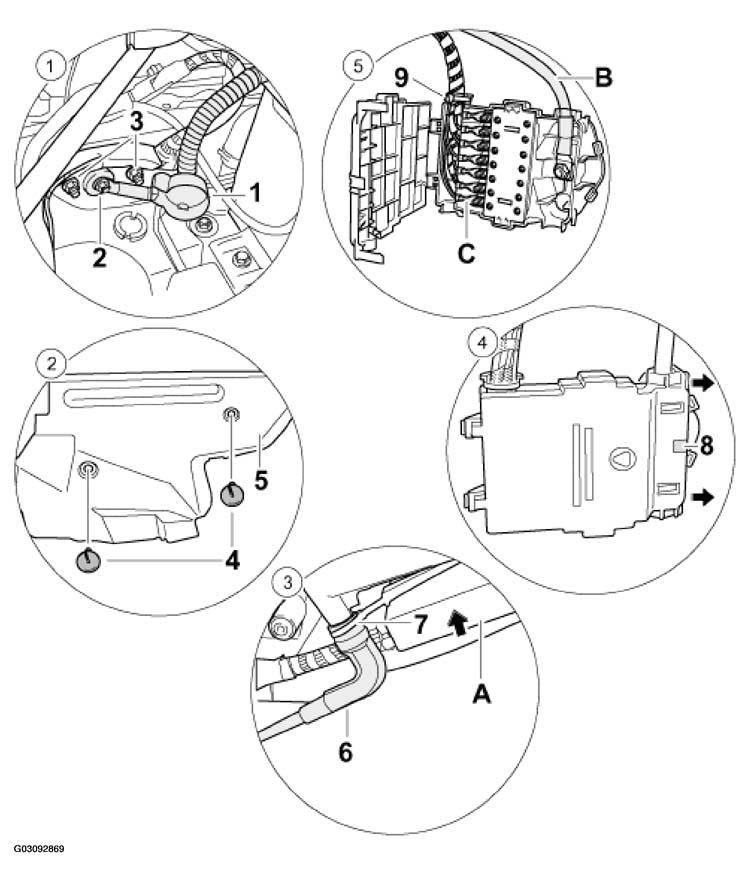

CURRENT DISTRIBUTOR REMOVAL SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| Disconnect battery | Remove the battery cover and the cover of the right radiator tank. Removing and installing cowl panel cover. Refer to REMOVING AND INSTALLING COWL PANEL COVER . Refer to WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY . Disconnect and cover the ground terminal on the battery |
|||
| 1 | Current distributor fastening | Pull off the covering cap -1-2-3- (1) | ||
| 2 | Cover in passenger's footwell | Unscrew both plastic screws -4-5- (1) | ||
| 3 | Lowering the current distributor | Disconnect the tie-wrap -7-6-6-A-arrow- (1) | ||
| 4 | Opening the current distributor | Disengage the lock -arrow-8-green-red-blue- (1) | ||
| 5 | Disconnecting the connection lines | Mark the connection lines -C-C-B-9- (1) | ||
|
||||
