2001 Porsche Boxster Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Removing And Installing Multi-Function Switch: Removal

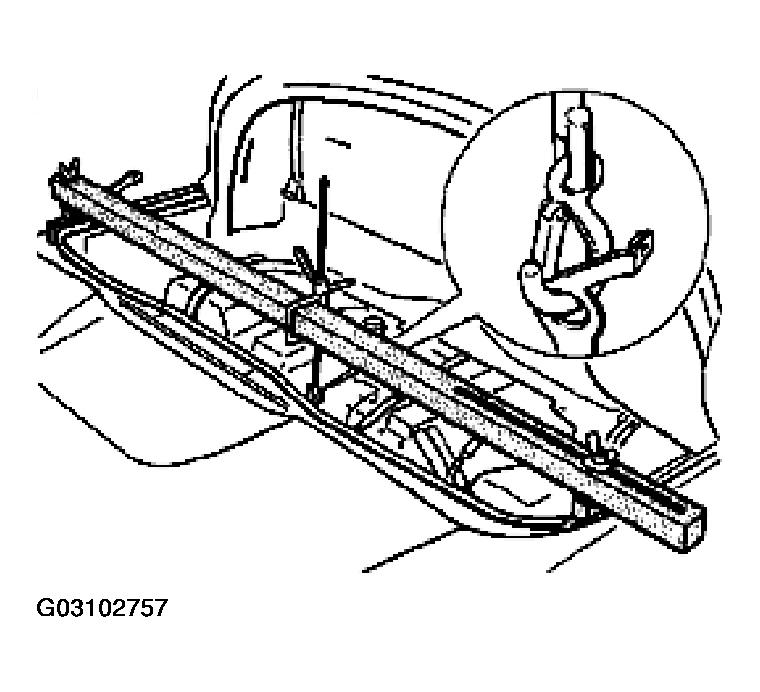

- Hold engine by transport shackle in installed position with special tools 10 - 222A and 9591/1.
- Remove the left catalytic converter.

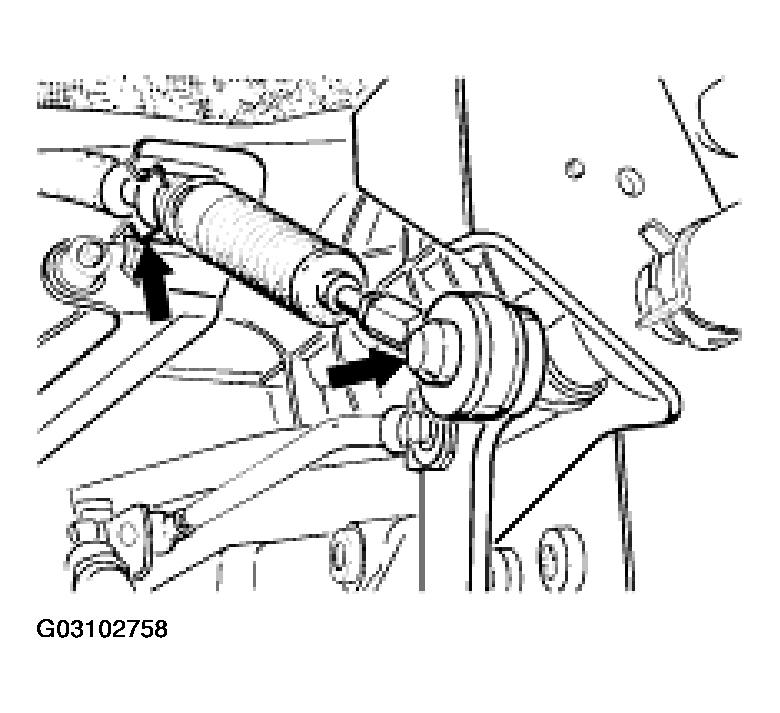

- Detach selector lever cable from deflection lever and transmission support.
- Place transmission jack under the transmission.
- Remove the left transmission support with hydraulic mount.NOTE:
- The fastening nut M12 (C) must not be loosened. The transmission support will otherwise be damaged.
