1992 Porsche 911 AmericaFACTORY OEM SERVICE PROCEDURE
Ground Circuits

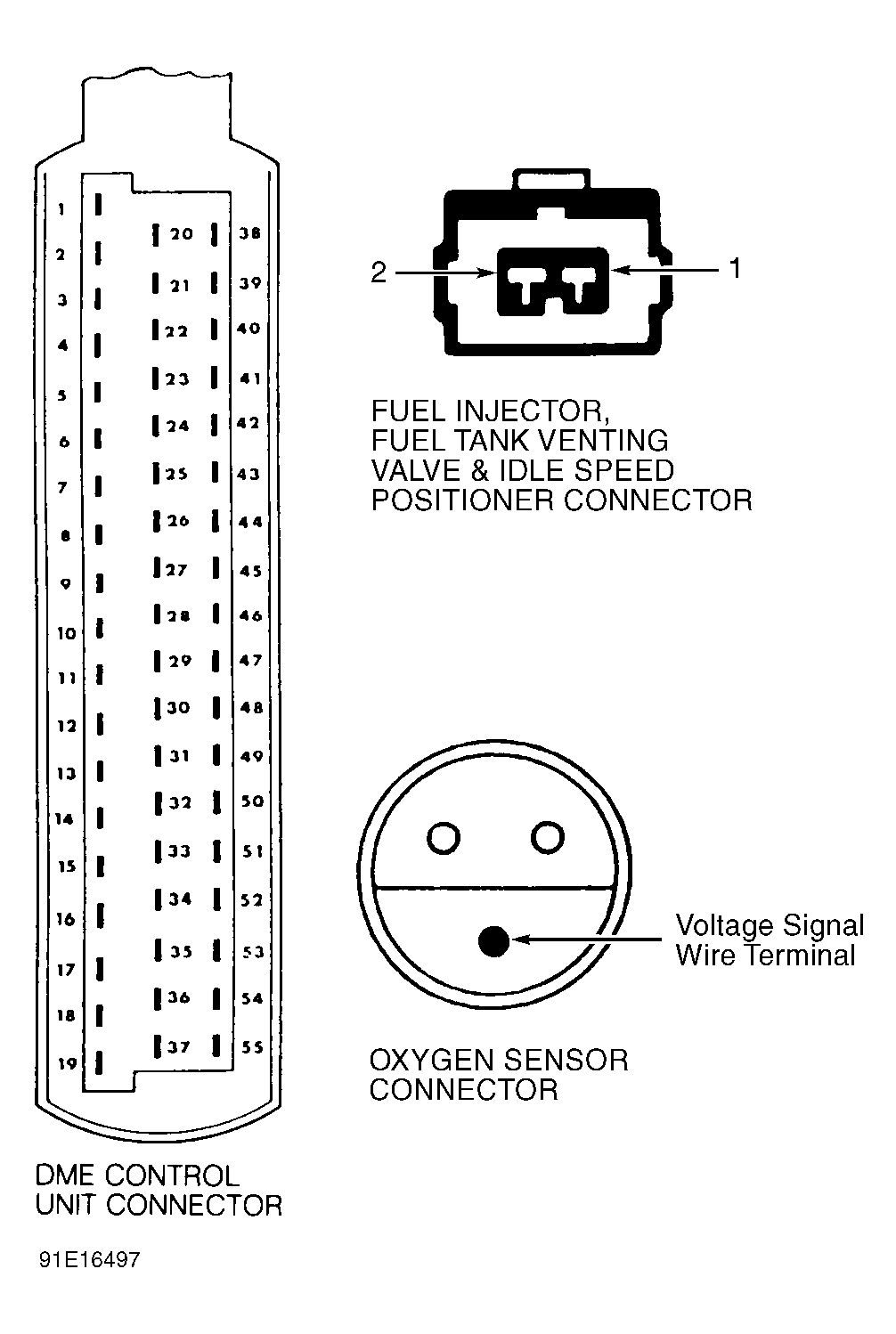

- Use DVOM to check continuity to ground on Digital Motor Electronics (DME) control unit ground circuits at terminals No. 14, 19, 24 and 30. See Figure . See WIRING DIAGRAMS article in the ENGINE PERFORMANCE Section. Ensure ohmmeter reading is zero ohm.
- If reading is not zero ohm, repair open ground circuit. Check DME ground wires on cylinder No. 1 intake pipe and fuel filter mount. Check ground strap between body and transmission/engine. Ensure all electrical connections are securely attached and free of corrosion.
