2010 Pontiac G5 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Install a NEW O-ring seal (3) onto the fuel sender.
- Install the fuel sender assembly (2) into the fuel tank far enough to connect the vapor line quick connect fitting on the underside of the sender cover.

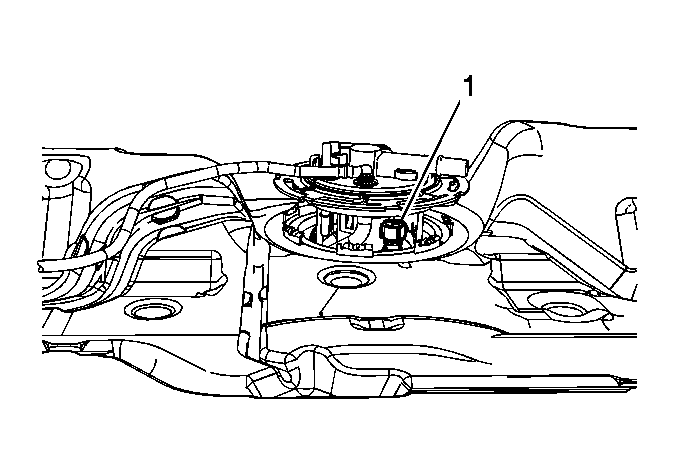

- Connect the vapor line quick connect fitting (1). Refer to Plastic Collar Quick Connect Fitting Service .
- Align the cover "paddle" or anti-rotation feature with the corresponding feature in the top of the fuel tank.
- Slowly apply pressure to the top of the spring loaded sender cover until the sender aligns flush with the surface of the tank.
