2010 Pontiac G5 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

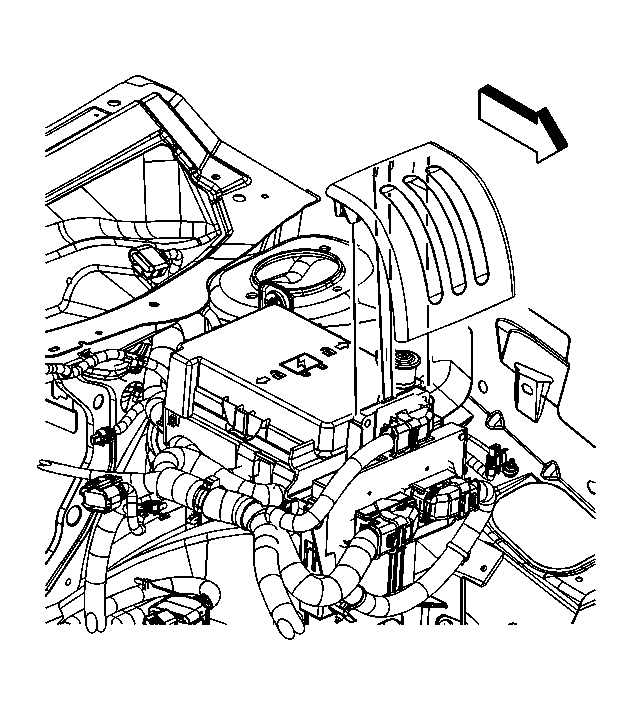

    Fig 1: View Of Engine Control Module (ECM) Cover
    GM1656931Courtesy of GENERAL MOTORS CORP.
  1. Using a scan tool, retrieve the percentage of remaining engine oil. Record the remaining engine oil life.
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Remove the engine control module cover.

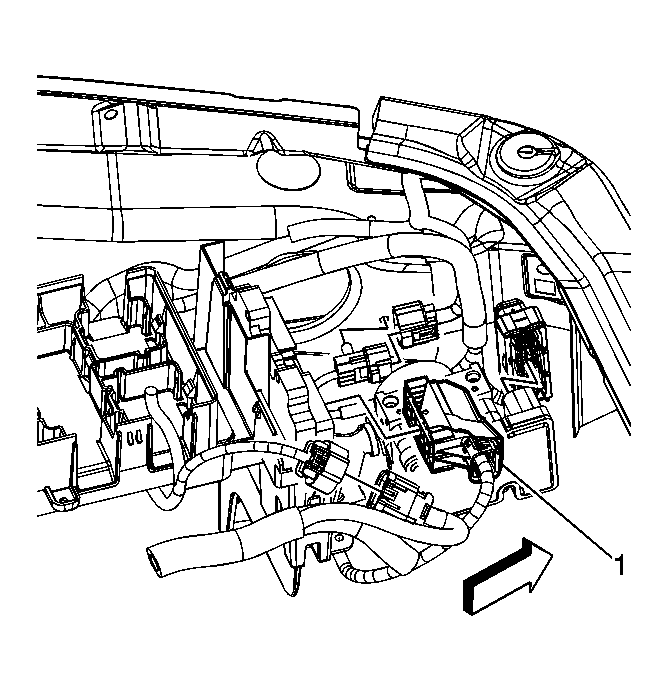

    4. Fig 2: View Of Body Wiring Harness Electrical Connector
    GM1833664Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the body wiring harness electrical connector (1) from the ECM.

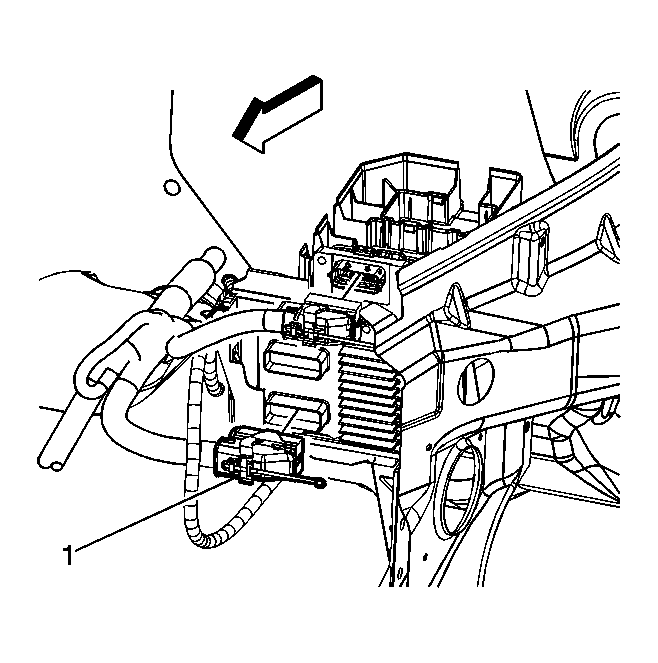

    5. Fig 3: View Of Engine Wiring Harness Electrical Connector
    GM1833663Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the engine wiring harness electrical connector (1) from the ECM.
    6. Fig 4: View of ECM Retaining Tab
    GM1833662Courtesy of GENERAL MOTORS CORP.
