2009 Pontiac Torrent FWD V6-3.4LFACTORY OEM SERVICE PROCEDURE
Intake Manifold
INTAKE MANIFOLD

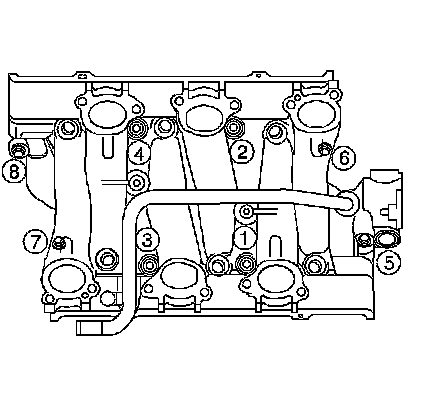

Lower Intake Manifold Bolt - Center
First Pass 7 Nm (62 lb in)
Final Pass 13 Nm (115 lb in)
Lower Intake Manifold Bolt - Corner
First Pass 13 Nm (115 lb in)
Final Pass 25 Nm (18 lb ft)
Upper Intake Manifold Bolt/Stud 25 Nm (18 lb ft)
THROTTLE BODY
Throttle Body Bolt 10 Nm (89 lb in)
Lower Intake Manifold Bolt - Center
First Pass 7 Nm (62 lb in)
Final Pass 13 Nm (115 lb in)
Lower Intake Manifold Bolt - Corner
First Pass 13 Nm (115 lb in)
Final Pass 25 Nm (18 lb ft)
Upper Intake Manifold Bolt/Stud 25 Nm (18 lb ft)
THROTTLE BODY
Throttle Body Bolt 10 Nm (89 lb in)
