2009 Pontiac Torrent FWD V6-3.4LFACTORY OEM SERVICE PROCEDURE
Air Cleaner Housing: Service and Repair
Air Cleaner Assembly Replacement
Removal Procedure
1. Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement (Service and Repair).

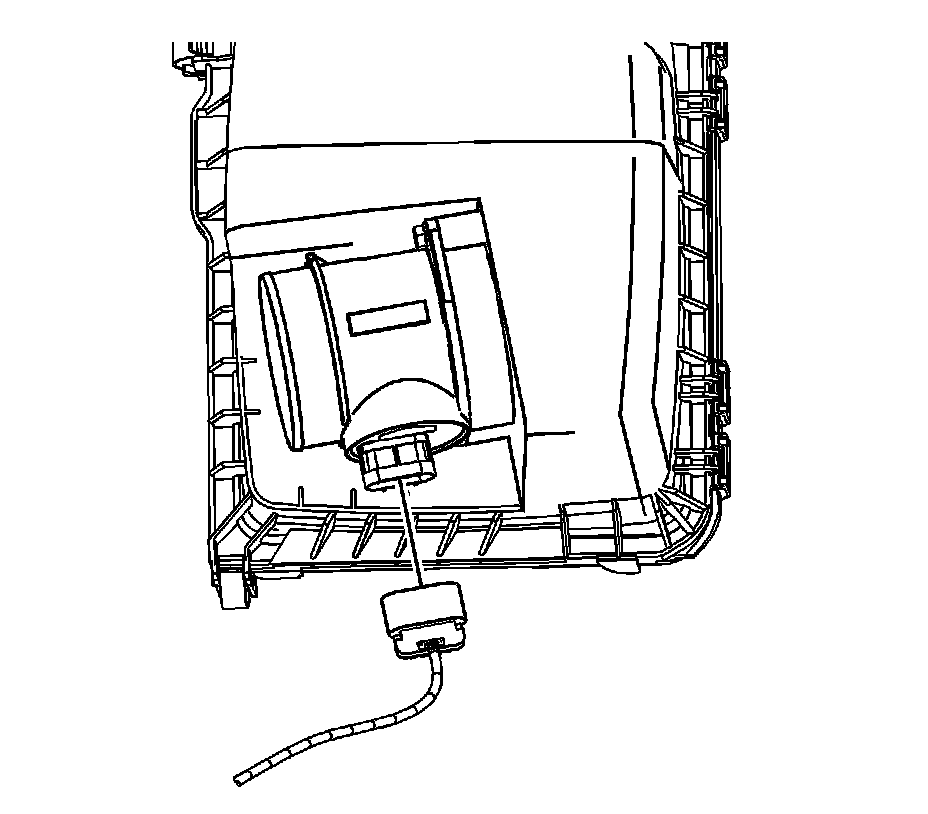

2. Disconnect the mass air flow (MAF) sensor electrical connector.

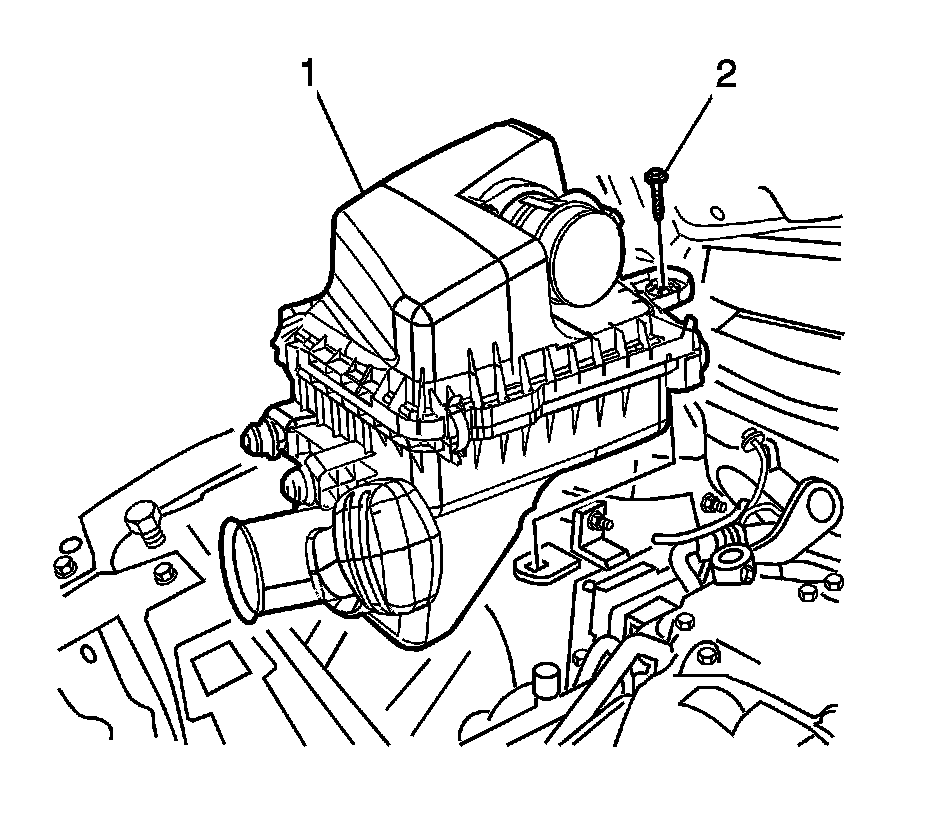

3. Remove the air cleaner assembly bolt (2).
4. Remove the air cleaner assembly (1).
5. If replacing the air cleaner assembly, remove the MAF sensor. Refer to Mass Airflow Sensor Replacement (Service and Repair).
Installation Procedure
1. If the air cleaner assembly (1) was replaced, install the MAF sensor. Refer to Mass Airflow Sensor Replacement (Service and Repair).
2. Install the air cleaner assembly (1) by inserting the two rubber alignment grommets into the radiator core support behind the right headlight.
Caution: Refer to Fastener Caution (Fastener Caution).
3. Install the air cleaner assembly attachment bolt (2).
Tighten the bolt to 10 Nm (89 lb in).
4. Connect the MAF sensor electrical connector.
5. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement (Service and Repair).
