2009 Pontiac Torrent FWD V6-3.4LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair

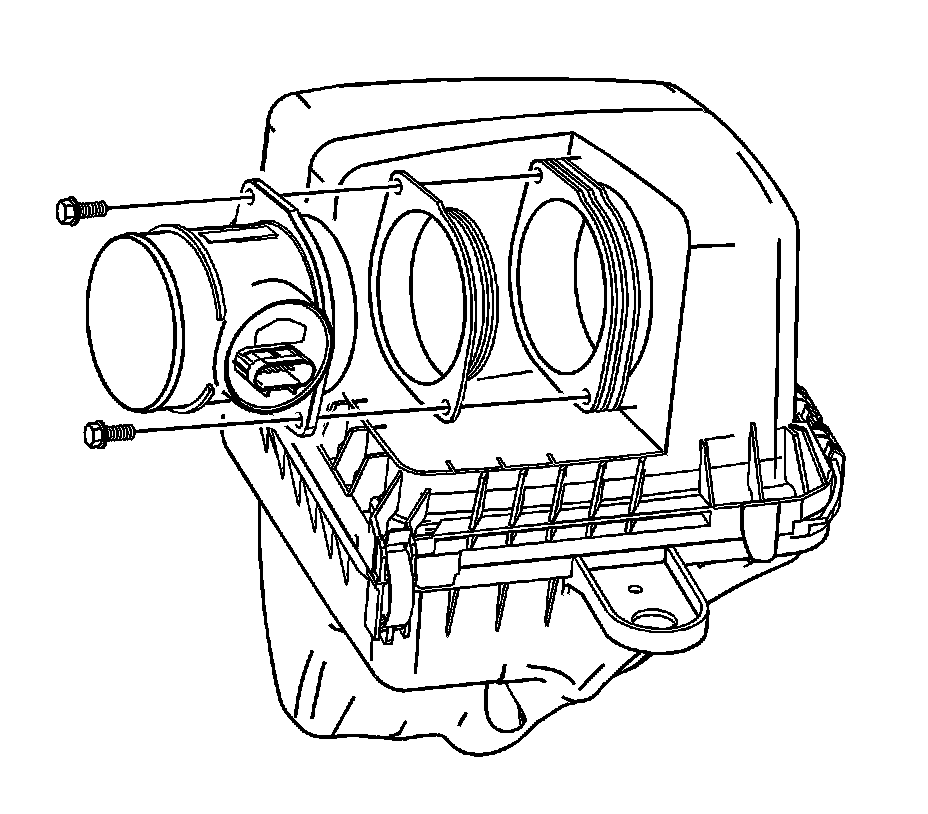

Mass Airflow Sensor Replacement
Removal Procedure
1. Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement (Service and Repair).
2. Disconnect the mass air flow (MAF) sensor electrical connector.
3. Remove the screws that retain the MAF to the air cleaner assembly.
4. Remove the MAF from the air cleaner assembly.
5. Remove the MAF to air cleaner assembly seal.
Installation Procedure
1. Install the seal to the MAF.
2. Install the MAF to the air cleaner assembly.
Caution: Refer to Fastener Caution (Fastener Caution).
3. Install the screws that retain the MAF to the air cleaner assembly.
Tighten the screws to 4 Nm (35 lb in).
4. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement (Service and Repair)
