Instrument Panel/Center Console Component Views

Instrument Panel/Center Console Component Views

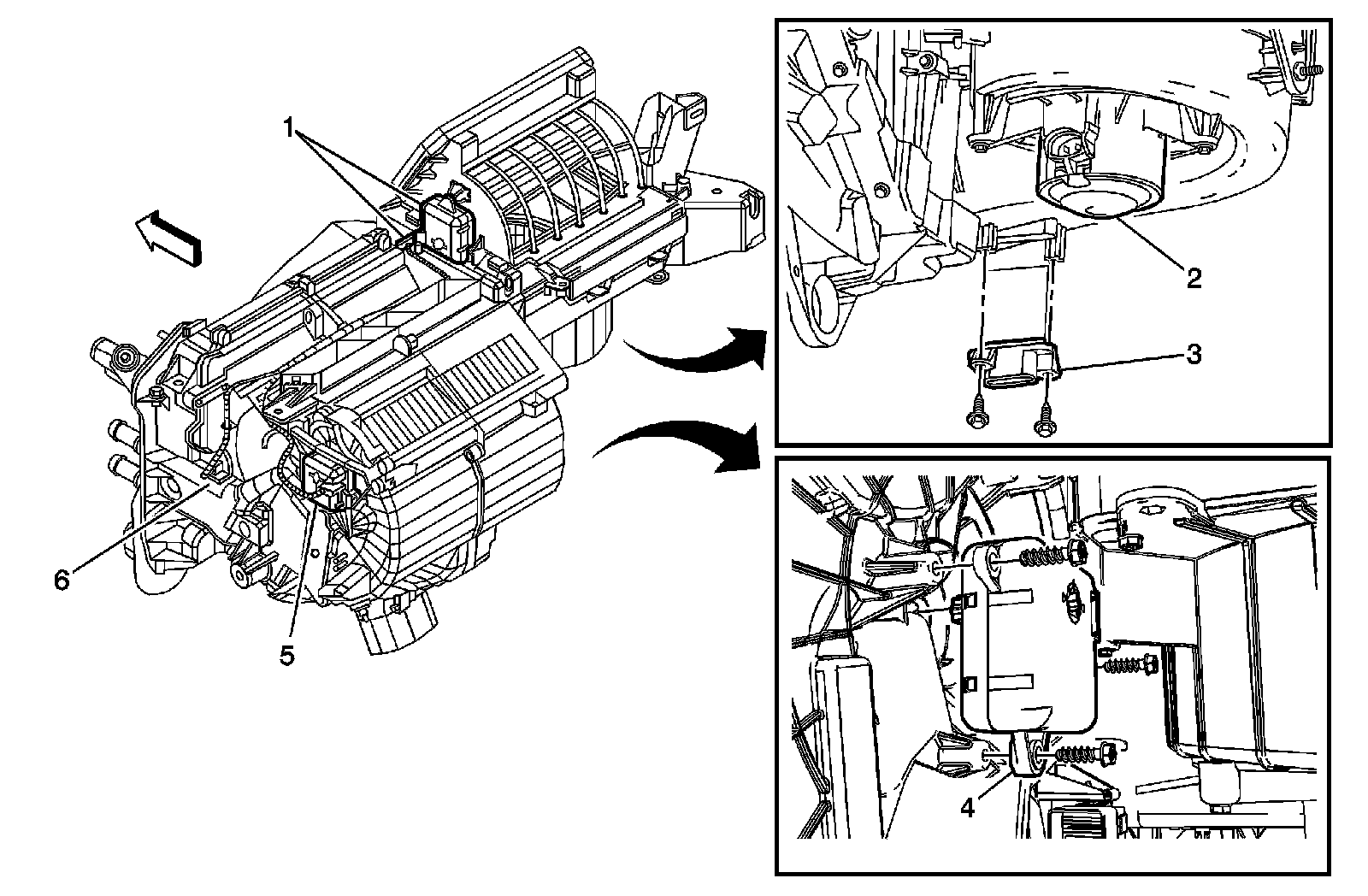

Front HVAC Module Components




1 - Recirculation Actuator
2 - Blower Motor
3 - Blower Motor Control Module
4 - Air Temperature Actuator
5 - Mode Actuator
6 - Evaporator Temperature Sensor

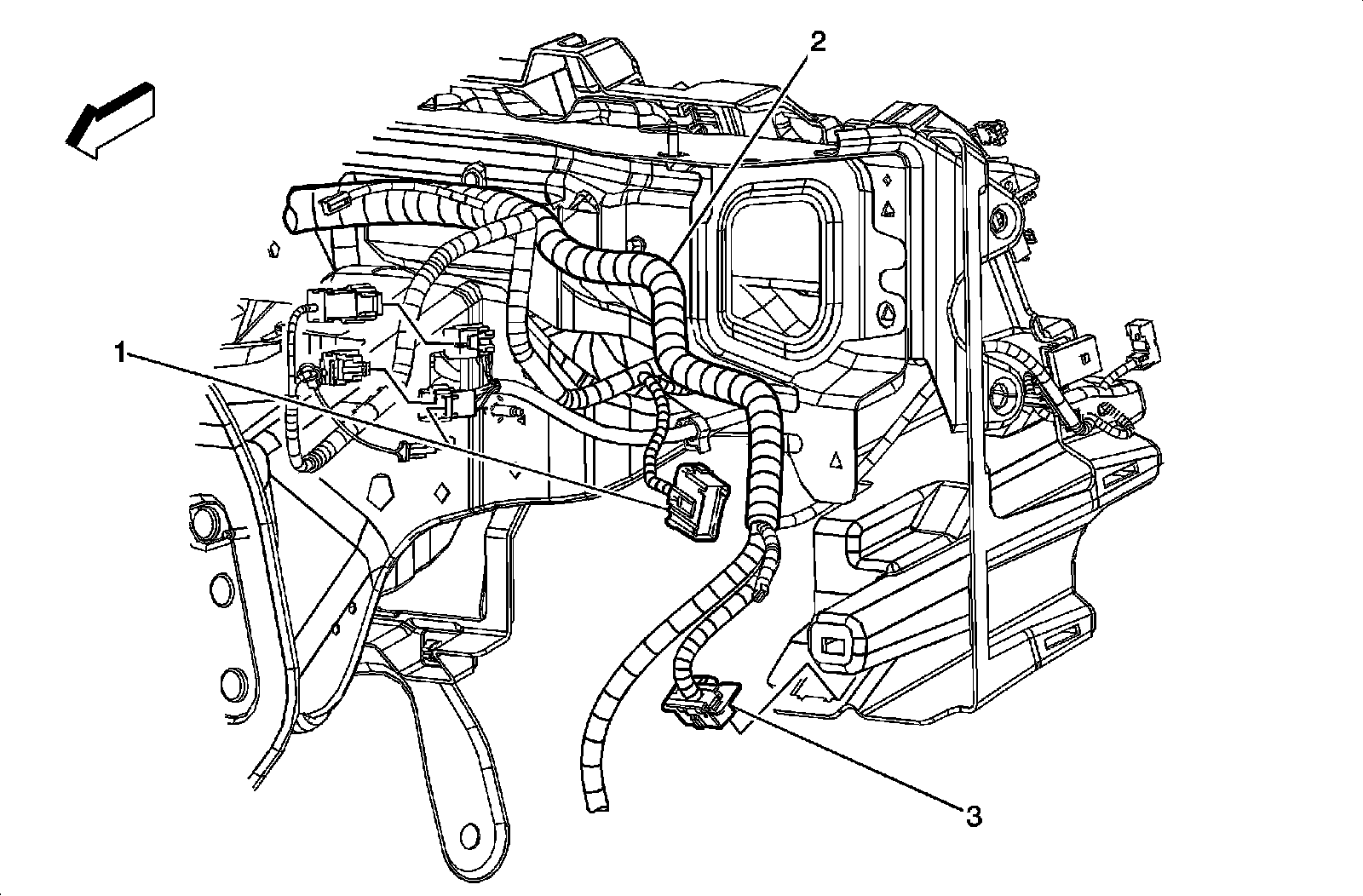

Lower Left Side Instrument Panel Components




1 - JX200
2 - Instrument Panel Harness
3 - Data Link Connector (DLC)

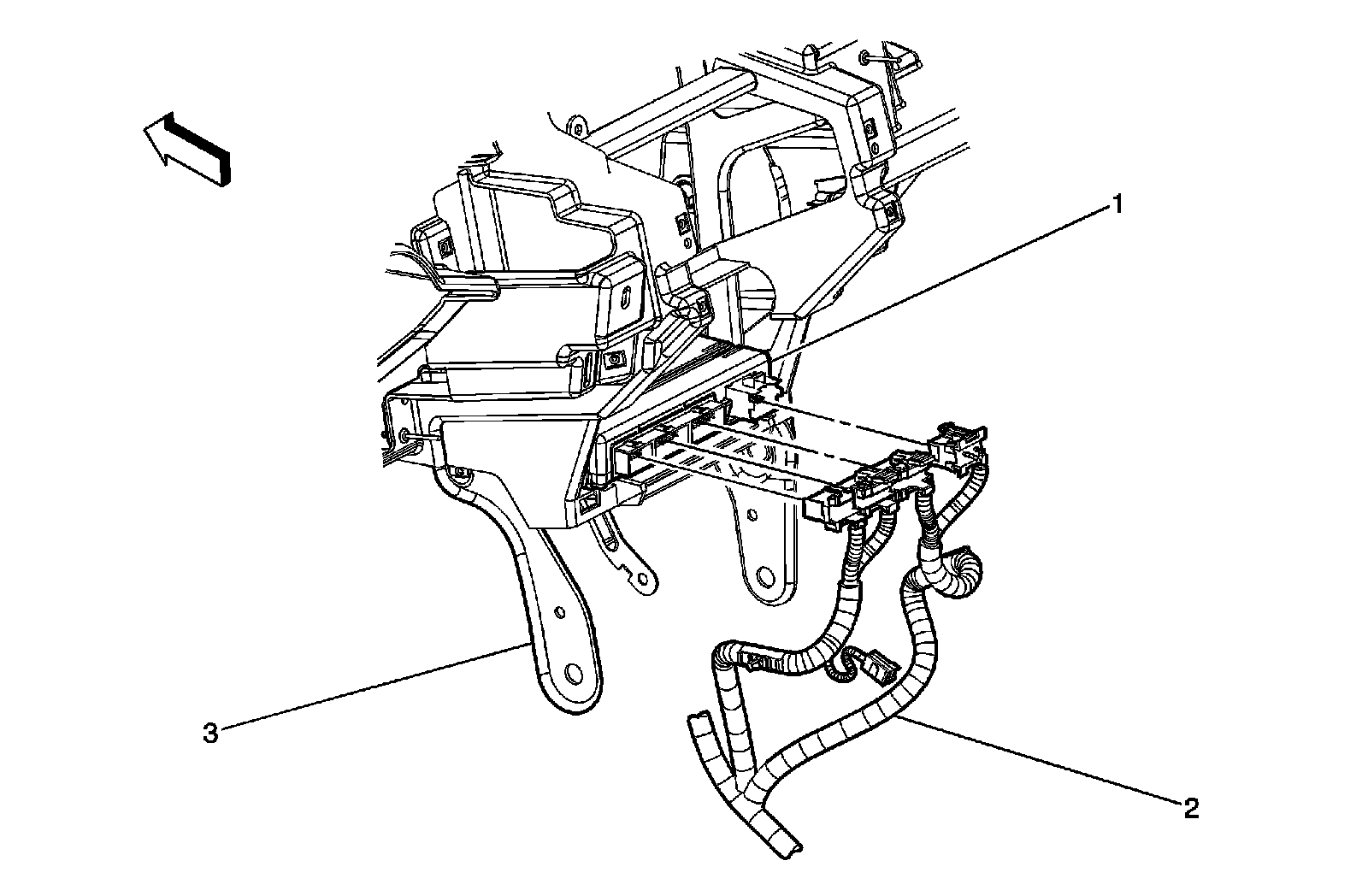

Lower Center Instrument Panel Components




1 - Body Control Module (BCM)
2 - Instrument Panel Harness
3 - Center Instrument Panel Support

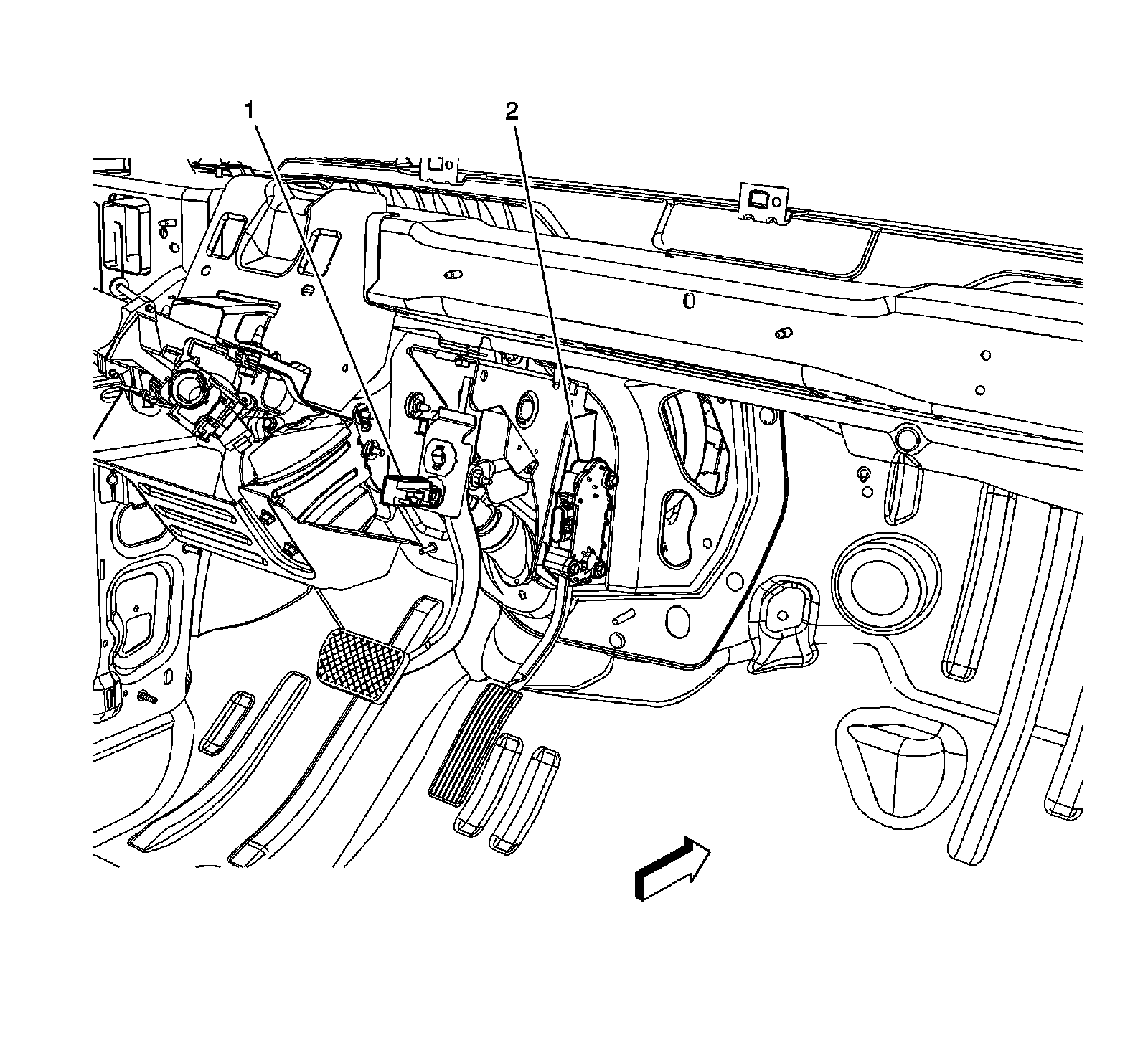

Pedal Assembly Components




1 - Brake Pedal Position (BPP) Sensor
2 - Accelerator Pedal Position (APP) Sensor

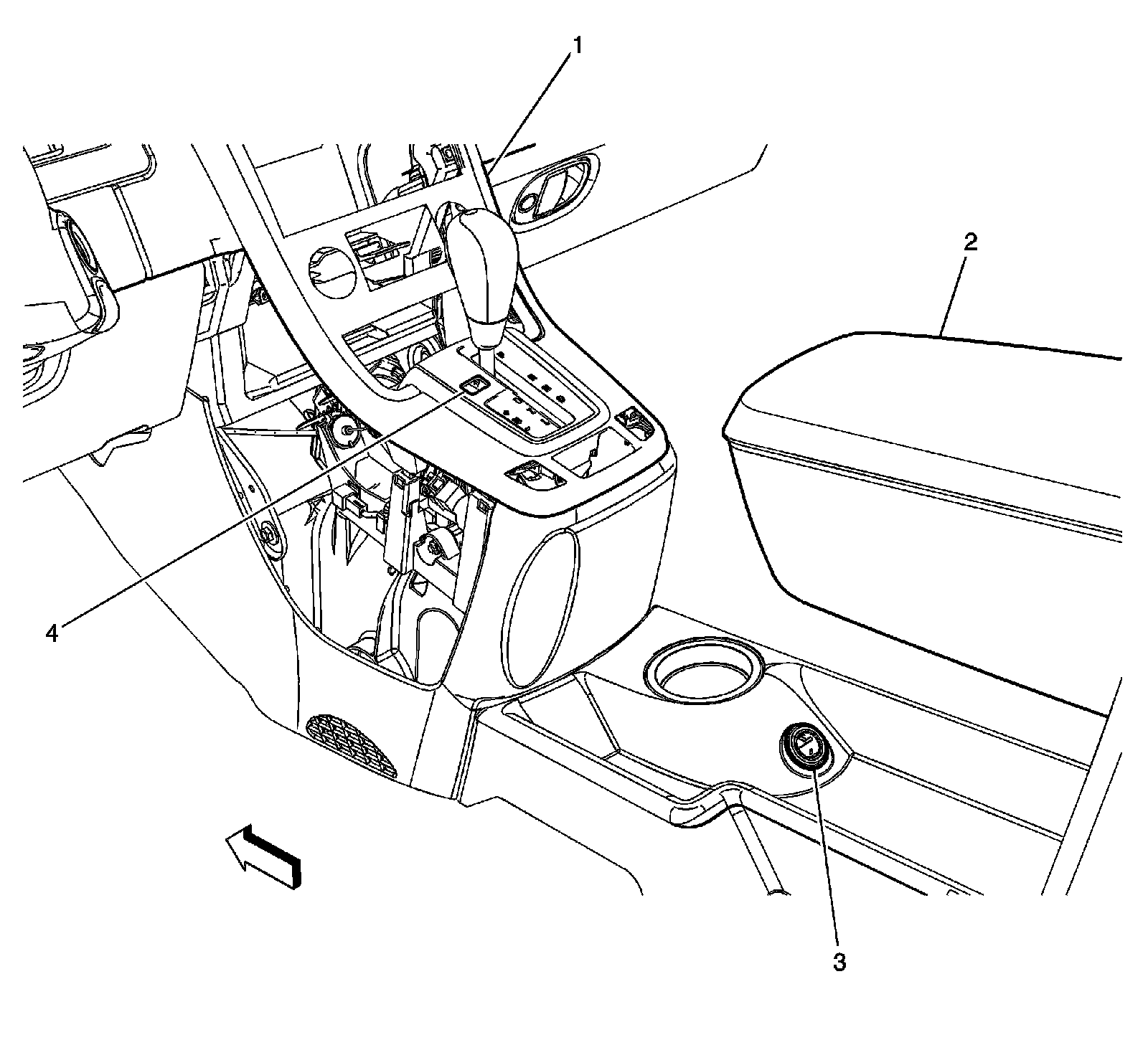

Shift Lever Components




1 - Instrument Panel Trim
2 - Console Arm Rest
3 - Cigar Lighter (DT4)/Accessory Power Outlet - Center Console 2 (without DT4)

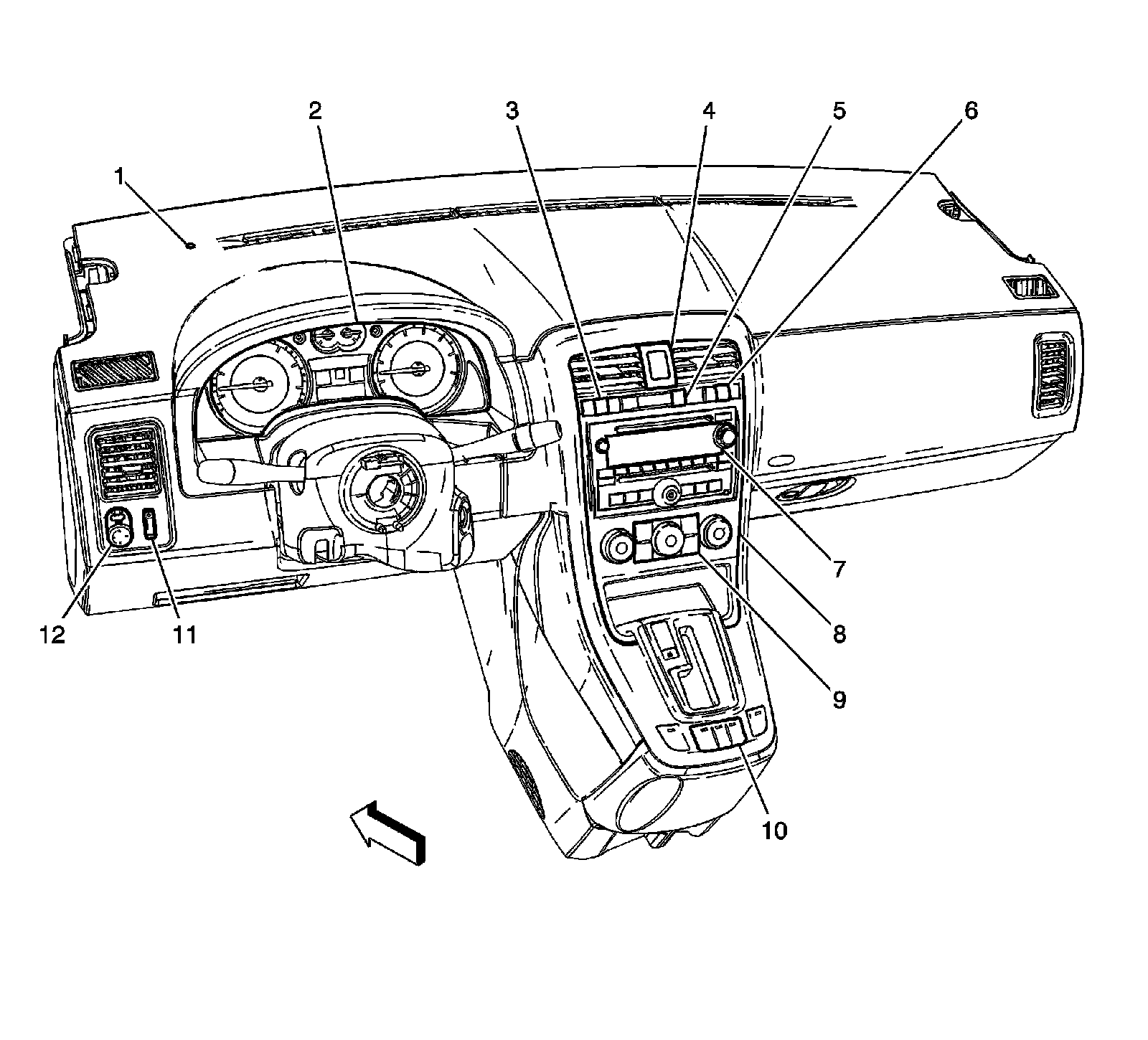

Instrument Panel and Console Components 1 of 3




1 - Ambient Light Sensor
2 - Instrument Panel Cluster (IPC)
3 - Driver Information Center (DIC) Switch
4 - Hazard Warning Switch
5 - Inflatable Restraint I/P Module Indicator
6 - Rear Window Wiper/Washer/Fog Lamp Switch
7 - Radio
8 - HVAC Control Module
9 - Heated Seat Switch - Driver (KA1), Heated Seat Switch - Passenger (KA1)
10 - Window Switch - Driver
11 - Traction Control Switch (TCS)
12 - Headlamp Dimmer Switch
13 - Outside Rearview Mirror Switch

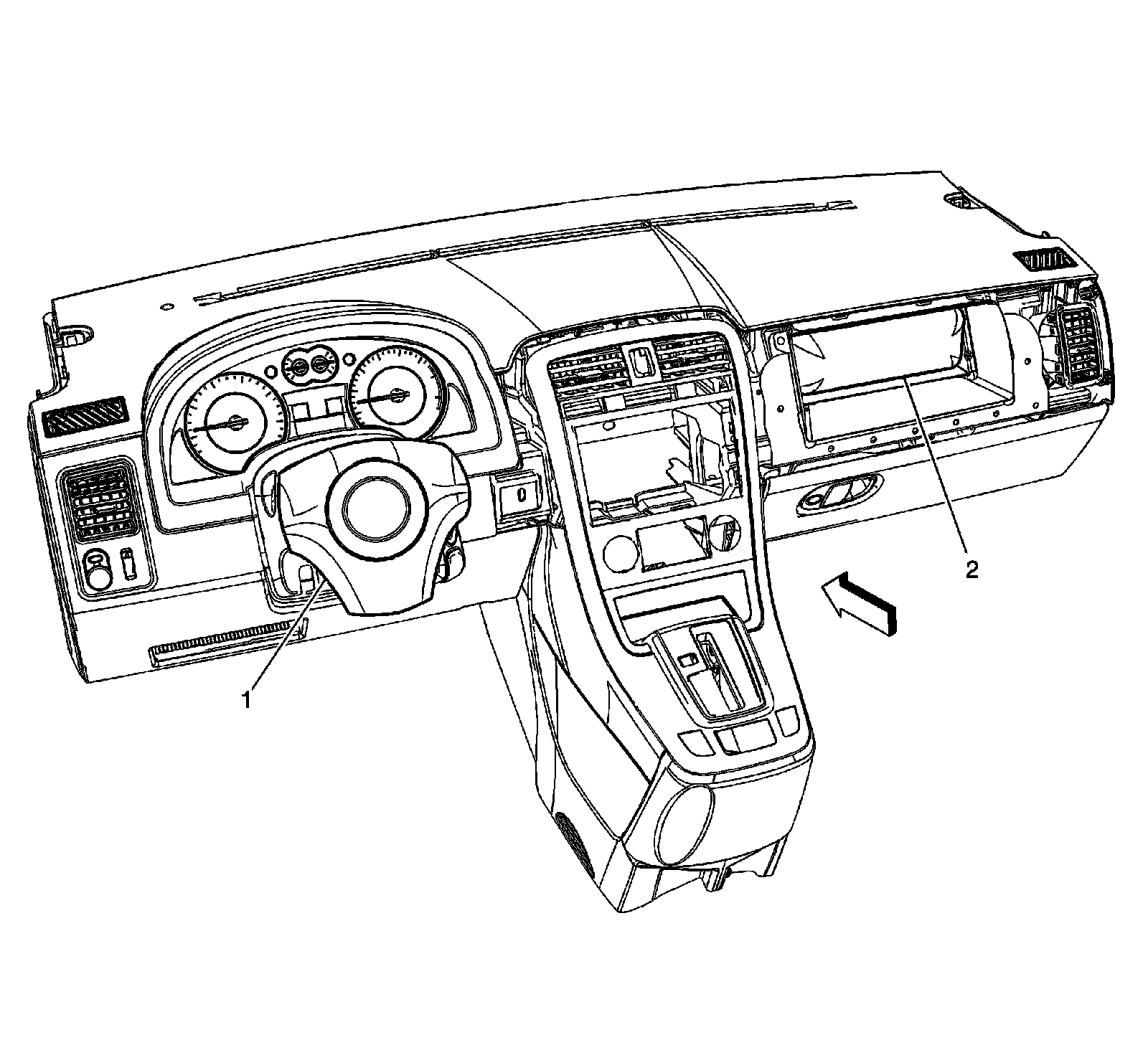

Instrument Panel and Console Components 2 of 3




1 - Inflatable Restraint Steering Wheel Module
2 - Inflatable Restraint I/P Module

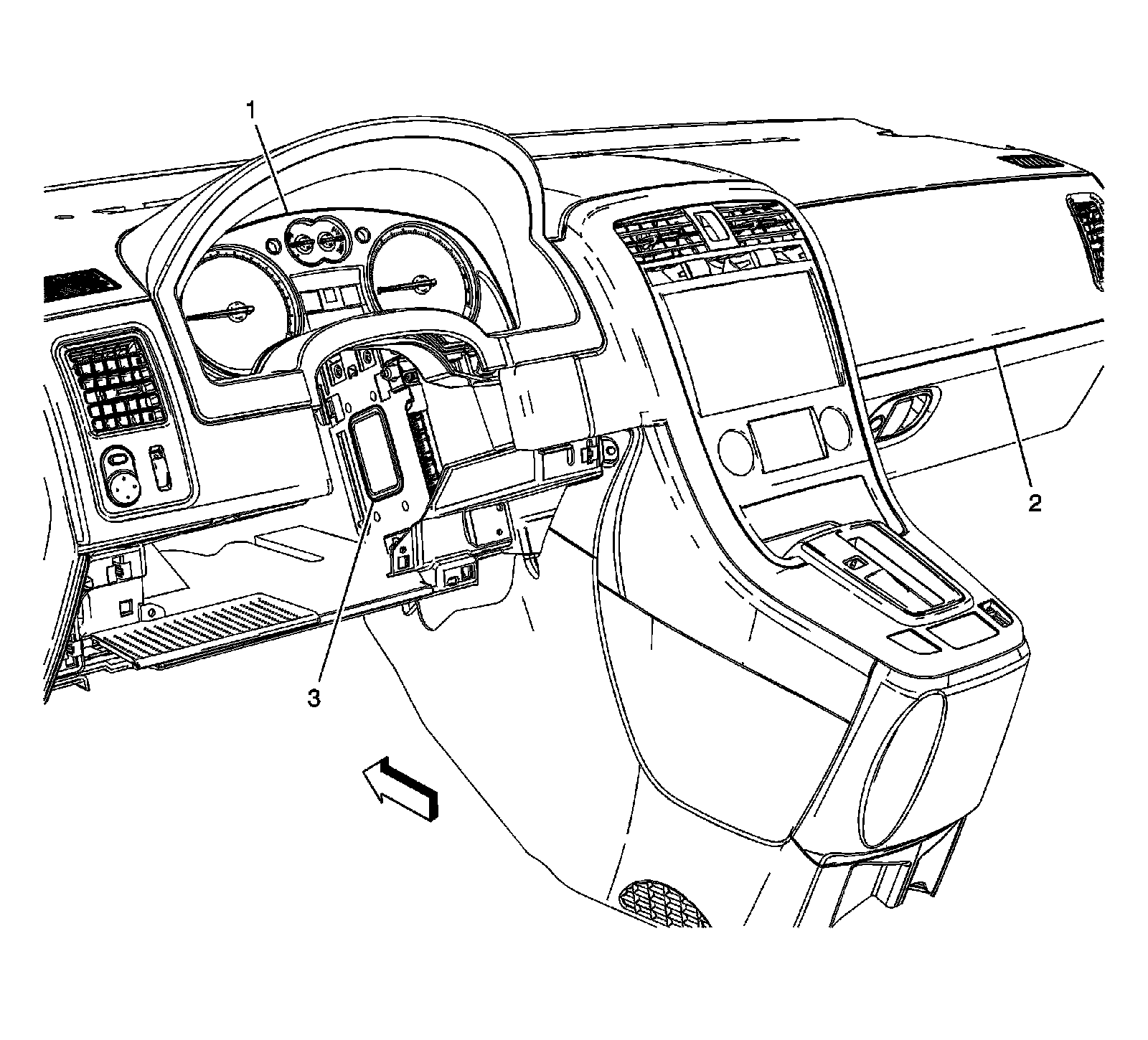

Instrument Panel and Console Components 3 of 3




1 - Instrument Panel Cluster (IPC)
2 - Instrument Panel Trim
3 - Vehicle Communication Interface Module (VCIM) (UE1)

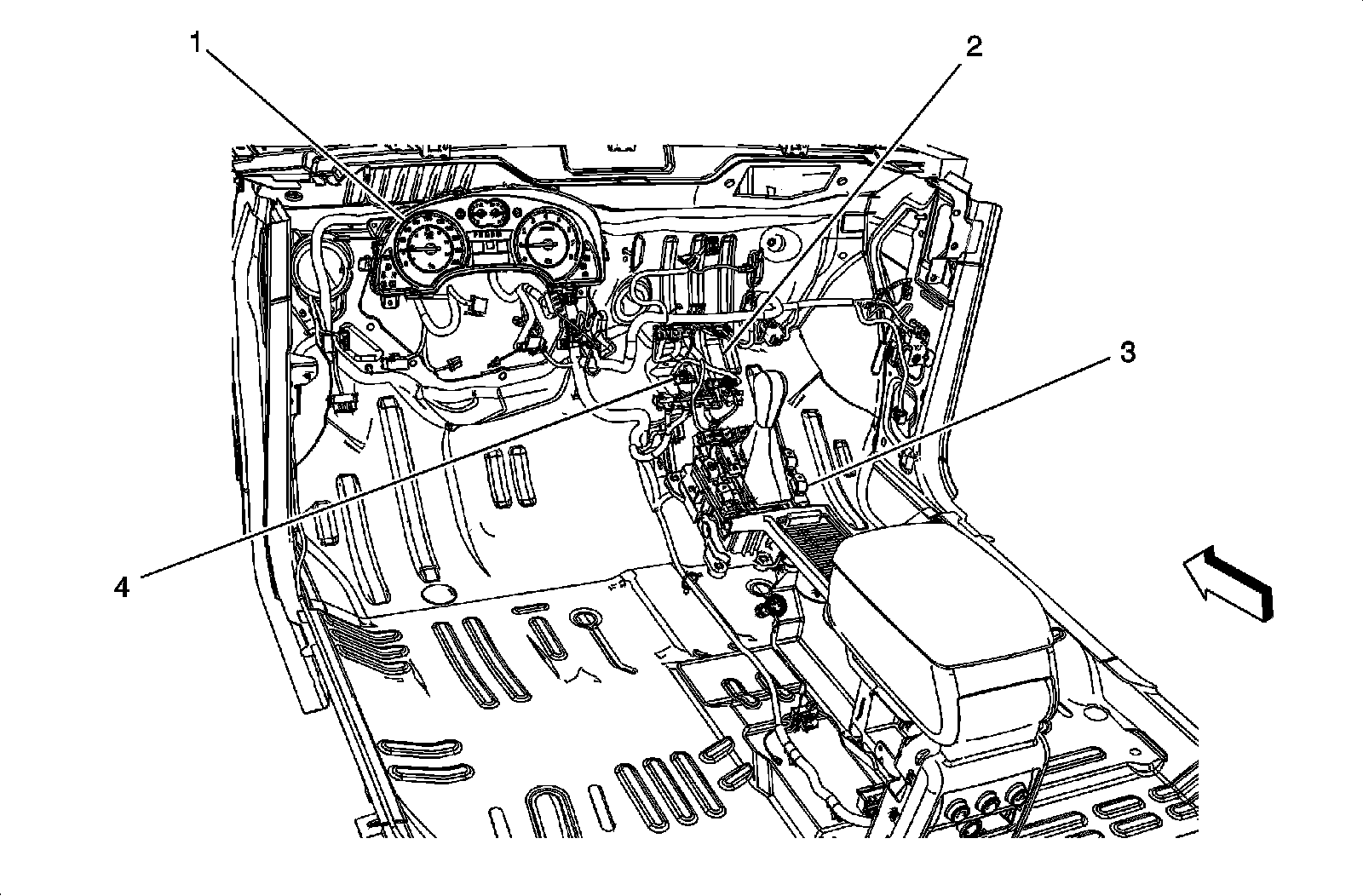

I/P Harness




1 - Instrument Panel Cluster (IPC)
2 - Fuse Block - I/P
3 - Automatic Transmission Shifter
4 - Body Control Module (BCM)

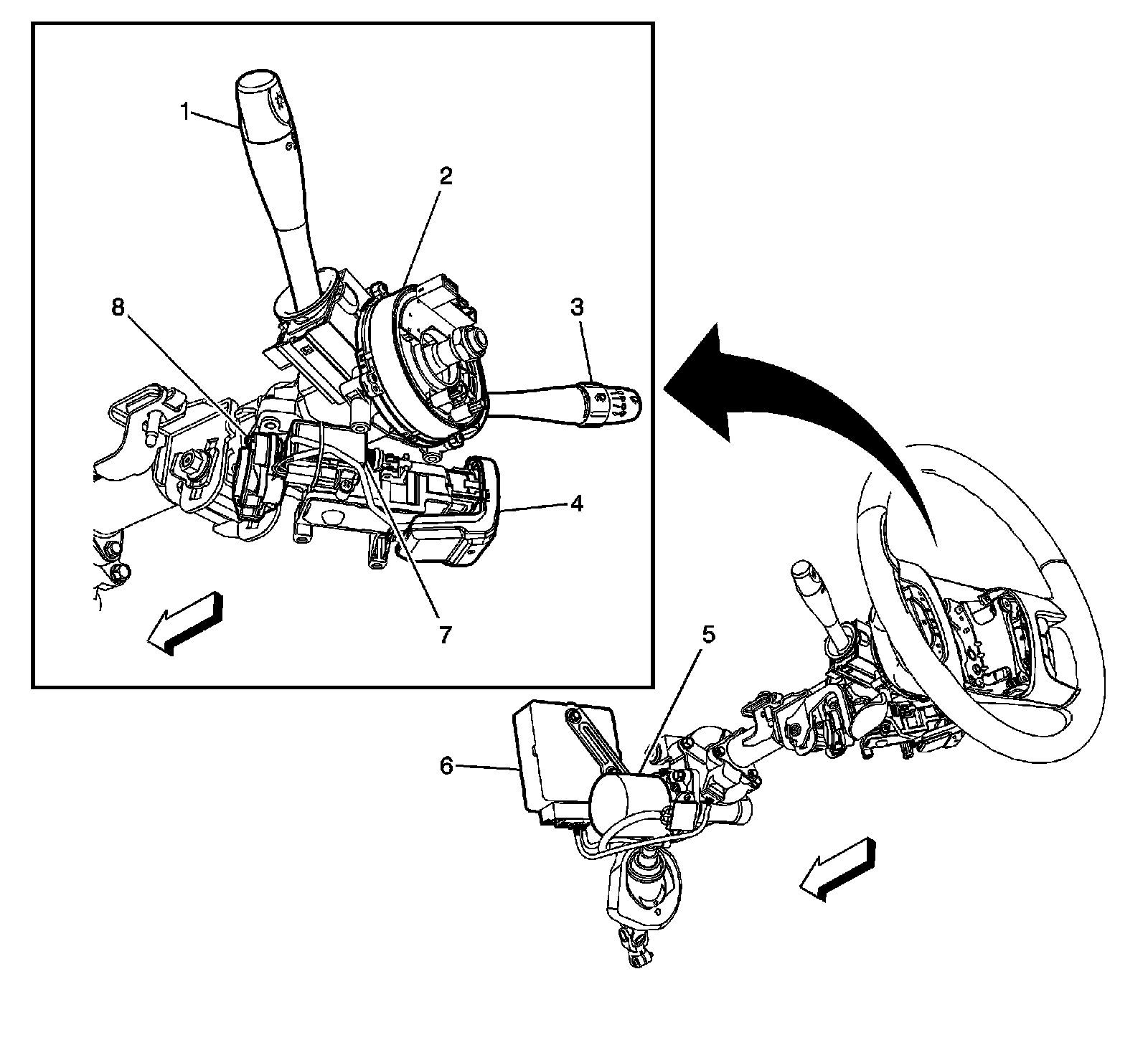

Steering Column Components




1 - Turn Signal/Multifunction Switch
2 - Inflatable Restraint Steering Wheel Module Coil
3 - Windshield Wiper/Washer Switch
4 - Theft Deterent Module (TDM)
5 - Electric Power Steering (EPS) Motor (LNJ)
6 - Electric Power Steering (EPS) Module (LNJ)
7 - Ignition Lock Cylinder Control Solenoid
8 - Ignition Switch

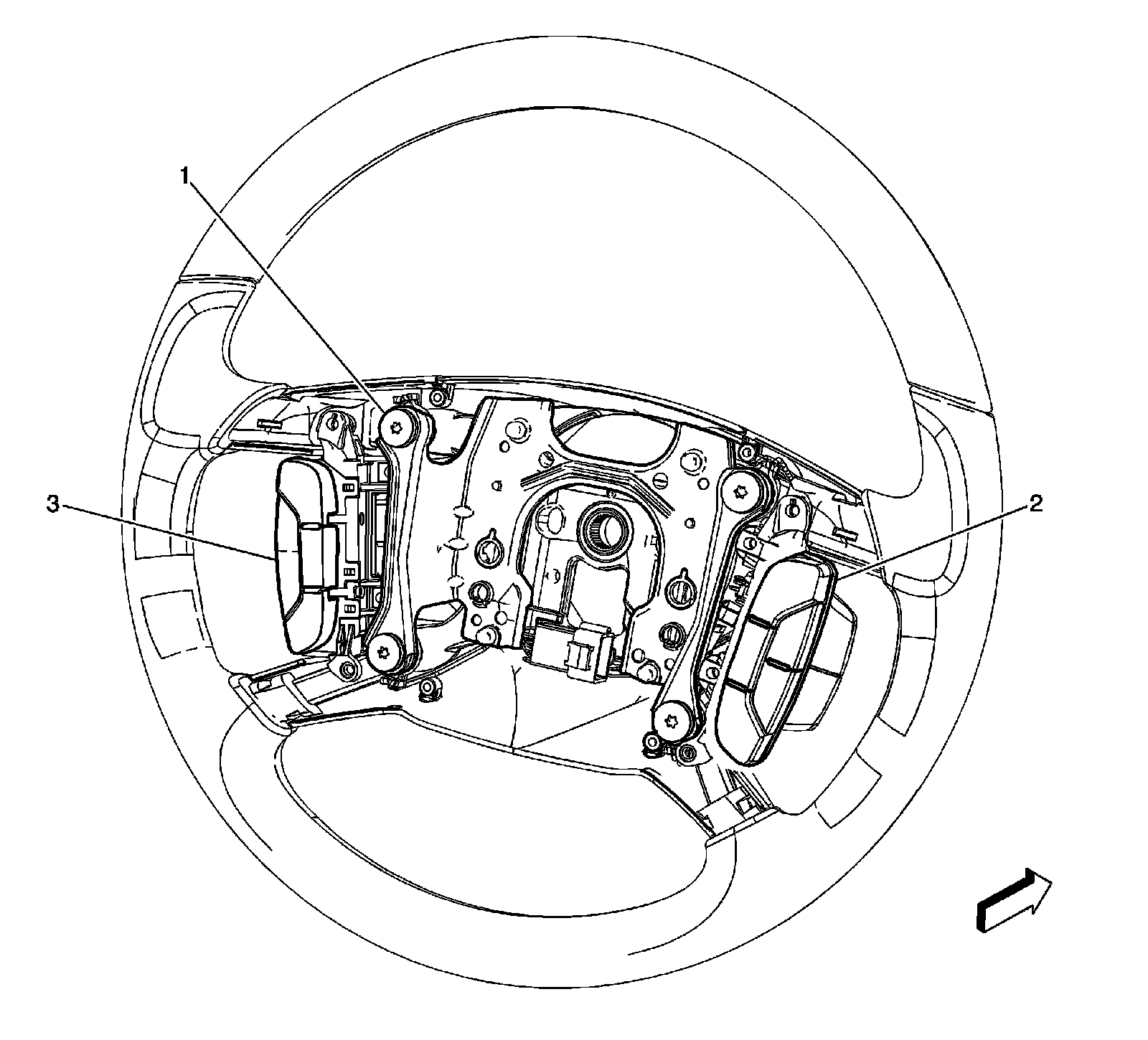

Steering Wheel Components




1 - Horn Switch
2 - Steering Wheel Control Switch - Right (UK3)
3 - Steering Wheel Control Switch - Left (K34)

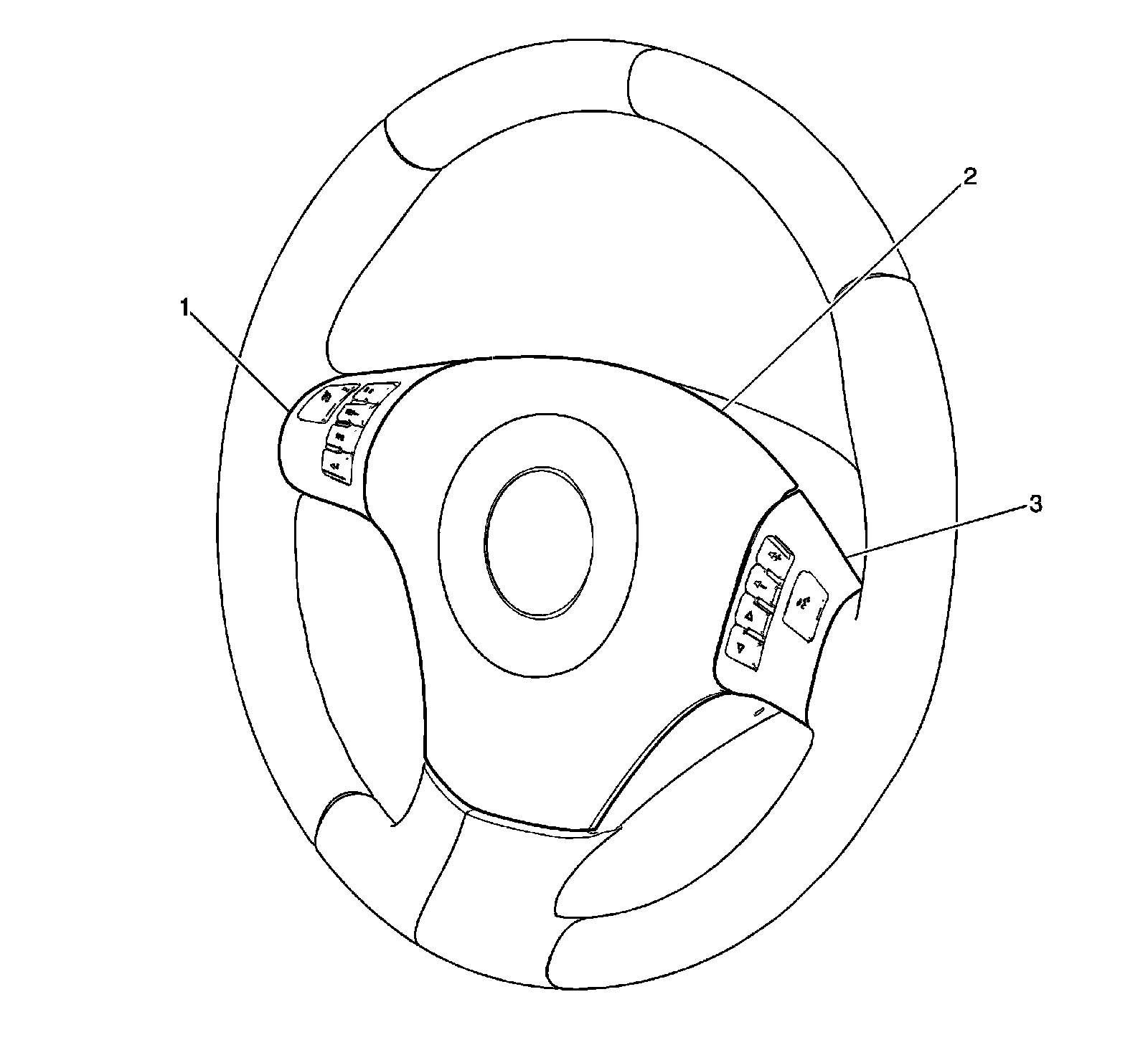

Steering Wheel (Pontiac)




1 - Steering Wheel Control Switch - Left (K34)
2 - Inflatable Restraint Steering Wheel Module
3 - Steering Wheel Control Switch - Right (UK3)

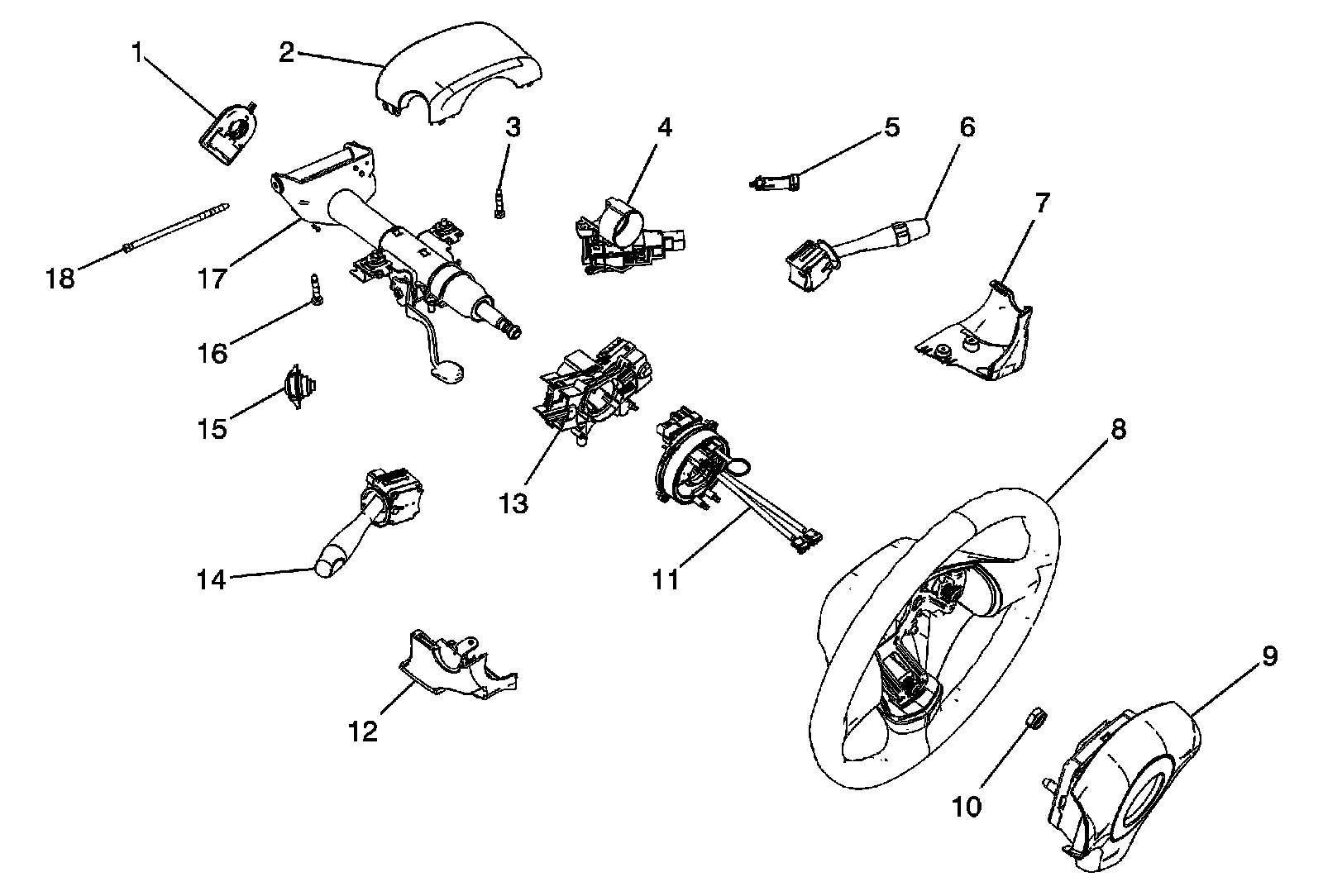

Steering Column Disassembled View




1 - Steering Angle Sensor (LY7)
2 - Steering Column Upper Trim Cover
3 - Steering Column Upper Bolt
4 - Ignition Switch Housing
5 - Ignition Lock Cylinder
6 - Windshield Wiper/Washer Switch
7 - Steering Column Lower RH Trim Cover
8 - Steering Wheel
9 - Inflatable Restraint Steering Wheel Module
10 - Steering Wheel Nut
11 - Inflatable Restraint Steering Wheel Module Coil
12 - Steering Column Lower LH Trim Cover
13 - Turn Signal/Multifunction Switch Housing
14 - Turn Signal/Multifunction Switch
15 - Ignition Switch
16 - Steering Column Upper Bolt
17 - Steering Column
18 - Steering Column Lower Bolt

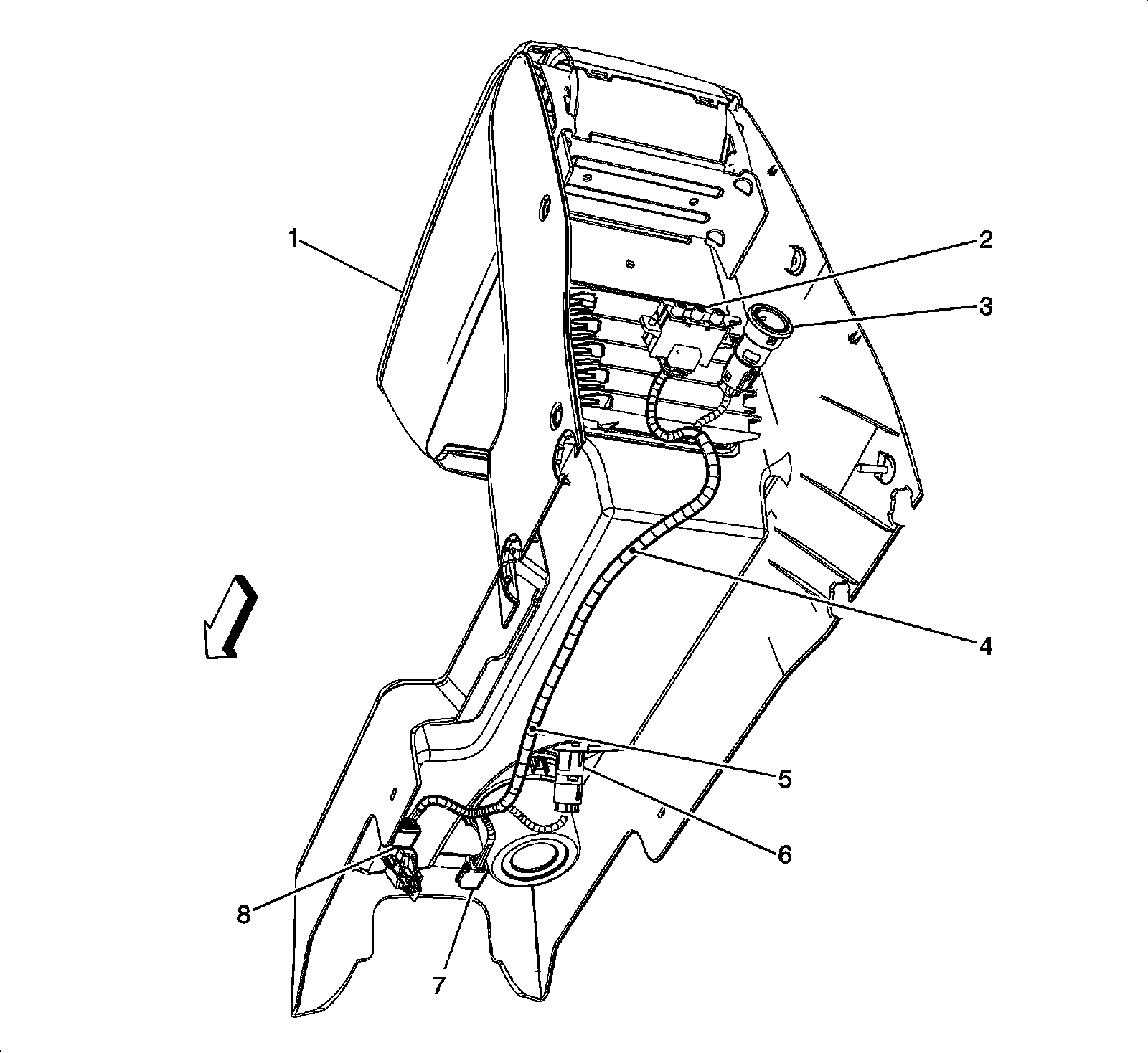

Console Harness




1 - Arm Rest
2 - Audio/Video Adaptor (UUC)
3 - Accessory Power Outlet - Center Console 1
4 - J301
5 - J300
6 - Cigar Lighter (DT4)/Accessory Power Outlet - Center Console 2 (without DT4)
7 - X305
8 - X207 (UUC)
