2009 Pontiac Torrent FWD V6-3.4LFACTORY OEM SERVICE PROCEDURE
Front of Vehicle/Engine Compartment Component Views
Front of Vehicle/Engine Compartment Component Views

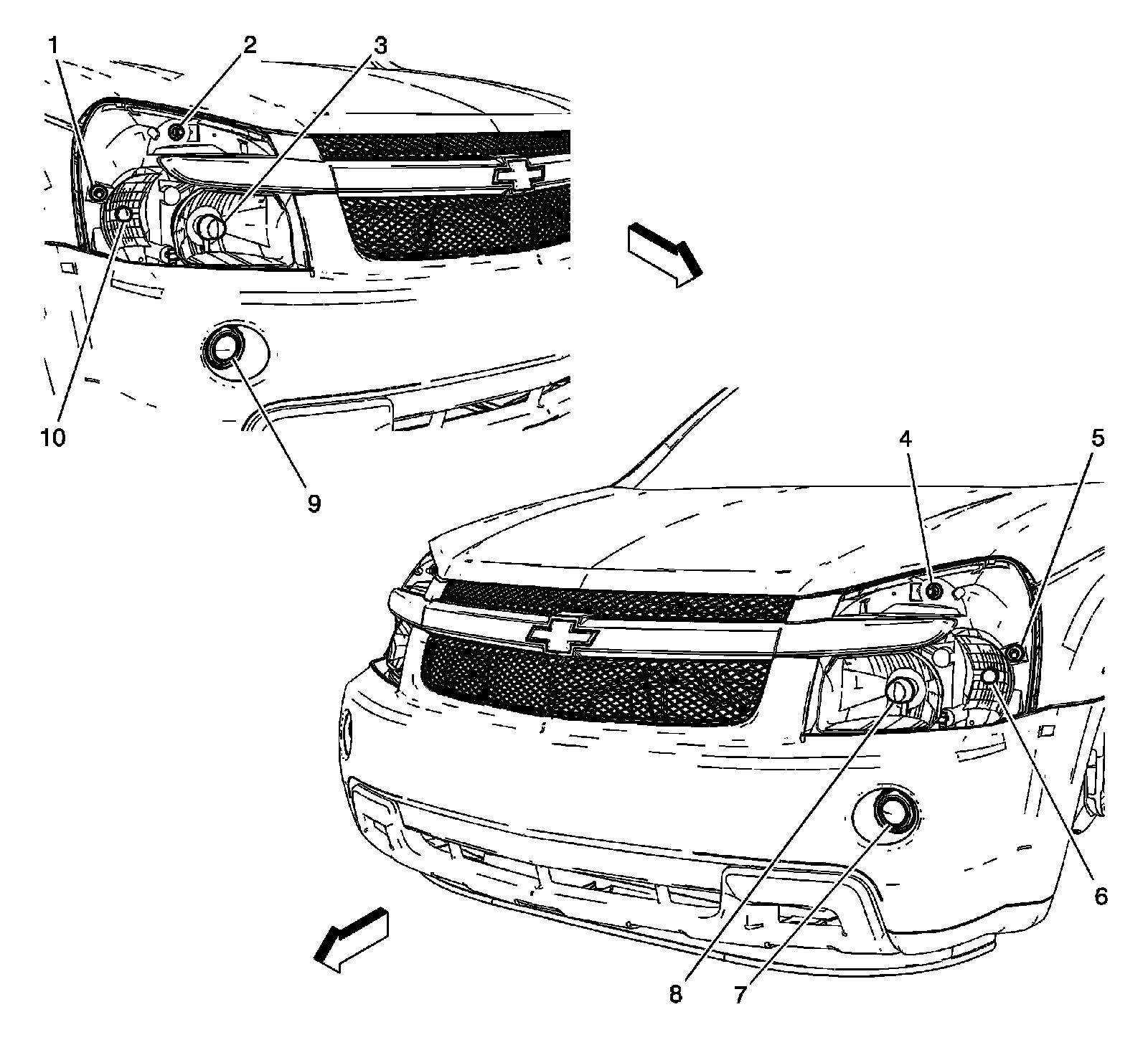

Front Exterior Lighting Components (Chevrolet)
1 - Marker Lamp - Right Front
2 - Park Lamp - Right Front
3 - Headlamp - Right
4 - Park Lamp - Left Front
5 - Marker Lamp - Left Front
6 - Turn Signal Lamp - Left Front
7 - Fog Lamp - Left Front (T96)
8 - Headlamp - Left
9 - Fog Lamp - Right Front (T96)
10 - Turn Signal Lamp - Right Front

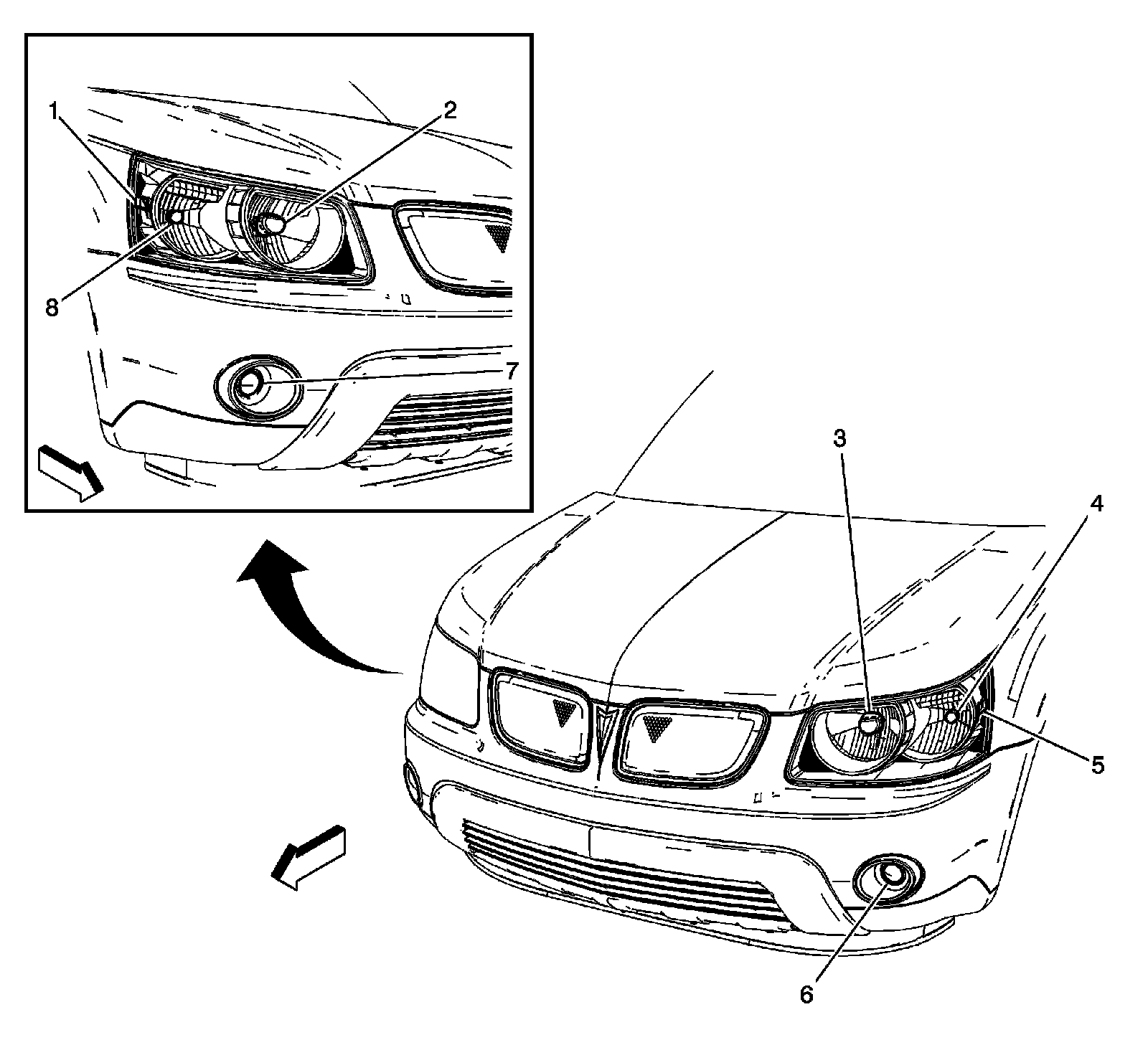

Front Exterior Lighting Components (Pontiac)
1 - Marker Lamp - Right Front
2 - Headlamp - Right
3 - Headlamp - Left
4 - Park/Turn Signal Lamp - Left Front
5 - Marker Lamp - Left Front
6 - Fog Lamp - Left Front (T96)
7 - Fog Lamp - Right Front (T96)
8 - Park/Turn Signal Lamp - Right Front

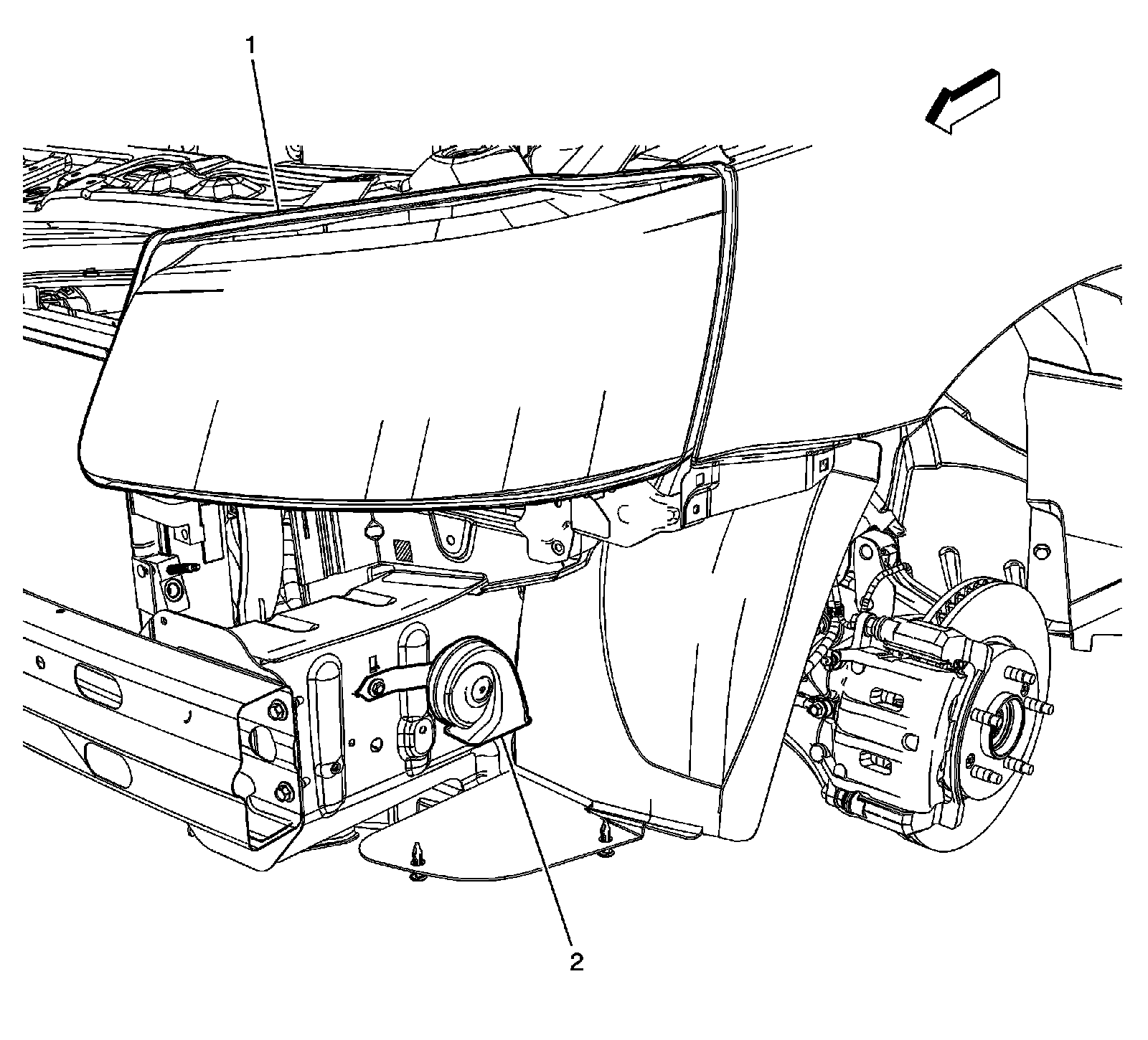

Left Front Frame Rail Components
1 - Headlamp - Left
2 - Horn

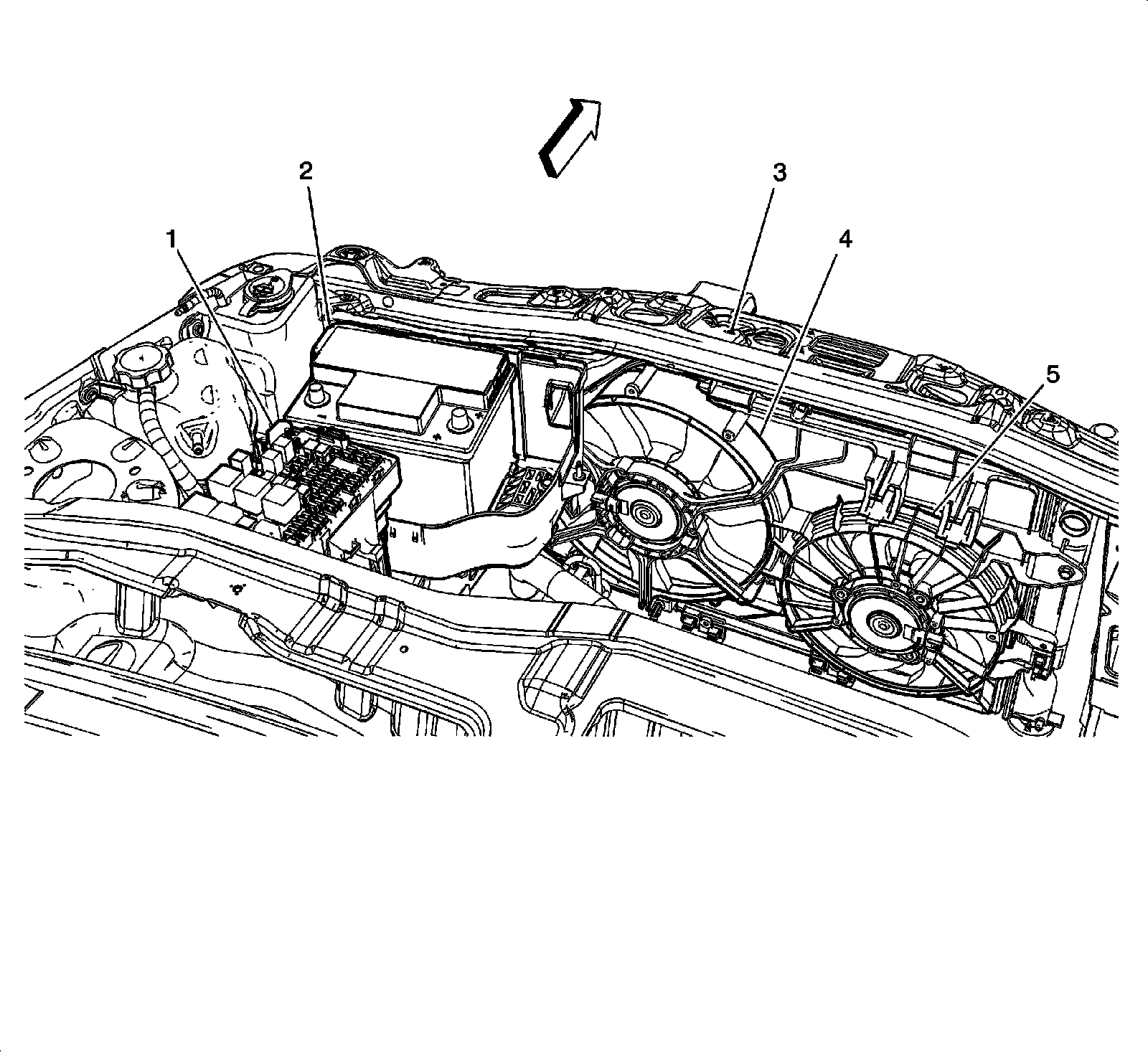

Front Engine Compartment Components
1 - Fuse Block - Underhood
2 - Battery
3 - Hood Ajar Switch (AP3)
4 - Engine Cooling Fan - Left
5 - Engine Cooling Fan - Right

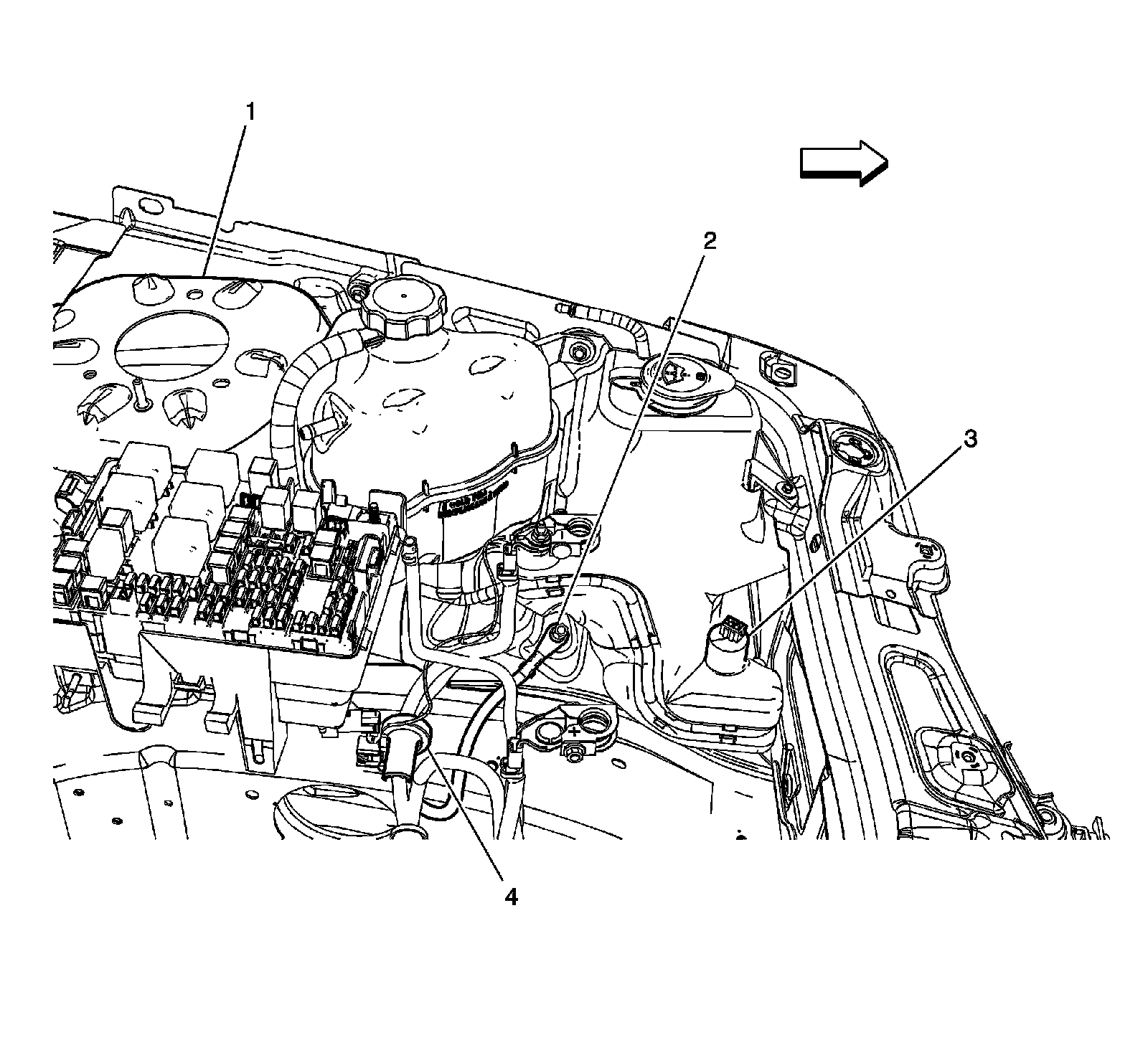

Left Front Engine Compartment Components 1 of 2
1 - Left Front Strut Tower
2 - G103
3 - Windshield Washer Fluid Pump
4 - Battery Current Sensor

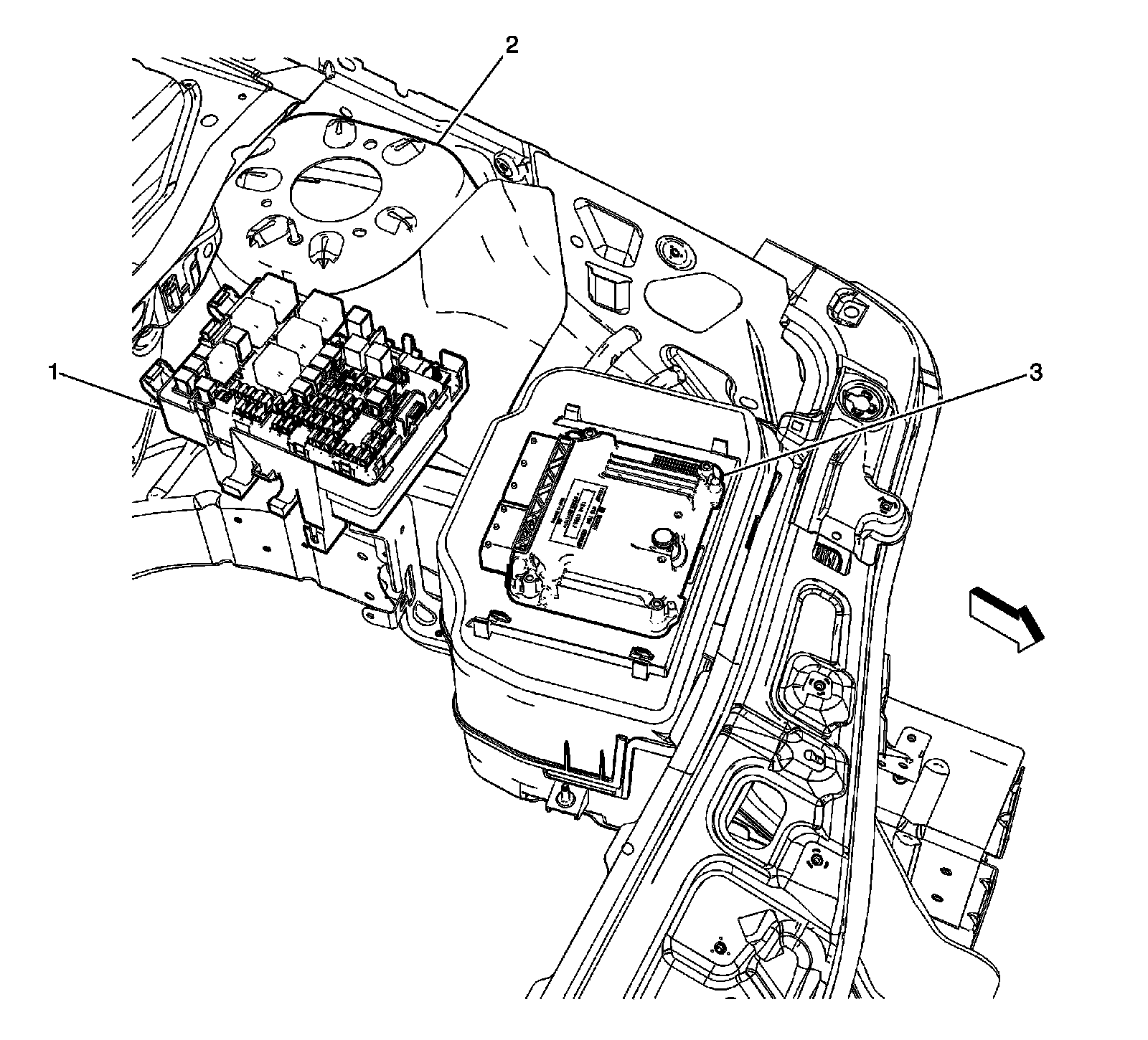

Left Front Engine Compartment Components 2 of 2
1 - Fuse Block - Underhood
2 - Left Front Strut Tower
3 - Engine Control Module (ECM)

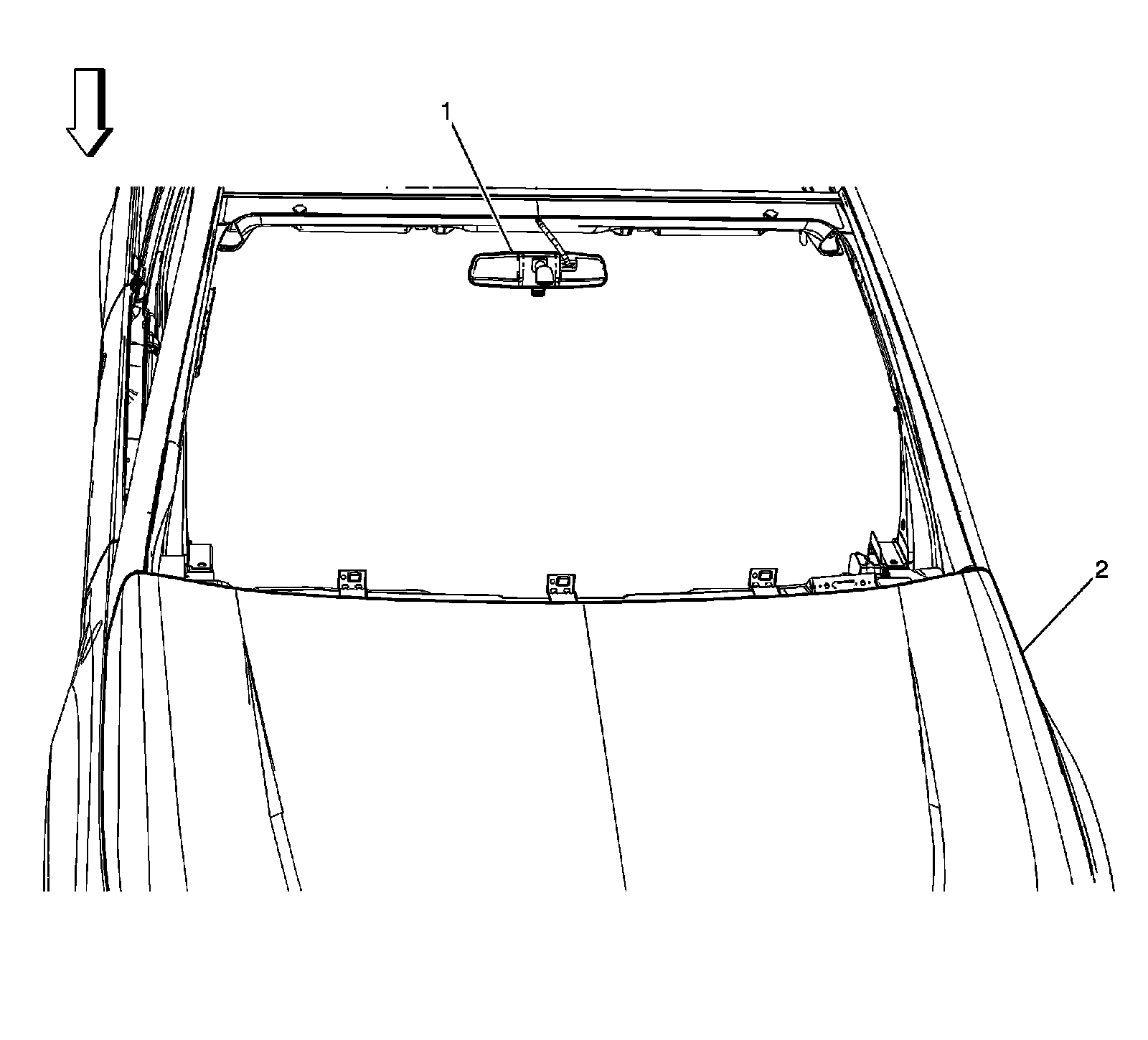

Windshield Components 1 of 2
1 - Inside Rearview Mirror (ISRVM)
2 - Hood

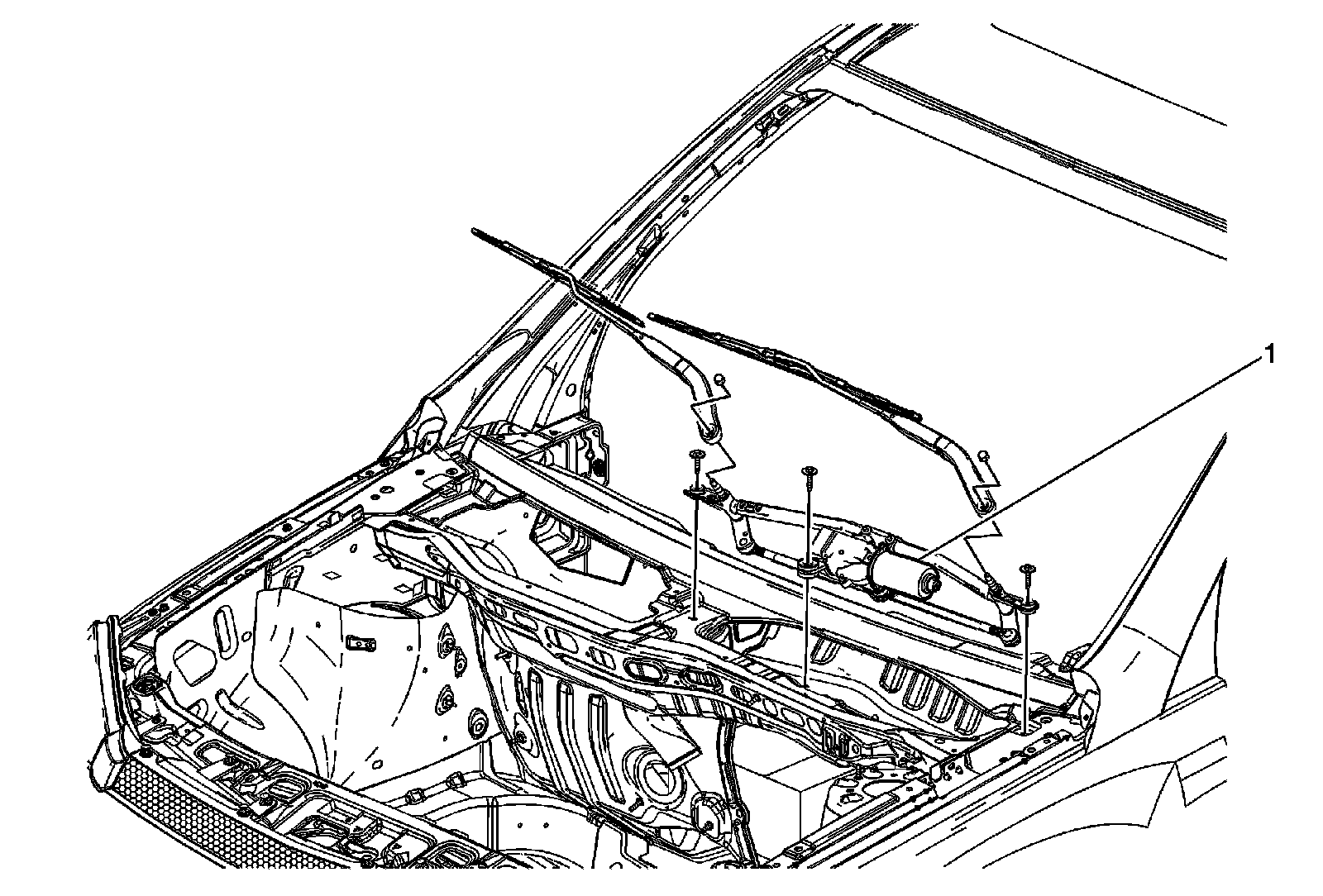

Windshield Components 2 of 2
1 - Windshield Wiper Motor

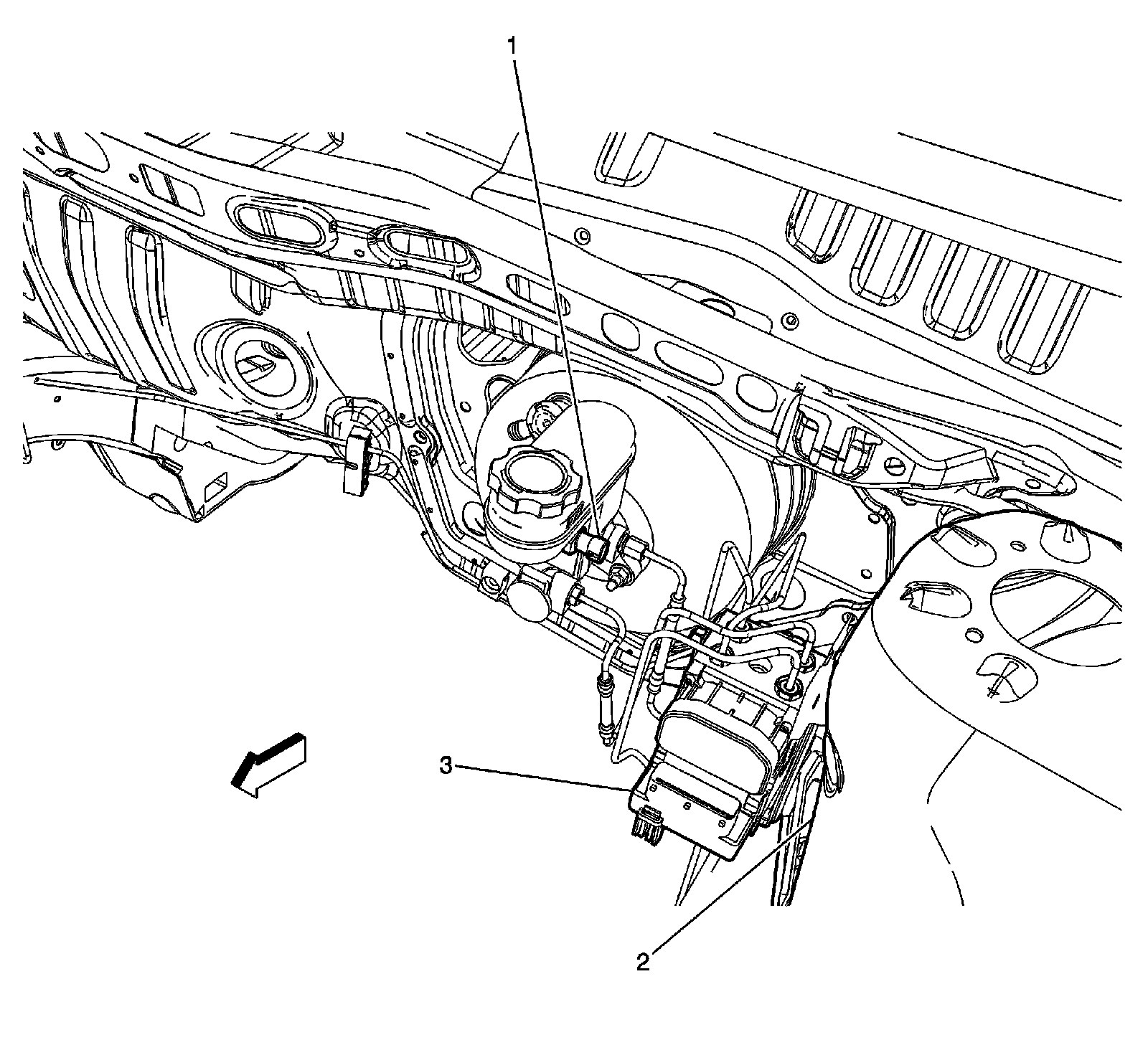

Left Front Cowl Components
1 - Brake Fluid Level Switch
2 - Left Front Strut Tower
3 - Electronic Brake Control Module (EBCM)

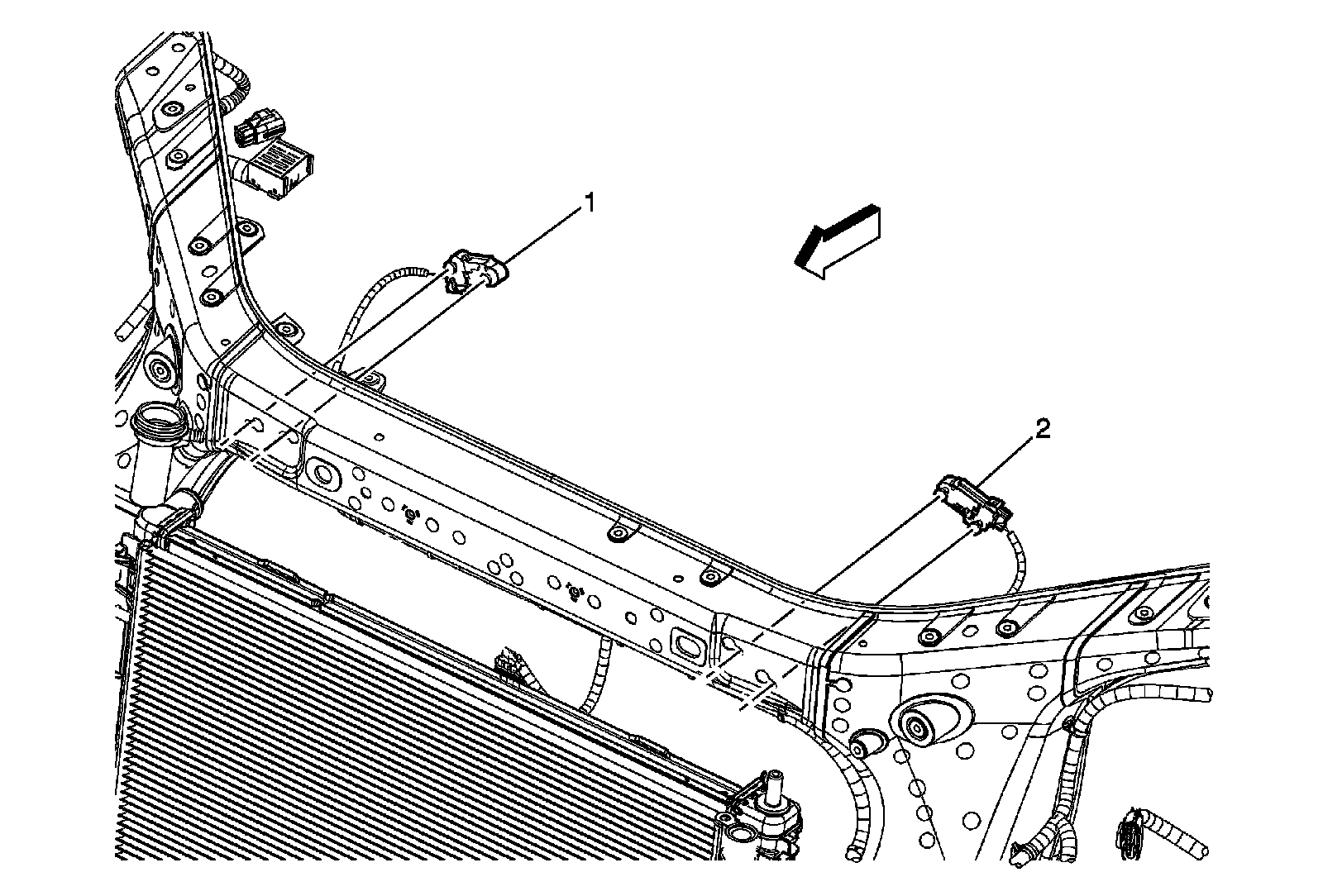

Front End Sensor Components (ASF)
1 - Inflatable Restraint Front End Sensor - Right
2 - Inflatable Restraint Front End Sensor - Left
