2009 Pontiac Torrent Base, FWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Retrieve data from the malfunctioning BCM. Refer to Control Module References .
- Rotate the ignition switch to the OFF position.
- Remove the radio bezel. Refer to Radio Replacement .

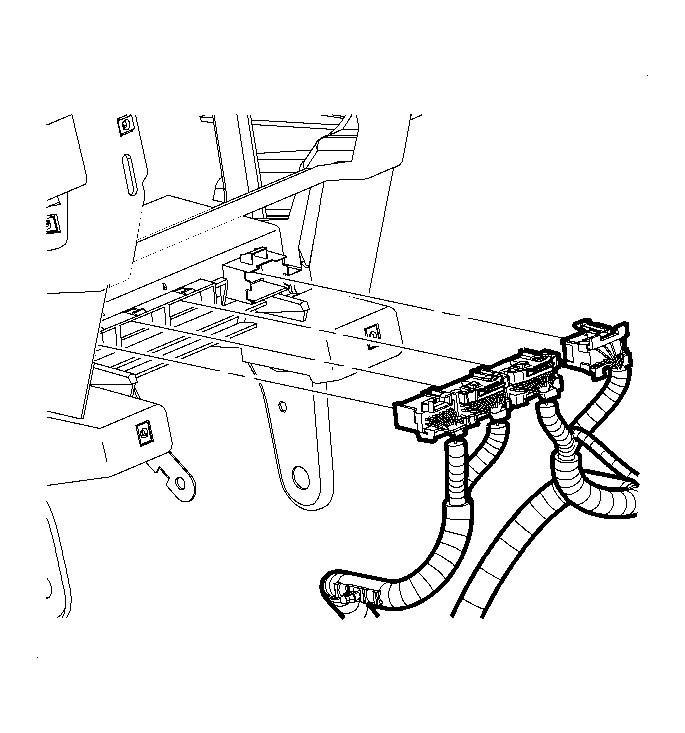

- Disconnect the BCM electrical harnesses.
- Remove the BCM from the instrument panel (I/P) retainer:
- Pry the BCM tabs from the locking tabs on the underside of the restraint.
- Slide the BCM out of the retainer.
IMPORTANT:
If data is not retrieved from the malfunctioning body control module (BCM), additional time will be required to program the replacement BCM.
