2009 Pontiac G8 BaseFACTORY OEM SERVICE PROCEDURE

Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

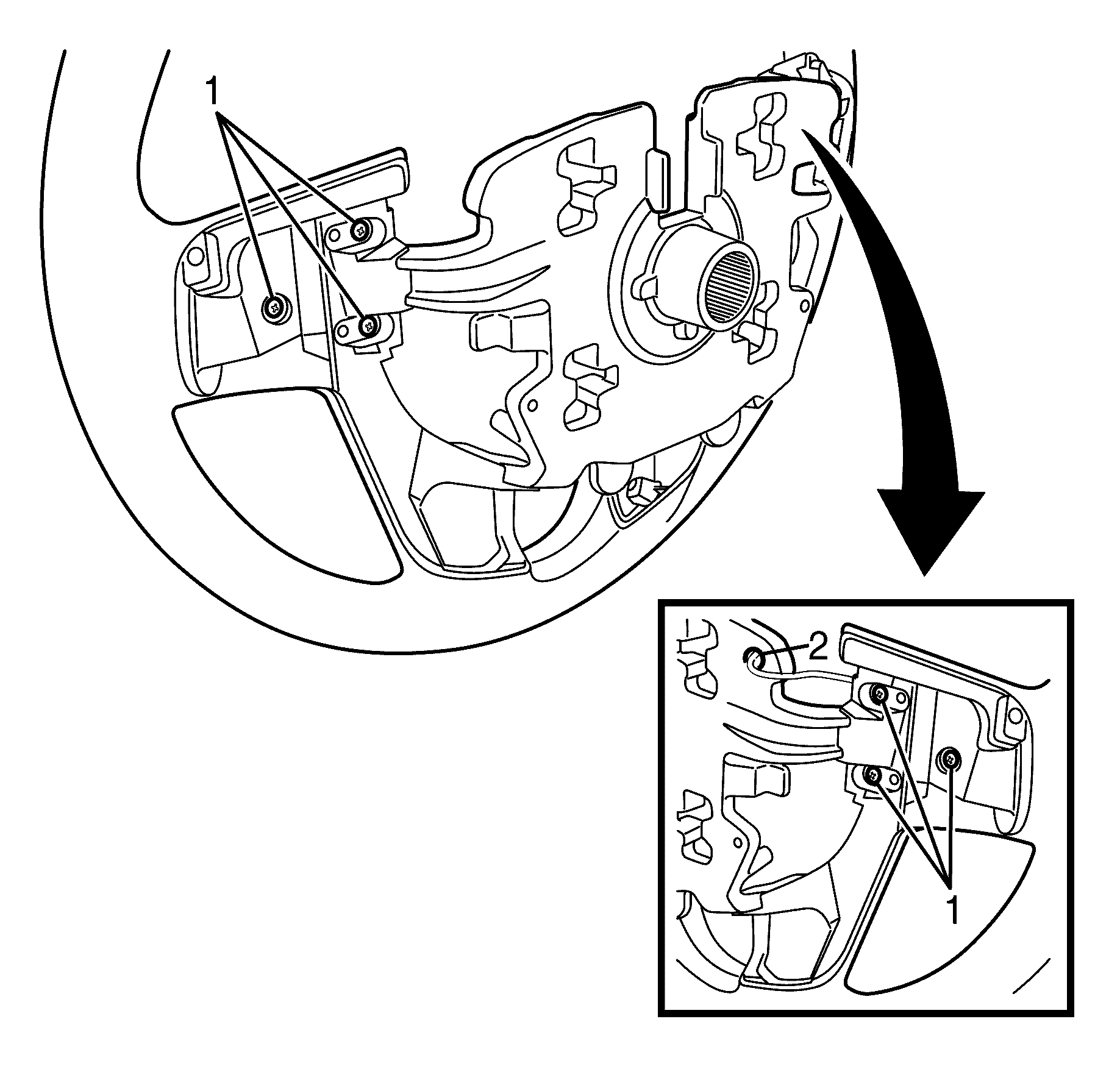

Fig 1: Identifying Steering Wheel Hub To Steering Wheel Audio Control Switch Assembly Retaining Screws

Courtesy of GENERAL MOTORS CORP.

Install the steering wheel audio control switches from the steering wheel hub assembly.

NOTE: Refer to Fastener Notice .

Install the steering wheel audio control switch assembly harness grounding screw (2).
Tighten: Tighten the screws to 1 N.m (9 lb in).
Install the steering wheel hub to steering wheel audio control switch assembly retaining screws (1).
Tighten: Tighten the screws to 1 N.m (9 lb in).

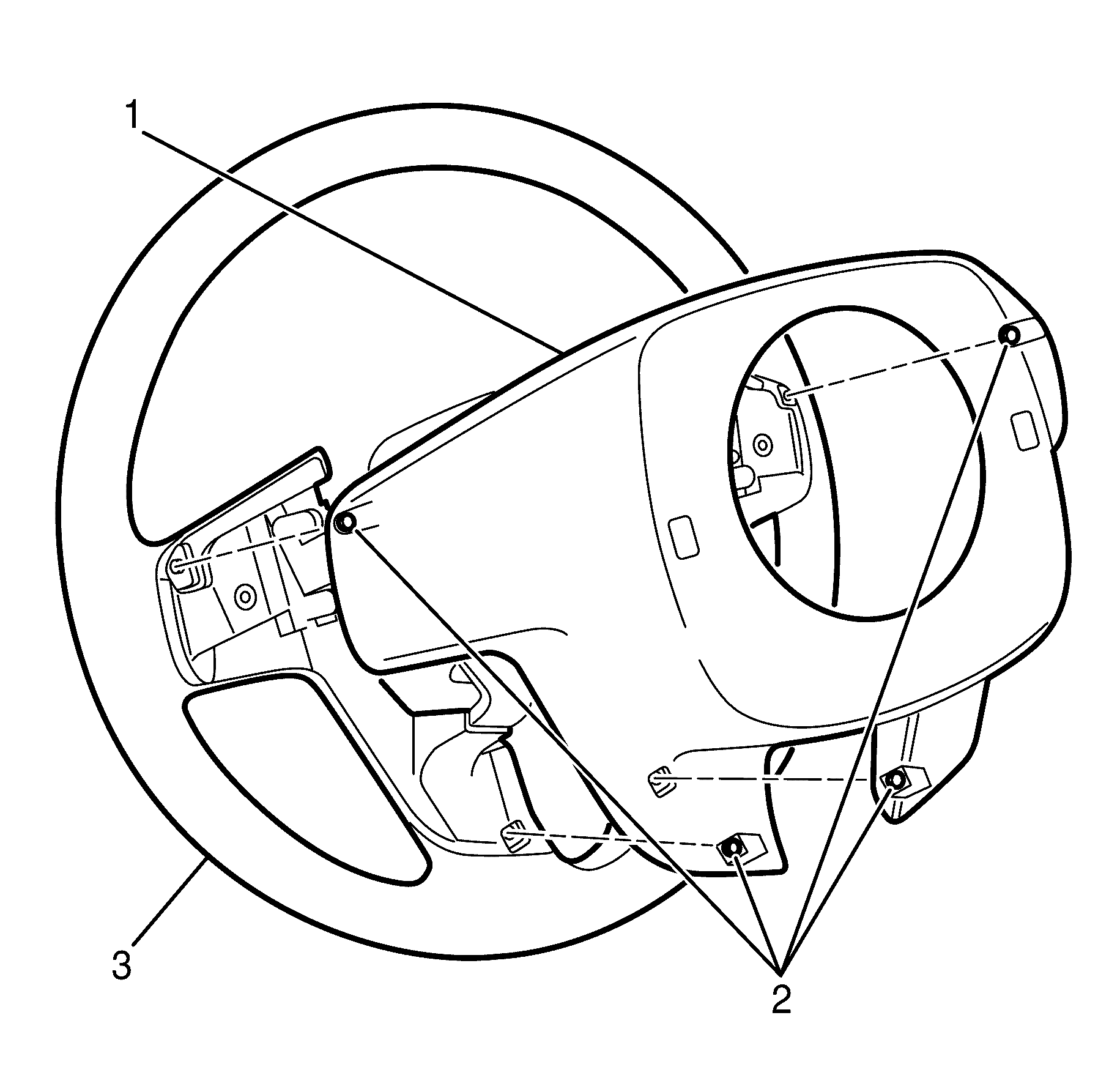

Fig 2: View Of Rear Cover, Retainers & Steering Wheel Hub

Courtesy of GENERAL MOTORS CORP.
