2009 Pontiac G8 BaseFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

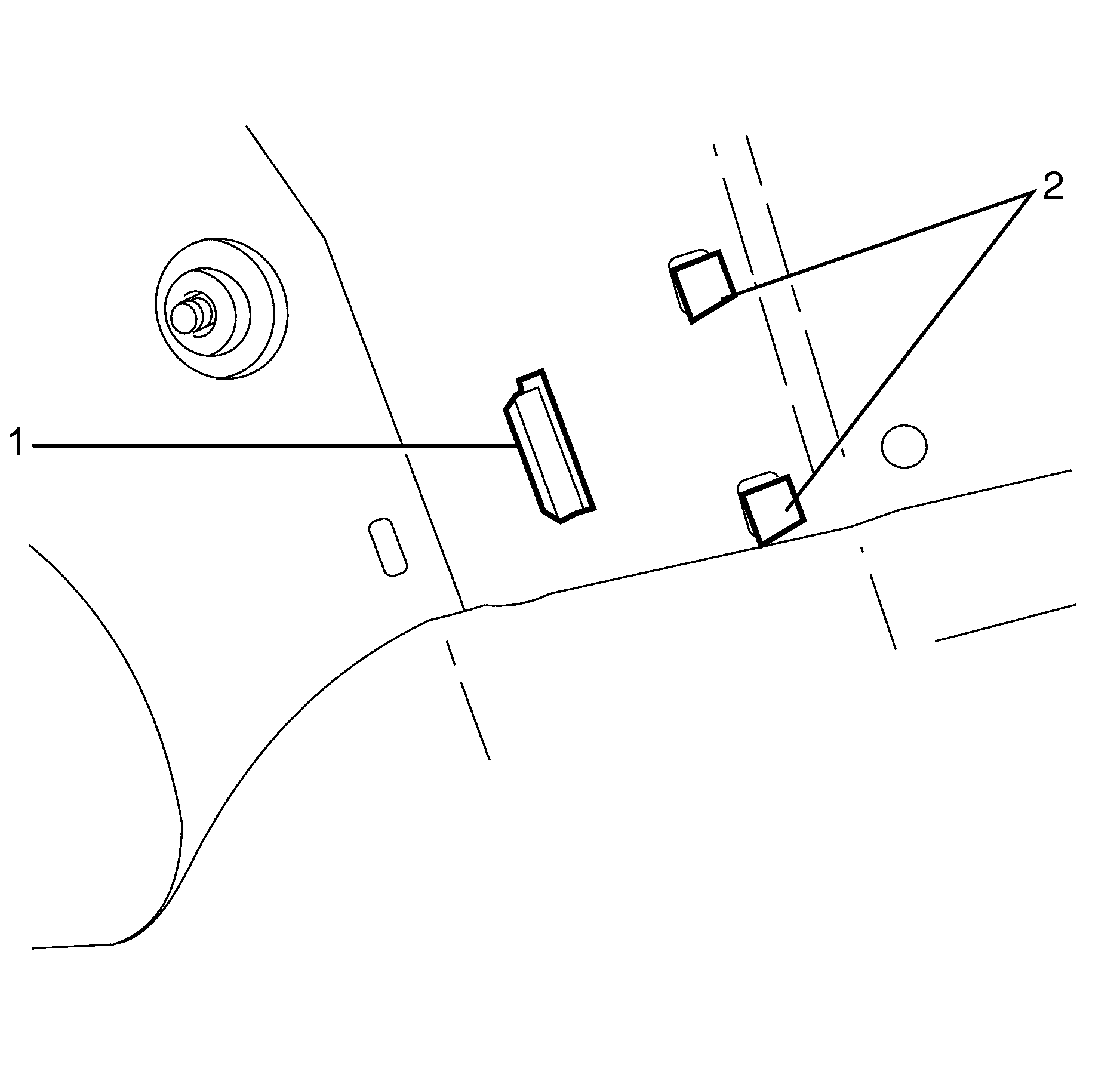

- Install the RFA by inserting the retaining tang (1) first and snap fitting the other two retaining tangs (2) listen for an audible click to confirm fitting.
- Connect the RFA (1) electrical connector (2).
- Install the rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement .
- Program the RFA. Refer to Remote Control Door Lock Receiver Programming and Setup .
- Operate the keyless entry for correct operation.
