2009 Pontiac G8 BaseFACTORY OEM SERVICE PROCEDURE
Steering Wheel Control Switch Assembly Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

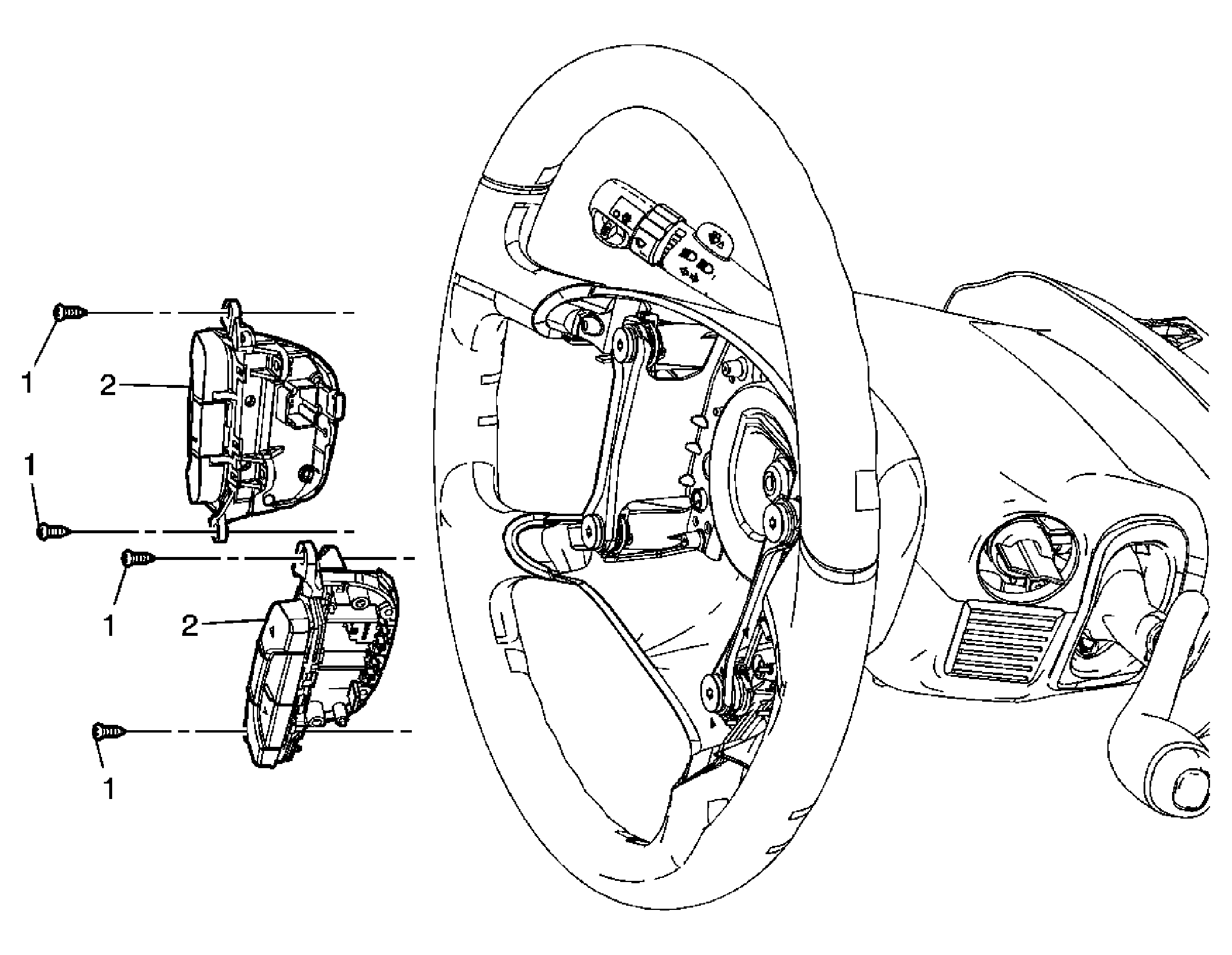

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement . |
|
| 1 | Steering Wheel Switch Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
. Tip: Disconnect the electrical connector. Tighten: 1.8 N.m (16 lb in) |
| 2 | Radio, HVAC and Cruise Control Switch Assembly |
