2009 Pontiac G8 BaseFACTORY OEM SERVICE PROCEDURE

Distance Sensing Cruise Control Module Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

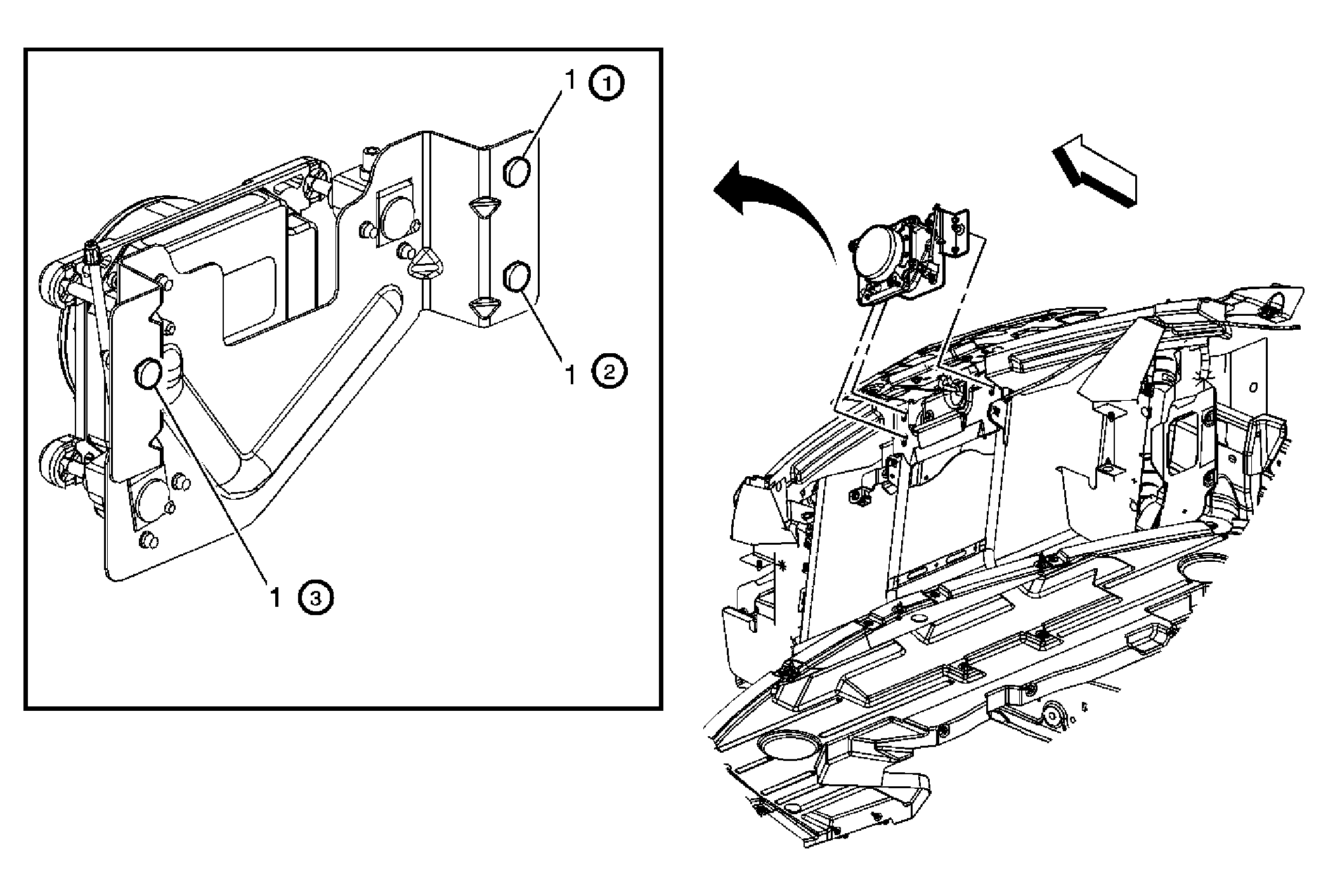

Fig 1: Distance Sensing Cruise Control Module

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Refer to Control Module References for replacement and setup information.

Module Assembly, Cruise Control

CAUTION: Refer to Fastener Caution .

Tip:

Loosen the bolts that hold the cruise control module into the T-slots on the tie bar.
Disconnect the electrical connector.
Slide the module out of the T-slots on the bracket.
Replace the module by sliding the assembly into the T-slots on the bracket and tighten.
Mandatory tightening sequence.
Verify proper alignment of the module. Refer to Distance Sensing Cruise Control Aiming .

Tighten: 9 N.m (80 lb in)
