2008 Pontiac Wave (CANADA) L4-1.6LFACTORY OEM SERVICE PROCEDURE
Control Module: Service and Repair
Transmission Control Module Replacement
Removal Procedure
Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.

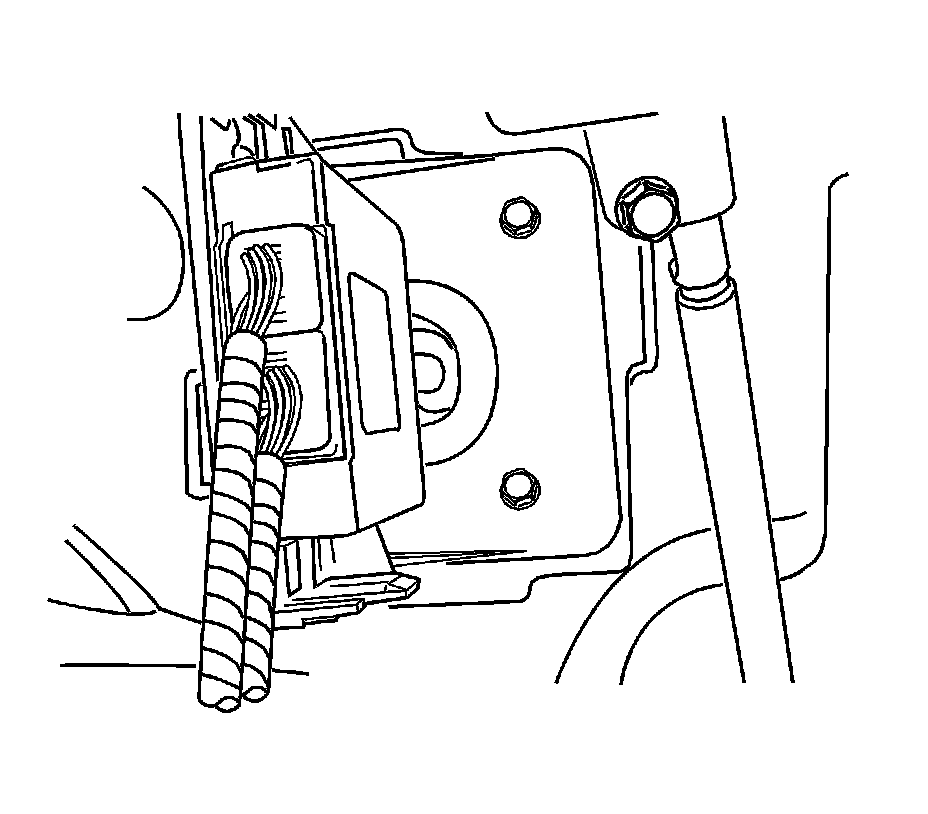

2. Locate the transmission control module (TCM) electrical connector next to the brake pedal assembly.
3. Disconnect the TCM electrical connector.

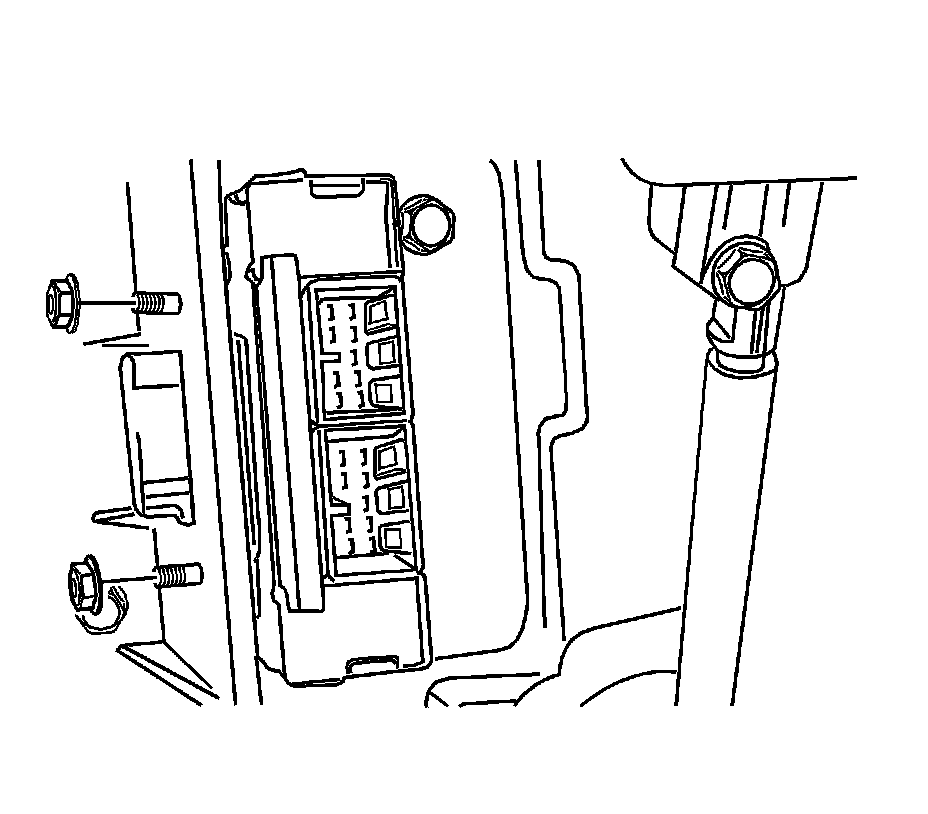

4. Remove the TCM retaining bolts.
5. Remove the TCM.
Installation Procedure
1. Connect the negative battery cable.
Notice: Refer to Fastener Notice (Fastener Notice).
2. Install the TCM and retaining bolts.
Tighten the TCM retaining bolts to 5 N.m (44 lb in).
3. Connect the TCM electrical connector.
4. Connect the negative battery cable.
5. Refer to Control Module References (Programming and Relearning) for programming and setup information.
