2008 Pontiac Wave (CANADA) L4-1.6LFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor: Service and Repair

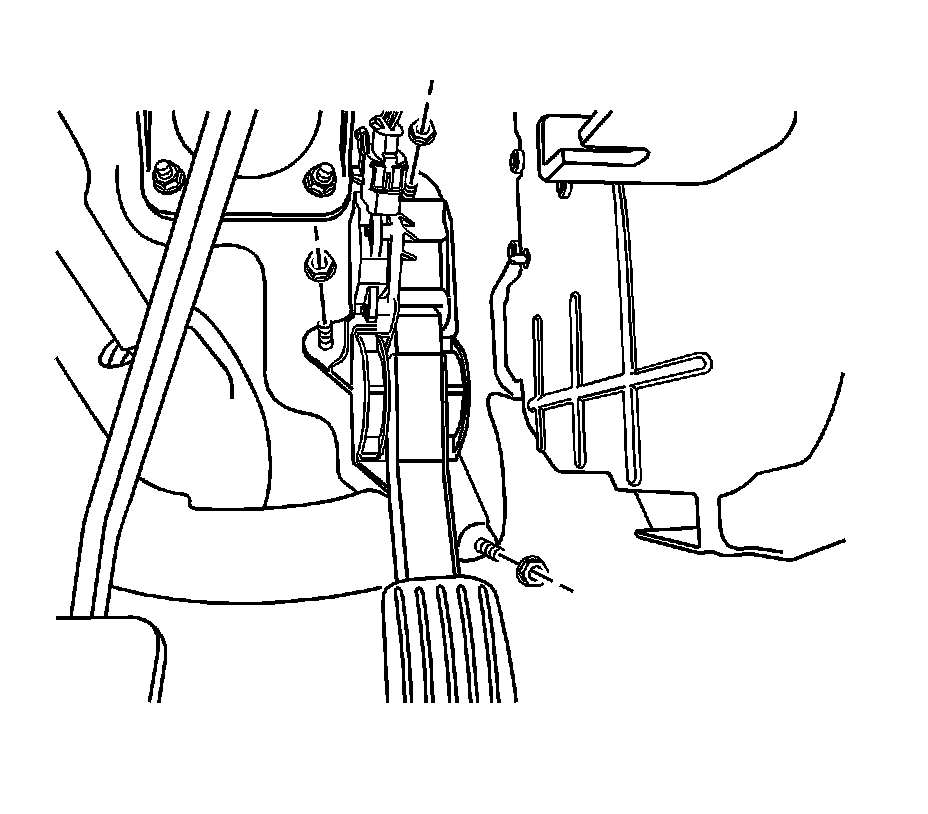

Accelerator Pedal Position Sensor Replacement
Removal Procedure
Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Disconnect the electronic throttle control (ETC) connector from the accelerator pedal.
3. Remove the 3 accelerator pedal retaining nuts.
4. Remove the accelerator pedal.
Installation Procedure
1. Position the accelerator pedal.
Notice: Refer to Fastener Notice (Fastener Notice).
2. Install the 3 accelerator pedal retaining nuts.
Tighten the accelerator pedal retaining nuts to 19 N.m (14 lb ft).
3. Connect the ETC connector to the accelerator pedal.
4. Connect the negative battery cable.
