2008 Pontiac Wave (CANADA) L4-1.6LFACTORY OEM SERVICE PROCEDURE
Compressor Control Valve Assembly Removal
Compressor Control Valve Assembly Removal
Tools Required
J 5403 Snap Ring Pliers
1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (Service and Repair).

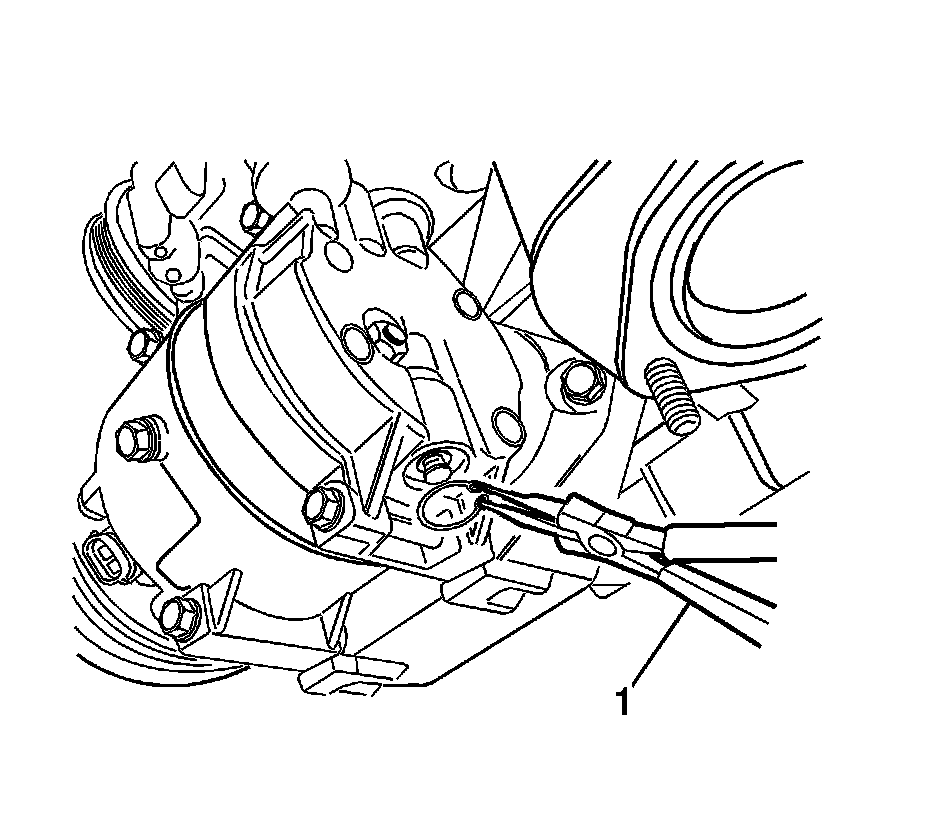

2. Remove the control valve retaining ring using the J 5403 (1).
3. Remove the control valve assembly.
