Remote Control Door Lock Receiver Replacement (Notchback)

Removal Procedure

Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).

Important: Remote keyless transmitters must be programmed when remote control module/receiver is replaced.

1. Disconnect the negative battery cable.
2. Separate the hood release cable from the hood latch release handle.
3. Carefully pull the instrument panel under cover until the mounting clips are released and the instrument panel under the cover.
4. Remove the bolts from the driver's side knee bolster.
5. Disconnect the control module/receiver electrical connector.

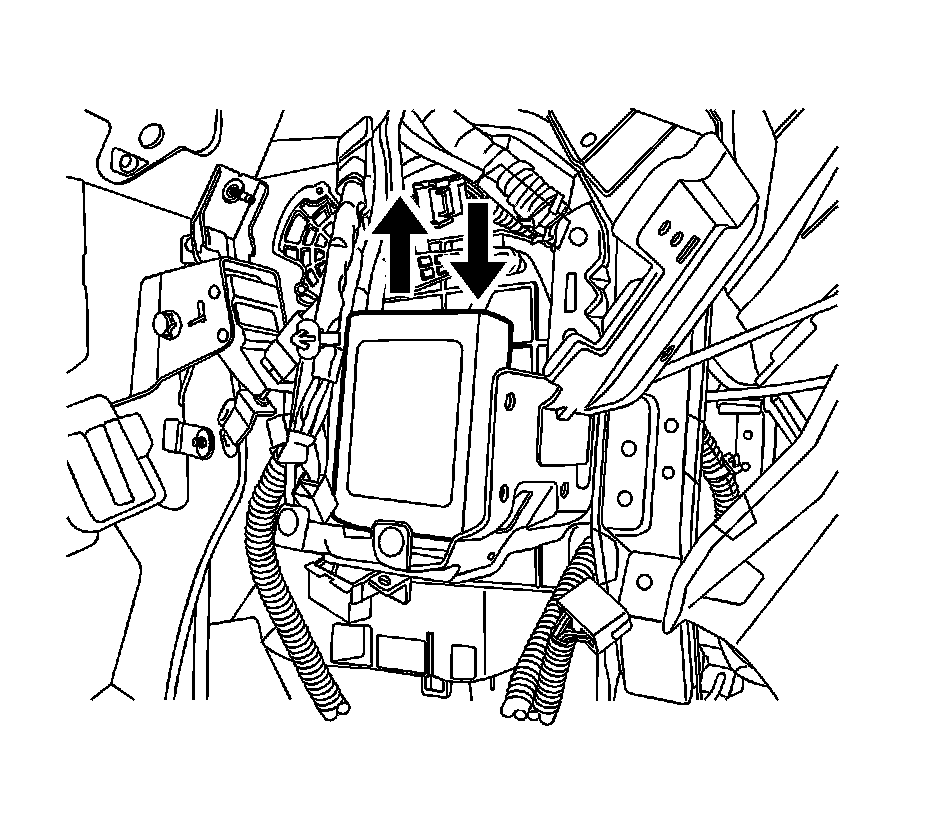

6. Slide the control module/receiver away from its mounting bracket.

Installation Procedure

1. Install the control module/receiver on its mounting bracket.
2. Connect the control module/receiver electrical connector.

Notice: Refer to Fastener Notice (Fastener Notice).

3. Install the knee bolster with bolts.

Tighten the driver's side knee bolster mounting bolts to 10 N m (89 lb in).

4. Install the instrument panel under cover.
5. Connect the hood release cable to the hood latch release handle.
6. Install the screws.
7. Connect the negative battery cable.
8. Complete remote keyless transmitter programmming. Refer to Transmitter Programming (Programming and Relearning)
