2008 Pontiac Wave (CANADA) L4-1.6LFACTORY OEM SERVICE PROCEDURE

Remote Control Door Lock Receiver Replacement (Hatchback)



Remote Control Door Lock Receiver Replacement (Hatchback)

Removal Procedure

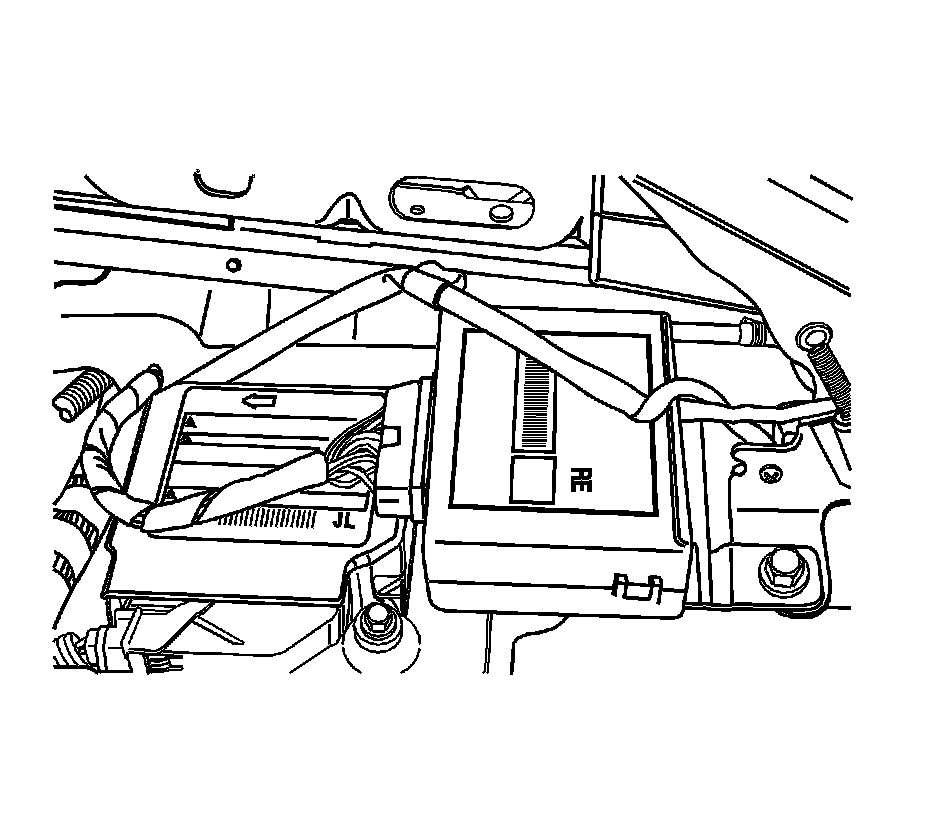

Factory service manual diagram



Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).

Important: Remote keyless transmitters must be programmed when remote control module/receiver is replaced.


1. Disconnect the negative battery cable.
2. Remove the floor console. Refer to Front Floor Console Replacement (Notchback) (Service and Repair)Front Floor Console Replacement (Hatchback) (Service and Repair).
3. Disconnect the control module/receiver electrical connector.
4. Slide the control module/receiver away from its mounting bracket.


Installation Procedure

Factory service manual diagram



1. Install the control module/receiver on its mounting bracket.
2. Connect the control module/receiver electrical connector.
3. Install the floor console. Refer to Front Floor Console Replacement (Notchback) (Service and Repair)Front Floor Console Replacement (Hatchback) (Service and Repair).
4. Connect the negative battery cable.
5. Complete remote keyless transmitter programmming. Refer to Transmitter Programming (Programming and Relearning)
