2008 Pontiac Wave (CANADA) L4-1.6LFACTORY OEM SERVICE PROCEDURE
Vehicle Access Component Views (Hatchback)
Vehicle Access Component Views (Hatchback)
Door Components
1 - Window Motor - Rear (Left Side Shown, Right Side Similar)
2 - Window Switch - Rear (Left Side Shown, Right Side Similar)
3 - Connector C371
4 - Outside Rearview Mirror Connector
5 - Outside Rearview Mirror Switch
6 - Speaker - (Left Front Shown, Right Similar)
7 - Door Latch - Front (Left Side Shown, Right Side Similar)
8 - Door Latch - Rear (Left Side Shown, Right Side Similar)
9 - Window Switch - Front (Left Side Shown, Right Side Similar)
10 - Outside Rearview Mirror Motor (Left Side Shown, Right Side Similar)
11 - Window Motor Front (Left Side Shown, Right Side Similar)
12 - Door Jamb Switch (Left Rear Shown, Others Similar)

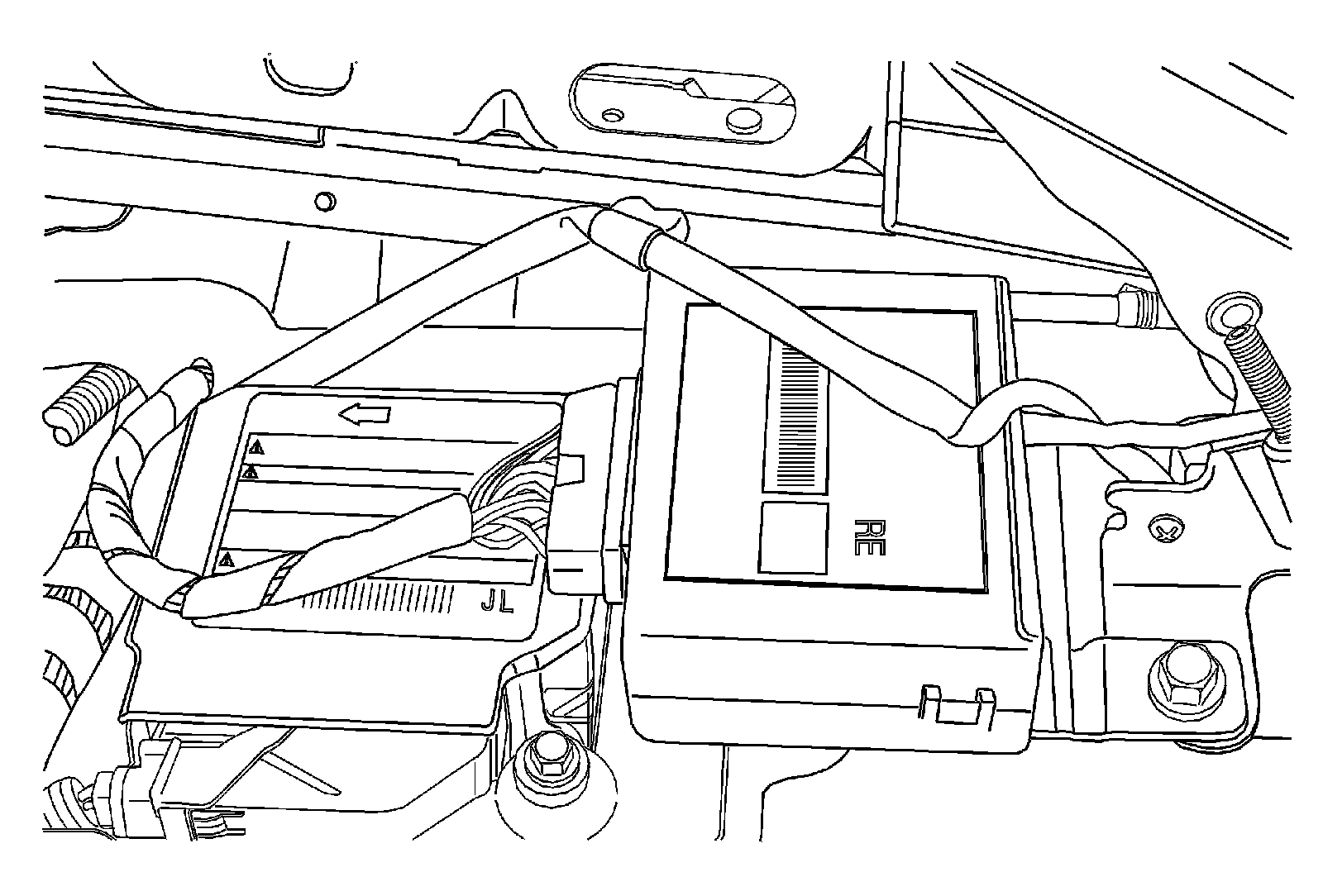

Remote Control Door Lock Receiver (RCDLR)
1 - Remote Control Door Lock Receiver (RCDLR)
