2008 Pontiac Solstice L4-2.4LFACTORY OEM SERVICE PROCEDURE
Emission Control Systems: Locations

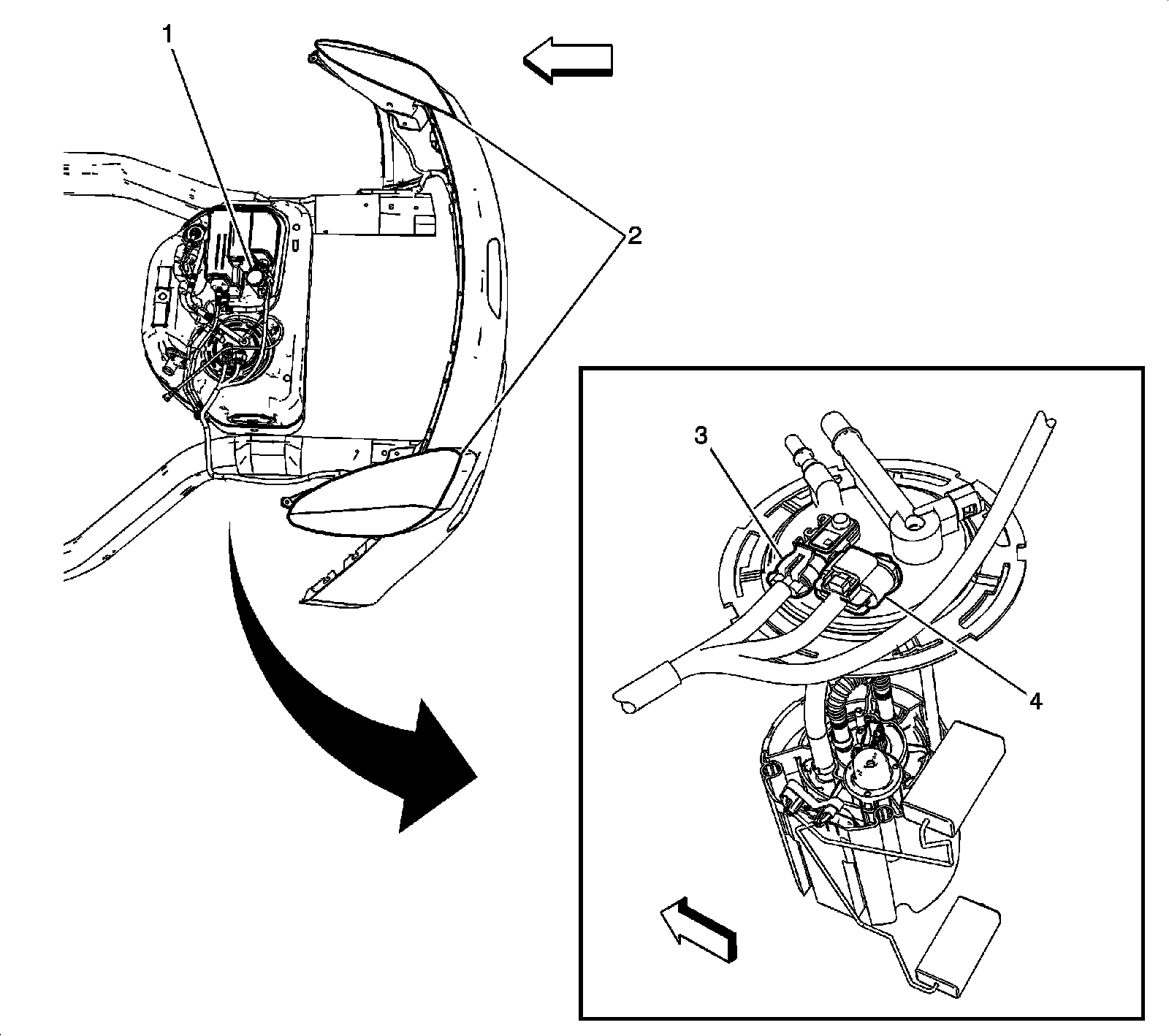

Fuel Tank Components
1 - Evaporative Emission (EVAP) Canister Vent Solenoid
2 - Rear Tail Lamps
3 - Fuel Tank Pressure (FTP) Sensor Connector
4 - Fuel Pump and Sender Assembly Connector
