2008 Pontiac Solstice L4-2.4LFACTORY OEM SERVICE PROCEDURE
Oil Pressure Sensor: Service and Repair
Engine Oil Pressure Sensor and/or Switch Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

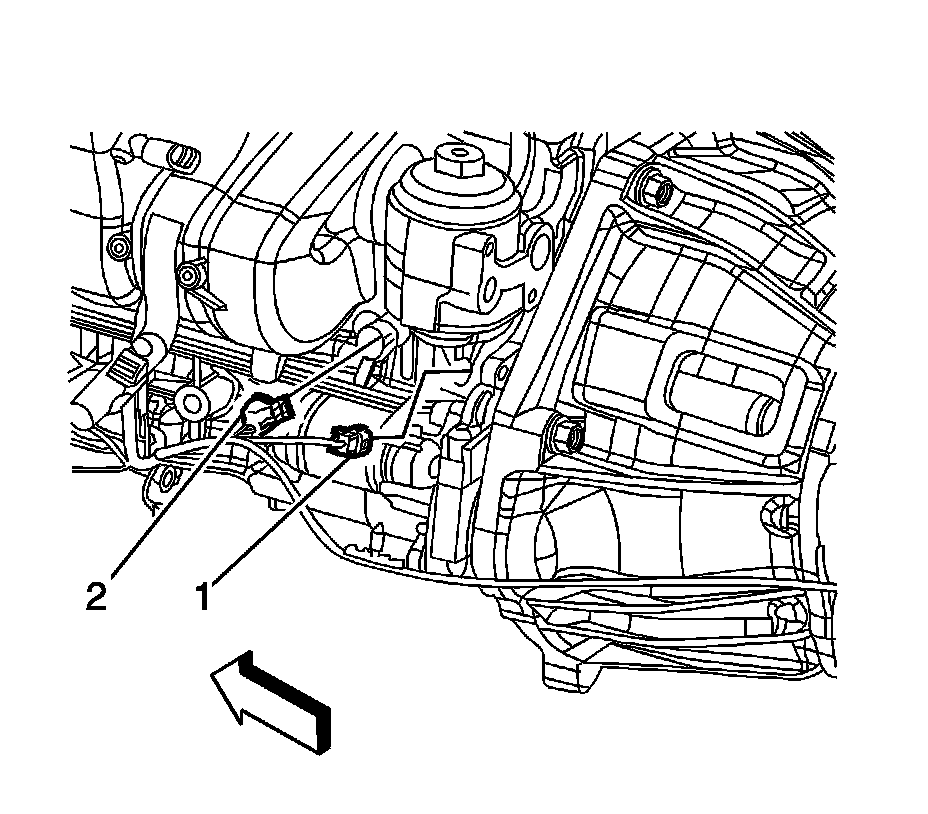

2. Disconnect the engine oil pressure sensor electrical connector (2).
3. Remove the engine oil pressure sensor.
Installation Procedure
Notice: Refer to Fastener Notice (Fastener Notice) .
1. Install the engine oil pressure sensor.
Tighten the sensor to 22 N.m (16 lb ft).
2. Connect the engine oil pressure sensor electrical connector (2).
3. Lower the vehicle.
