2008 Pontiac Solstice L4-2.4LFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Locations
Automatic Transmission Electronic Component Views
Control Module Location
1 - Electronic Control Module (ECM)

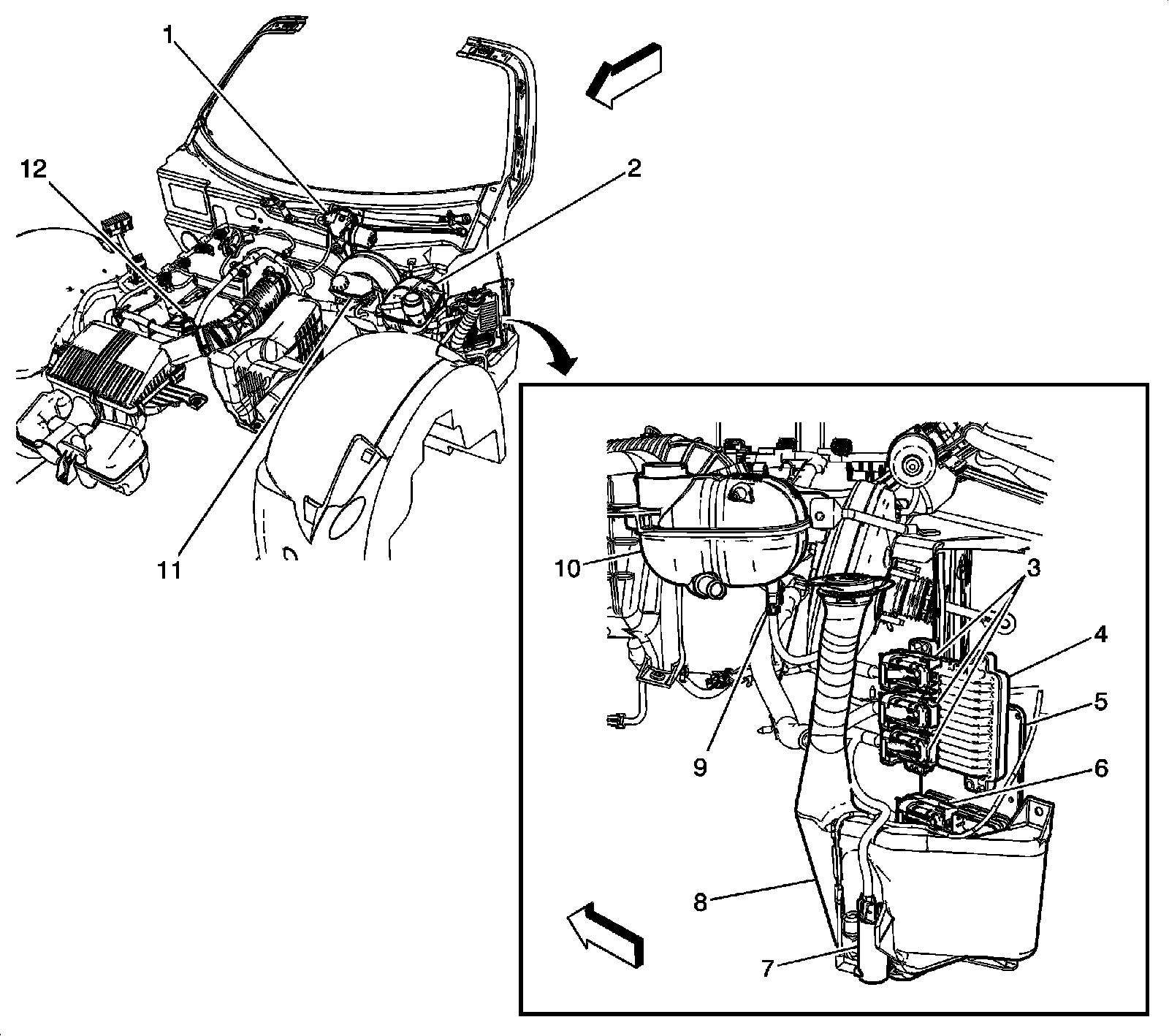

Front Engine Compartment
Front Engine Compartment:
1 - Windshield Wiper Motor and Module
2 - Coolant Surge Tank
3 - Engine Control Module (ECM) Connectors
4 - Engine Control Module (ECM)
5 - Transmission Control Module (TCM) (M82)
6 - Transmission Control Module (TCM) Connector (M82)
7 - Windshield Washer Fluid Pump
8 - Windshield Washer Fluid Container
9 - Engine Coolant Level Switch
10 - Coolant Surge Tank
11 - Brake Fluid Level Switch
12 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
