2008 Pontiac Solstice L4-2.4LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair

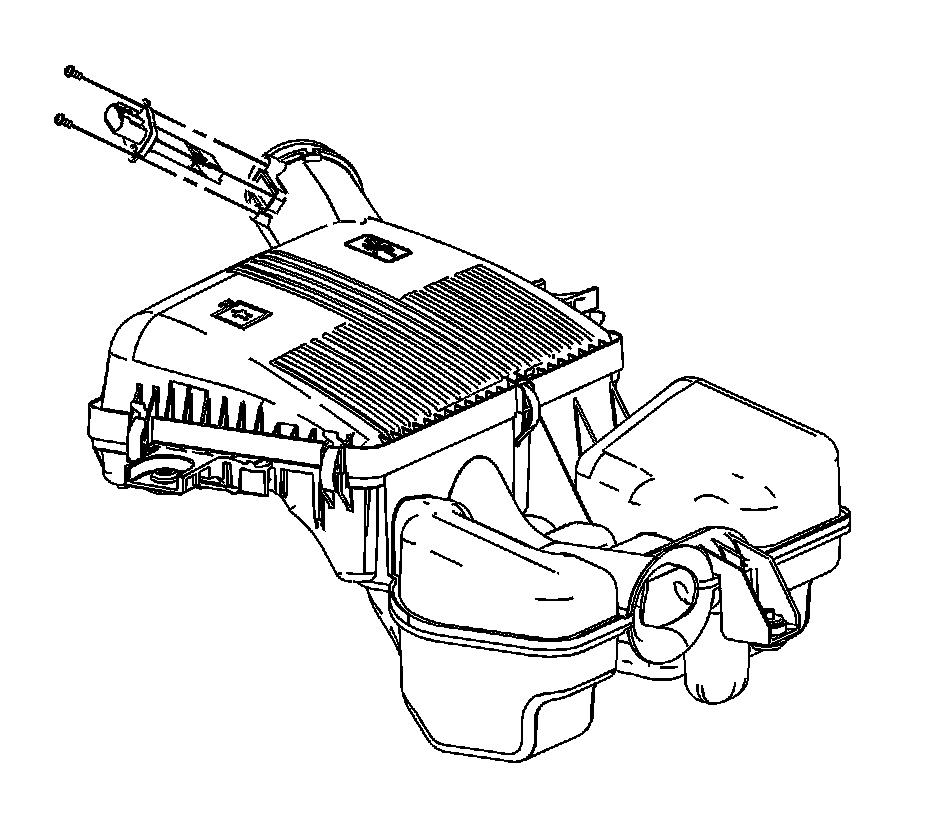

Mass Airflow Sensor/Intake Air Temperature Sensor Replacement
Removal Procedure

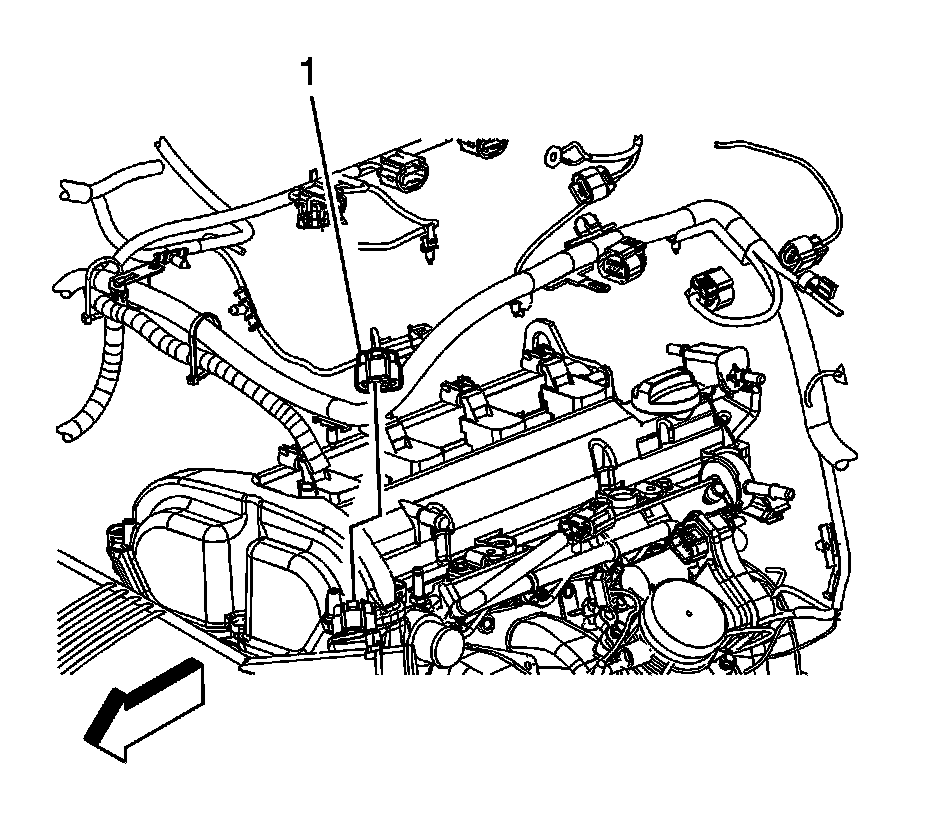

1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector (1).
2. Remove the MAF/IAT sensor screws.
3. Remove the MAF/IAT sensor.
Installation Procedure
1. Install the MAF/IAT sensor.
Notice: Refer to Fastener Notice (Fastener Notice) .
2. Install the MAF/IAT sensor screws.
Tighten the screws to 0.6 N.m (5 lb in).
3. Connect the MAF/IAT sensor electrical connector (1).
