2008 Pontiac Solstice L4-2.4LFACTORY OEM SERVICE PROCEDURE
Steering Column

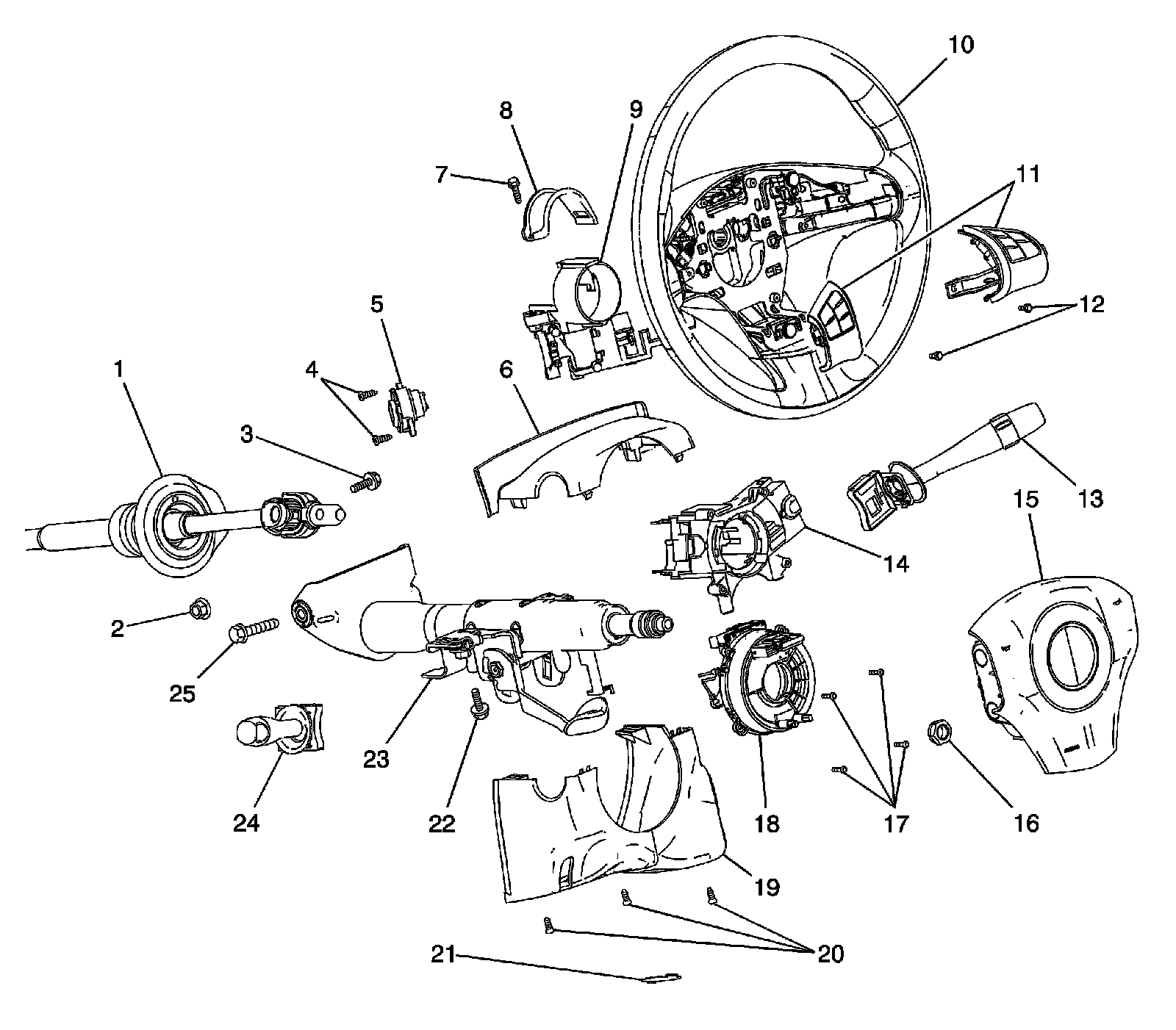

Steering Column Disassembled View
Steering Column Disassembled View:
1 - Intermediate Steering Shaft
2 - Intermediate Steering Shaft Nut
3 - Intermediate Steering Shaft Bolt
4 - Ignition Switch Screws
5 - Ignition Switch
6 - Steering Column Upper Trim Cover
7 - Ignition Lock Cylinder Case Shear Bolt
8 - Ignition Lock Cylinder Case Clamp
9 - Ignition Lock Cylinder Case
10 - Steering Wheel
11 - Steering Wheel Control Switches
12 - Steering Wheel Control Switch Screws
13 - Windshield Wiper/Washer Switch
14 - Multi-Function Switch Housing
15 - Steering Wheel Inflatable Restraint Module
16 - Steering Wheel Nut
17 - SIR Coil Screws
18 - SIR Coil
19 - Steering Column Lower Trim Cover
20 - Steering Column Lower Trim Cover Screws
21 - Steering Column Lower Trim Cover Plug
22 - Steering Column Upper Mounting Bolt
23 - Steering Column
24 - Turn Signal Switch
25 - Steering Column Lower Mounting Bolt
