2008 Pontiac Solstice L4-2.4LFACTORY OEM SERVICE PROCEDURE

Front of Vehicle/Engine Compartment Component Views



Front of Vehicle/Engine Compartment Component Views

Front Fascia Lighting (Solstice)

Factory service manual diagram



1 - Headlamp - Left
2 - Marker Lamp - Left Front
3 - Park/Turn Lamp - Left Front
4 - Fog Lamp - Left Front (T96)
5 - Fog Lamp - Right Front (T96)
6 - Park/Turn Lamp - Right Front
7 - Marker Lamp - Right Front
8 - Headlamp - Right

Front Fascia (Sky)

Factory service manual diagram



1 - Fog Lamp - Right Front
2 - Park/Turn Signal Lamp - Right Front
3 - Marker Lamp - Right Front
4 - Park Lamp - Right Front
5 - Headlamp - Low Beam - Right
6 - Headlamp - High Beam - Right
7 - Headlamp - High Beam - Left
8 - Headlamp - Low Beam - Left
9 - Park Lamp - Left Front
10 - Marker Lamp - Left Front
11 - Park/Turn Signal Lamp - Left Front
12 - Fog Lamp - Left Front

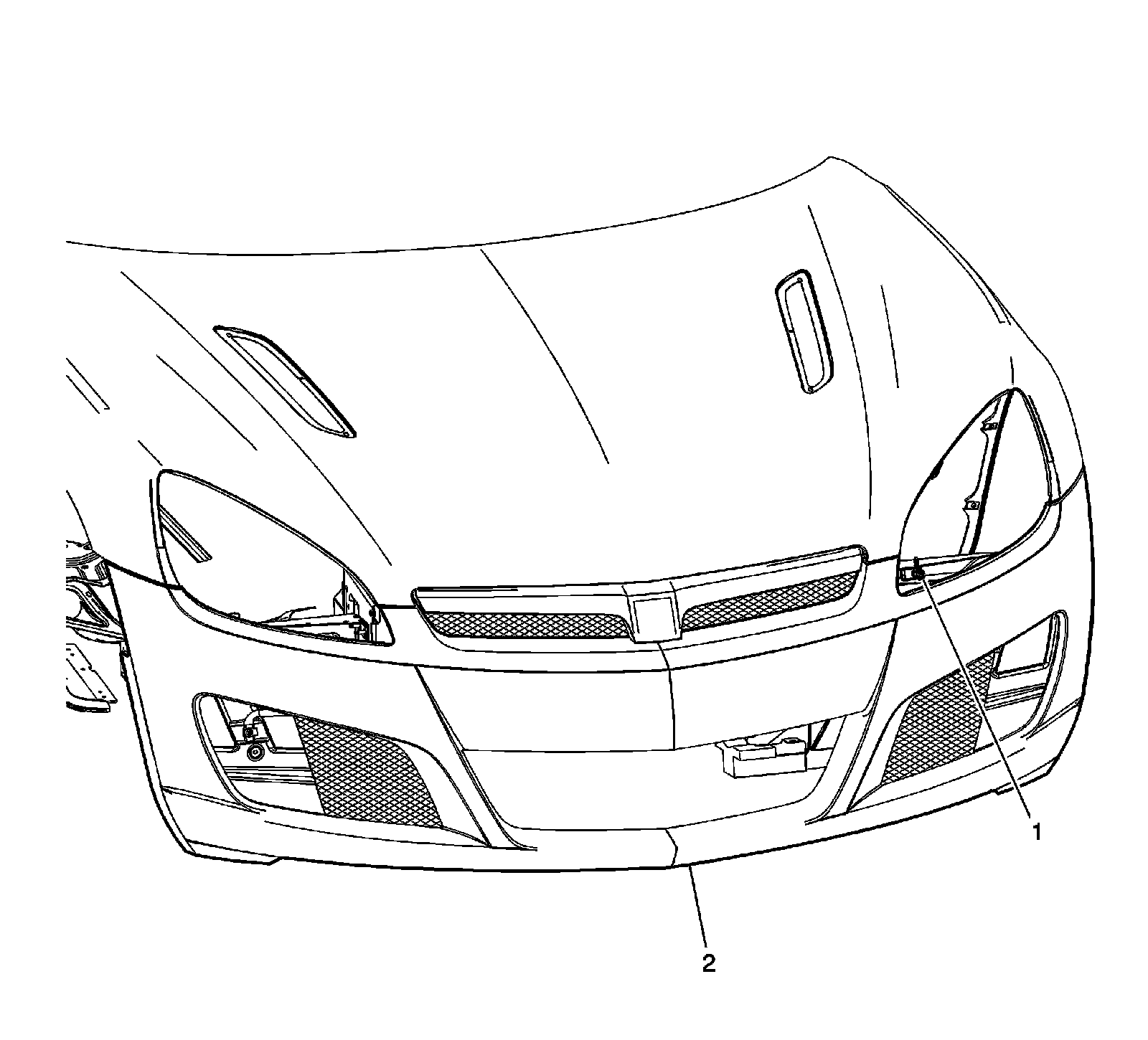

Outside Air Temperature Sensor (Sky)

Factory service manual diagram



1 - Outside Air Temperature Sensor
2 - Front Fascia

Engine Compartment - Left Front

Factory service manual diagram



1 - Wheel Well - Left
2 - Forward Lamp Harness
3 - Hinge Bracket
4 - Horn

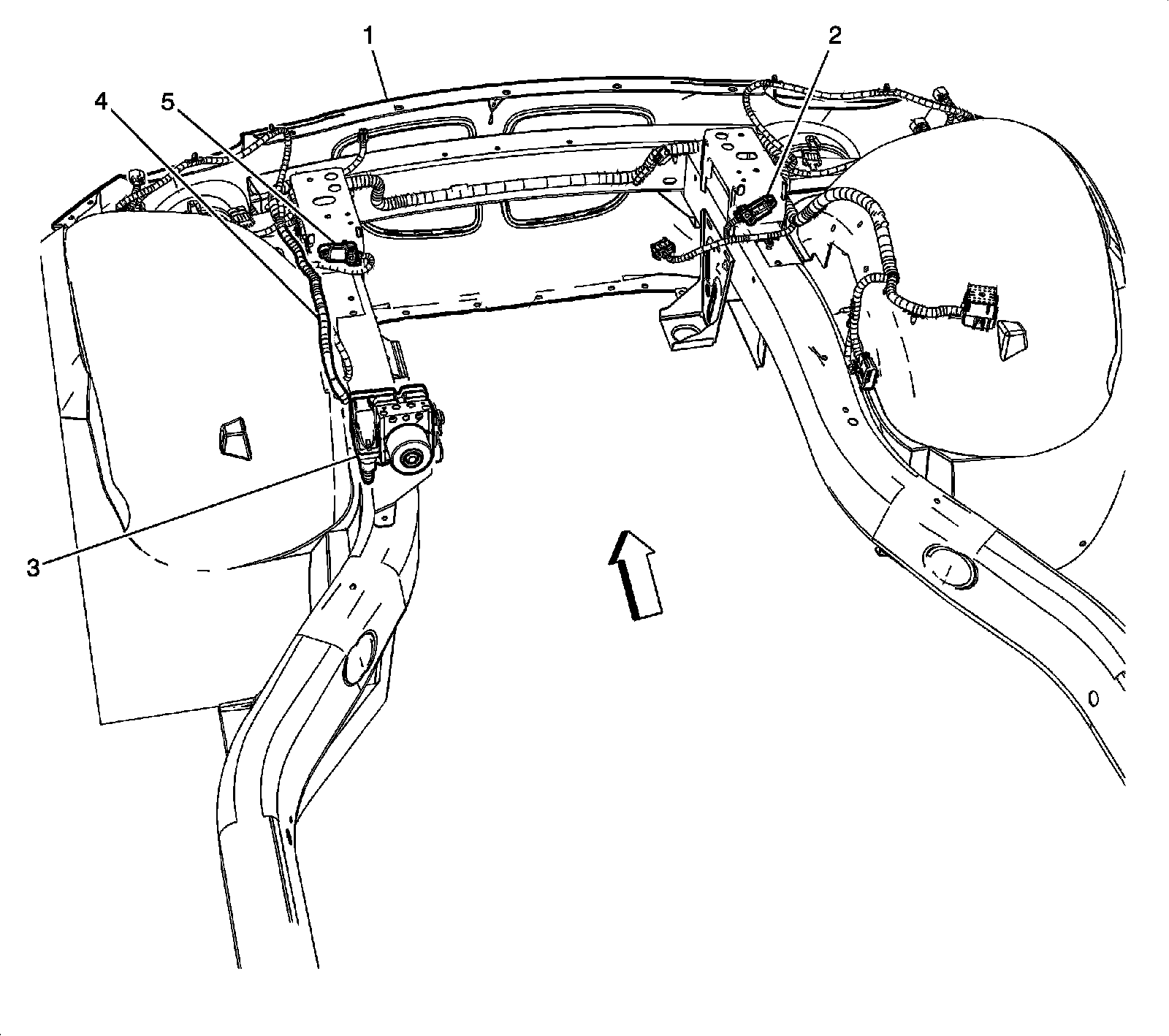

Front Engine Compartment

Front Engine Compartment:

Factory service manual diagram



1 - Front Fascia
2 - Inflatable Restraint Front End Sensor - Right
3 - Electronic Brake Control Module (EBCM)
4 - Forward Lamp Harness
5 - Inflatable Restraint Front End Sensor - Left

Above the Radiator

Factory service manual diagram



1 - Air Cleaner
2 - Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor

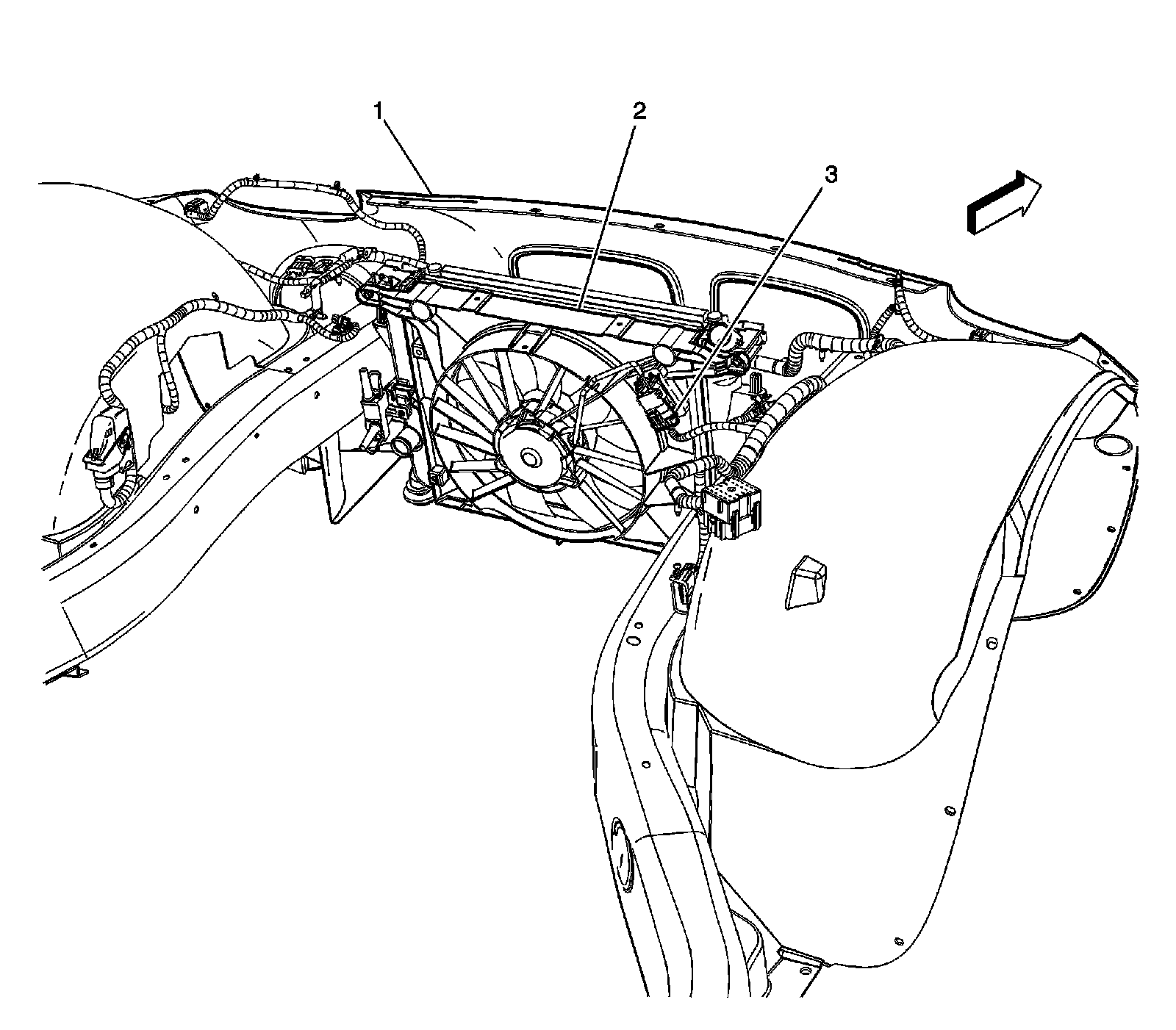

Engine Cooling Fan

Engine Cooling Fan:

Factory service manual diagram



1 - Front Fascia
2 - Engine Cooling Fan
3 - Engine Cooling Fan Connector

Front Engine Compartment

Front Engine Compartment:

Factory service manual diagram



1 - Windshield Wiper Motor and Module
2 - Coolant Surge Tank
3 - Engine Control Module (ECM) Connectors
4 - Engine Control Module (ECM)
5 - Transmission Control Module (TCM) (M82)
6 - Transmission Control Module (TCM) Connector (M82)
7 - Windshield Washer Fluid Pump
8 - Windshield Washer Fluid Container
9 - Engine Coolant Level Switch
10 - Coolant Surge Tank
11 - Brake Fluid Level Switch
12 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Forward Lamp (Solstice)

Factory service manual diagram



1 - Forward Lamp Harness to Headlamp - Right
2 - G102
3 - J115
4 - Wheel Speed Sensor (WSS) - Right Front
5 - X102
6 - J115
7 - J105
8 - J129
9 - Fuse Block - Underhood
10 - X120
11 - J103
12 - X103
13 - J130
14 - J131
15 - J109
16 - Electronic Brake Control Module (EBCM)
17 - J101
18 - Wheel Speed Sensor (WSS) - Left Front
19 - G101
20 - G105
21 - Headlamp Harness

Forward Lamp (Sky)

Factory service manual diagram



1 - X111
2 - G102
3 - J115
4 - Wheel Speed Sensor (WSS) - Right Front
5 - X102
6 - J115
7 - J105
8 - J129
9 - Fuse Block - Underhood
10 - X120
11 - J103
12 - X103
13 - J130
14 - J131
15 - J109
16 - Electronic Brake Control Module (EBCM)
17 - J101
18 - Wheel Speed Sensor (WSS) - Left Front
19 - G101
20 - G105
21 - X110

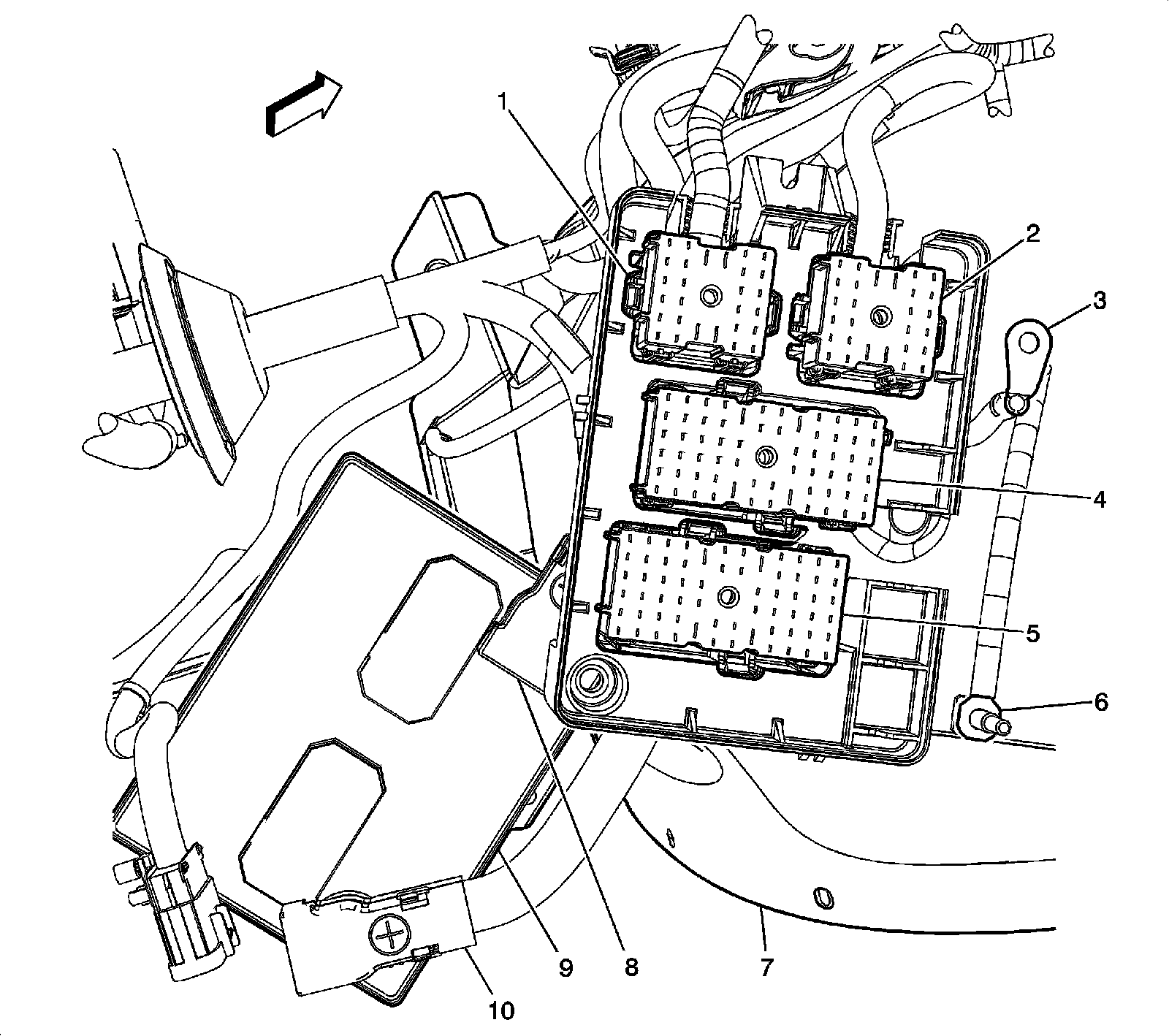

Fuse Block - Underhood Connectors

Factory service manual diagram



1 - Fuse Block - Underhood X3
2 - Fuse Block - Underhood X4
3 - Fuse Block - Underhood Cable End Connector
4 - Fuse Block - Underhood X1
5 - Fuse Block - Underhood X2
6 - G106
7 - Wheel Well - Right Side
8 - Battery Cable - Negative
9 - Battery
10 - Battery Cable - Positive

Front Engine Compartment

Factory service manual diagram



1 - G101
2 - G105
3 - G102

Front Engine Compartment

Factory service manual diagram



1 - Engine Harness
2 - A/C Refrigerant Pressure Sensor (C60)
3 - A/C Compressor Clutch (C60)
4 - Generator

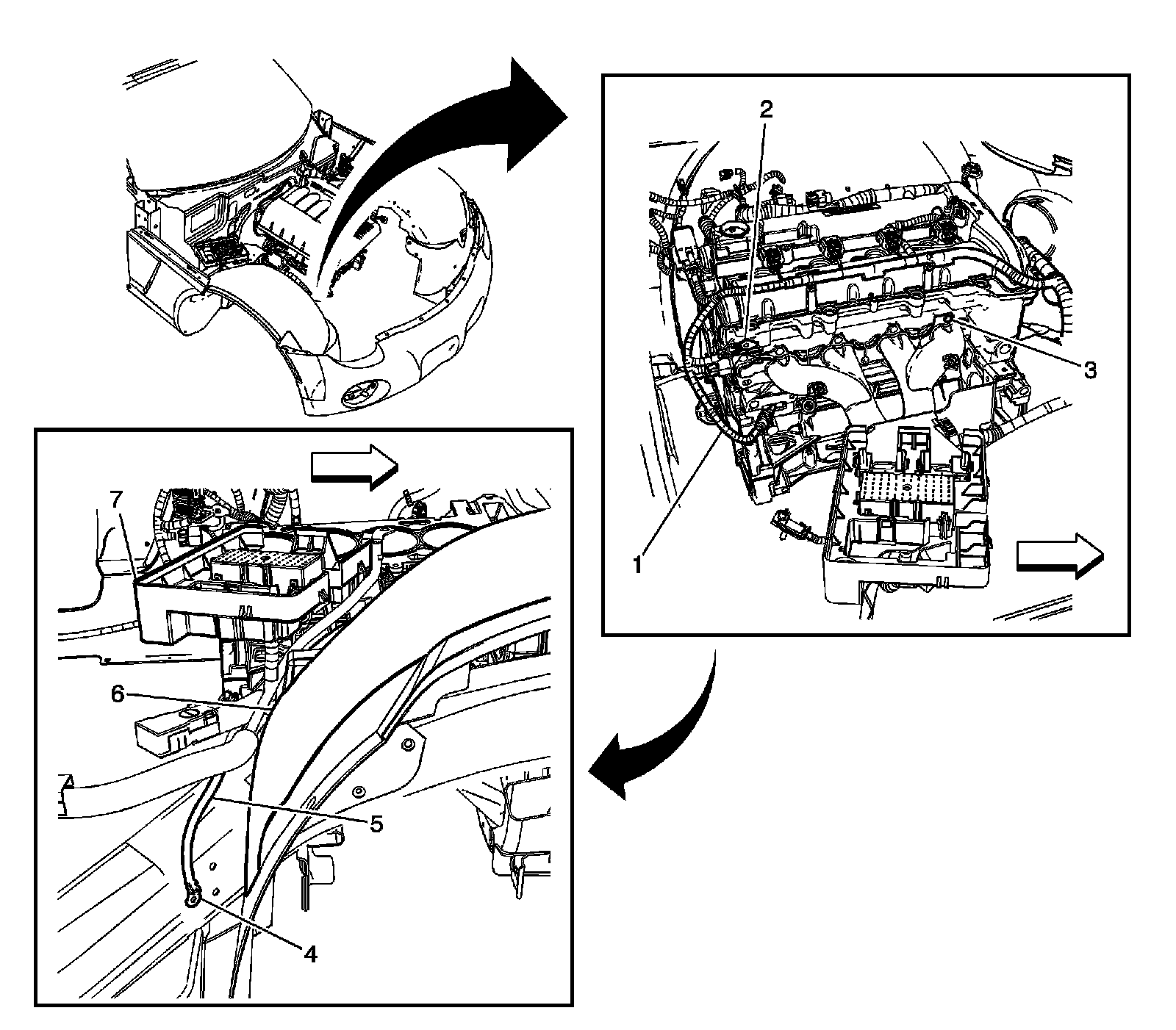

Right Side of Engine Compartment

Factory service manual diagram



1 - Engine Harness
2 - G103
3 - G104
4 - G106
5 - Battery Cable - Negative
6 - Wheel Well - Right
7 - Fuse Block - Underhood Bracket

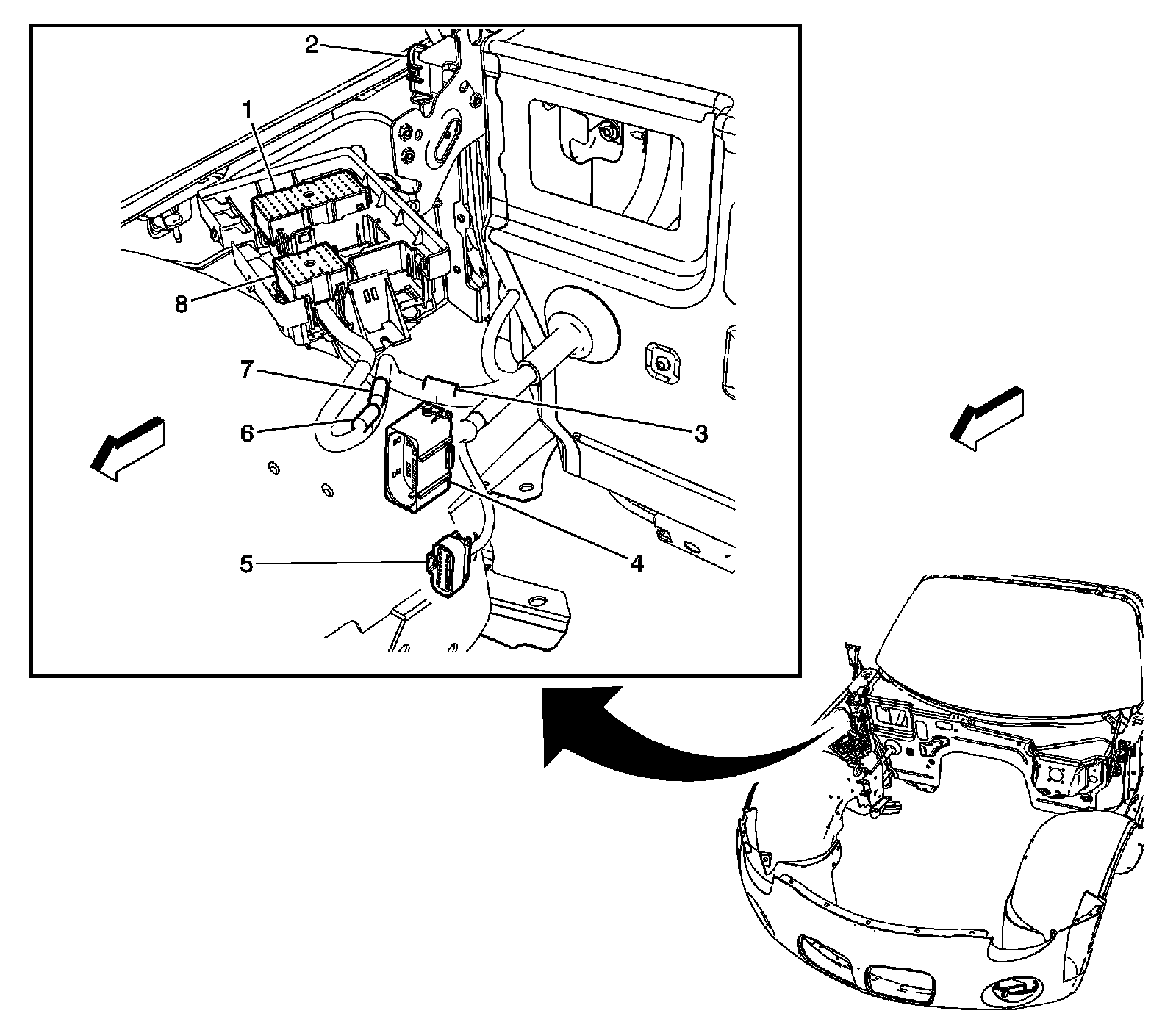

Instrument Panel Harness - Engine Compartment

Factory service manual diagram



1 - Fuse Block - Underhood X2
2 - X600
3 - J135
4 - X100
5 - X120
6 - J134
7 - J136
8 - Fuse Block - Underhood X4

X100, X120 and X122 (Sky)

Factory service manual diagram



1 - Fuse Block-Underhood
2 - X500
3 - X100
4 - X120
5 - X122
6 - X600
