2008 Pontiac Solstice L4-2.4LFACTORY OEM SERVICE PROCEDURE
Door Component Views
Door Component Views
Driver Door Components
1 - Outside Rearview Mirror - Driver
2 - Door Lock Switch - Driver
3 - Speaker - Left Front Door
4 - Outside Rearview Mirror - Driver
5 - Window Switch - Driver
6 - Door Lock Actuator - Driver

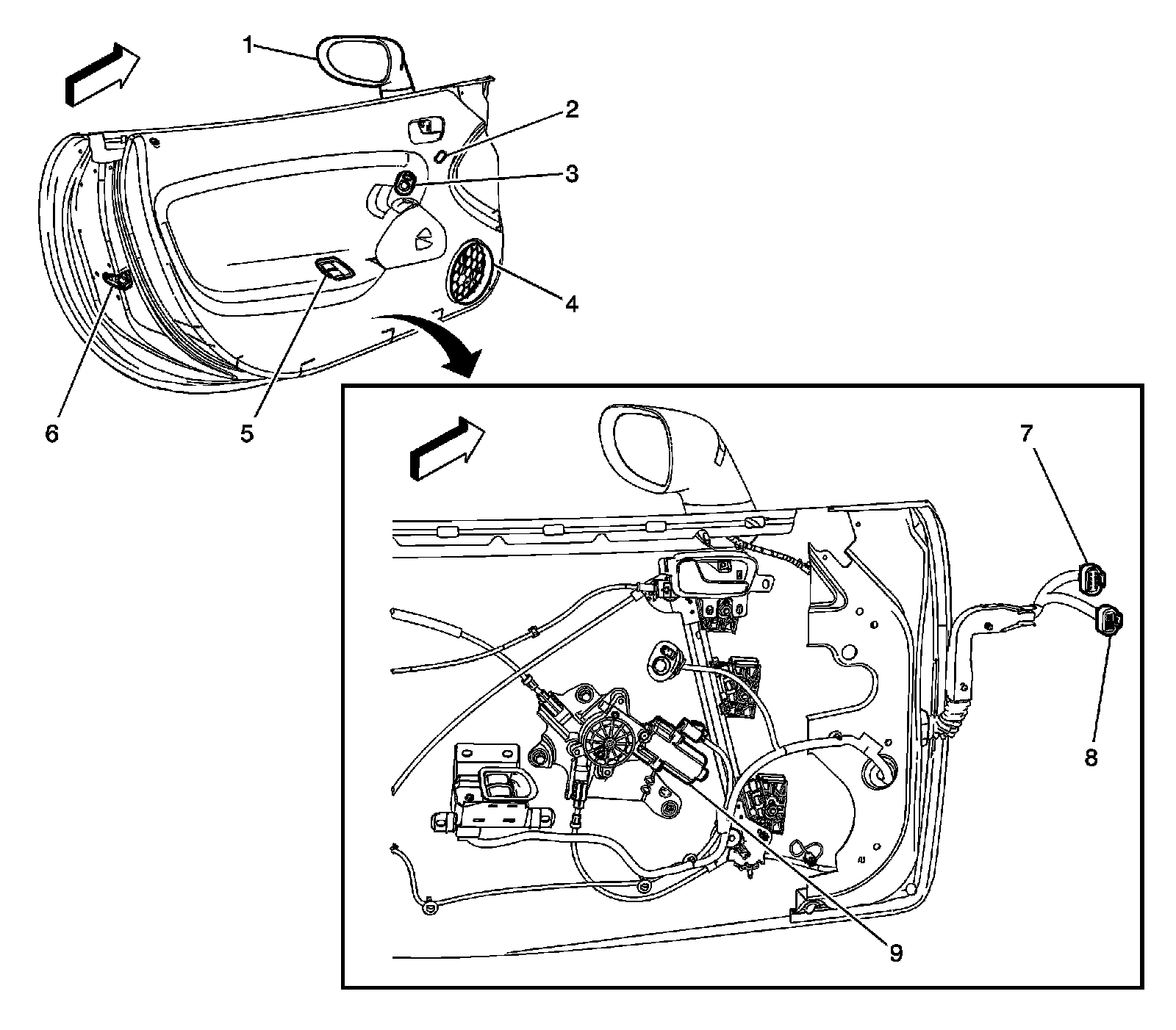

Driver Door Components
1 - Outside Rearview Mirror - Driver
2 - Door Lock Switch - Driver
3 - Outside Rearview Mirror Switch
4 - Speaker - Driver Door
5 - Window Switch - Driver
6 - Door Lock Actuator - Driver
7 - X501
8 - X500
9 - Window Motor - Driver

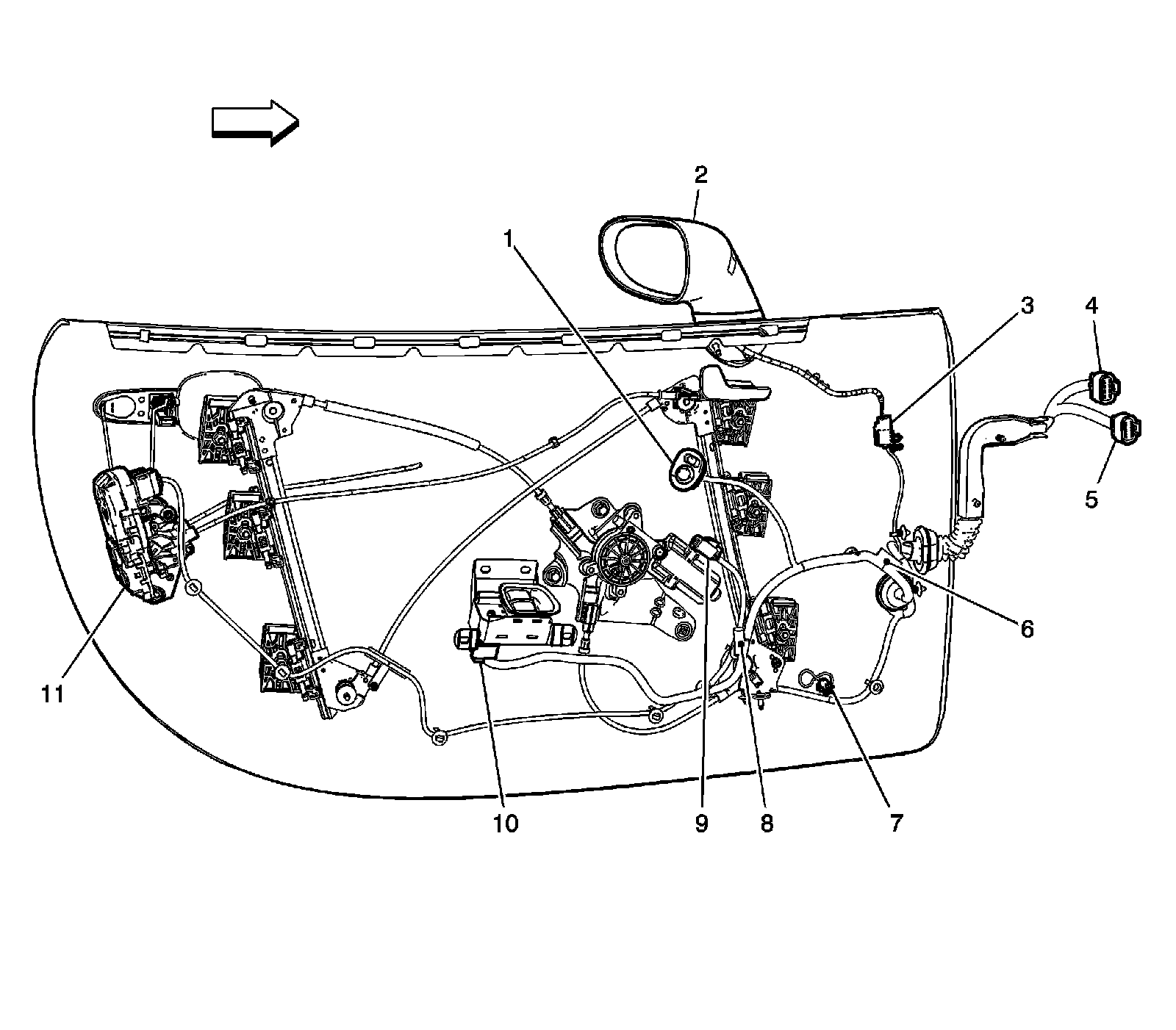

Driver Door
1 - Outside Rearview Mirror Switch
2 - Outside Rearview Mirror - Driver
3 - Outside Rearview Mirror Connector - Driver
4 - X501
5 - X500
6 - J501
7 - Speaker Connector - Left Front Door
8 - J500
9 - Window Motor - Driver
10 - Window Switch - Driver
11 - Door Lock Actuator - Driver
Driver Door (Sky)
1 - Outside Rearview Mirror - Driver (D48)
2 - Outside Rearview Mirror Connector (D48)
3 - X501
4 - X500
5 - J500
6 - J501
7 - Window Motor - Driver
8 - X505
9 - Door Lock Actuator - Driver

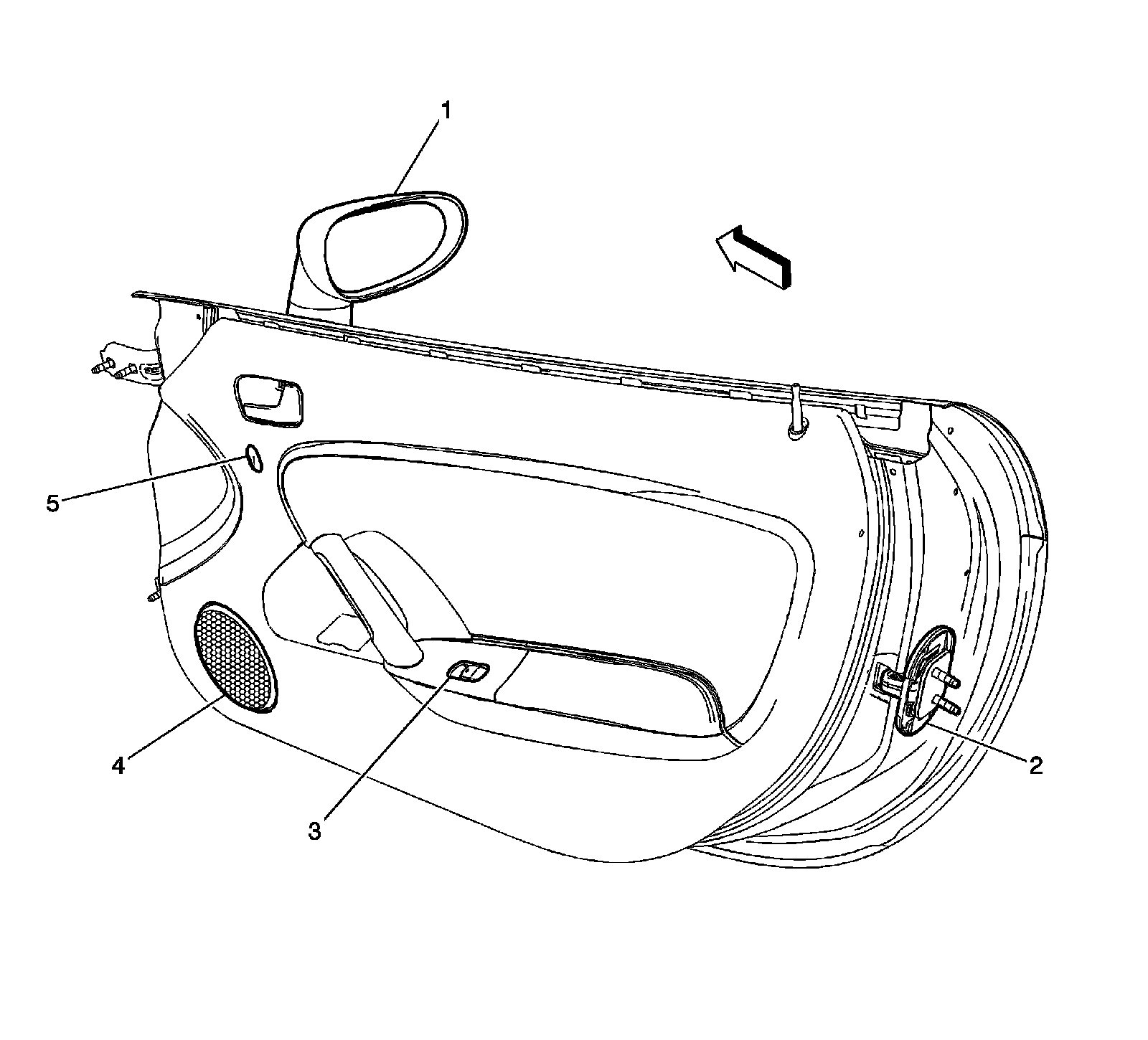

Passenger Door Components
1 - Outside Rearview Mirror - Passenger
2 - Door Lock Actuator - Passenger
3 - Window Switch - Passenger
4 - Speaker - Right Front Door
5 - Door Lock Switch - Passenger

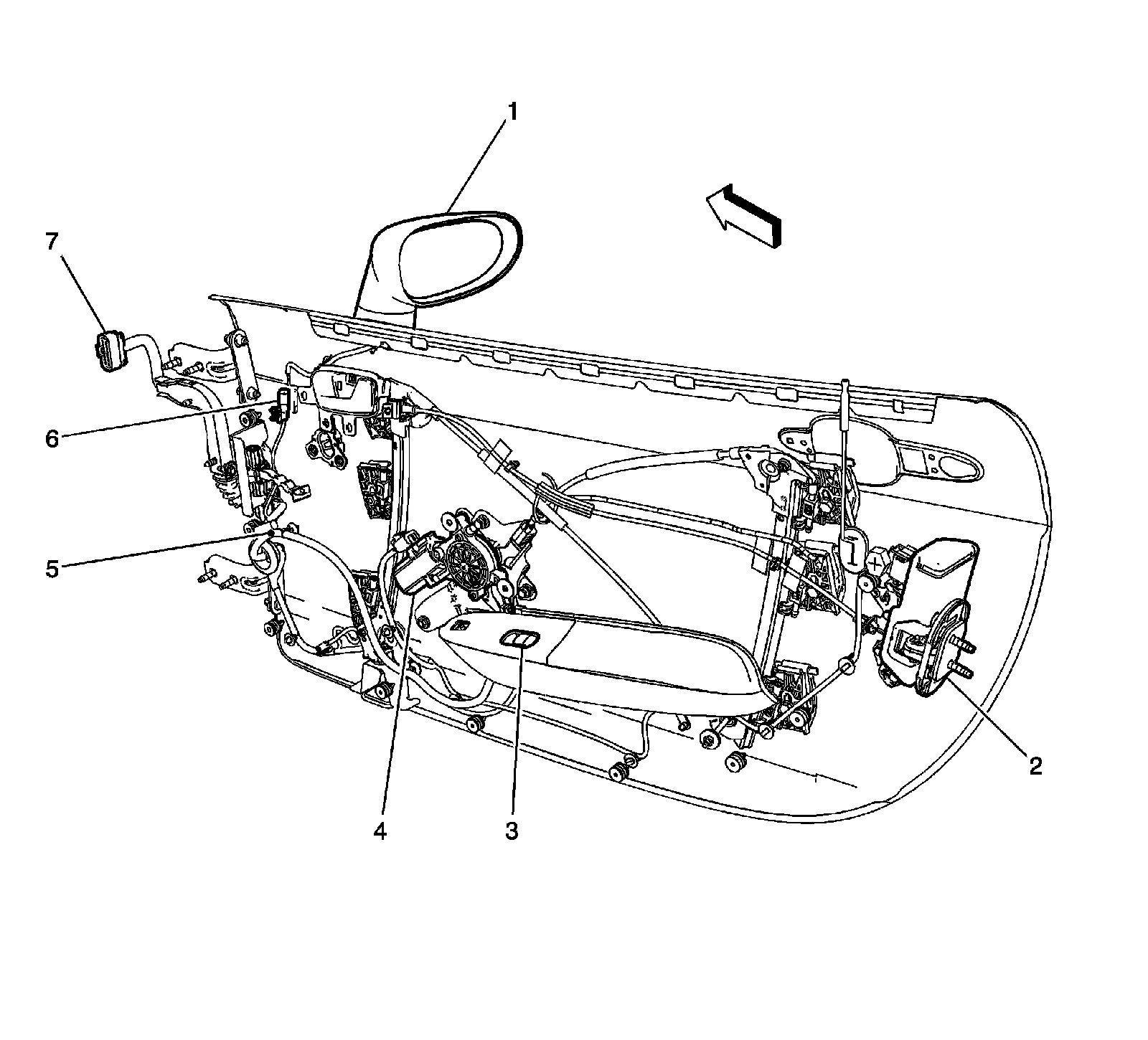

Passenger Door
1 - Outside Rearview Mirror - Passenger (D48)
2 - Door Lock Actuator - Passenger
3 - Door Lock Switch - Passenger
4 - Window Motor - Passenger
5 - J600
6 - Outside Rearview Mirror Connector (D48)
7 - X600
