2008 Pontiac Grand Prix V6-3.8LFACTORY OEM SERVICE PROCEDURE
Control Module: Locations
Automatic Transmission Electronic Component Views
Internal Electronic Component Locations
Internal Electronic Component Location:
10 - Vehicle Speed Sensor (VSS) Assembly
315a - 1-2, 3-4 Shift Solenoid (SS) Valve Assembly
315b - 2-3 Shift Solenoid (SS) Valve Assembly
322 - Pressure Control (PC) Solenoid Valve Assembly
334 - Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve Assembly
391 - Transmission Fluid Temperature (TFT) Sensor
395 - Transmission Fluid Pressure (TFP) Manual Valve Position Switch Assembly
440 - Automatic Transmission Input Shaft Speed (A/T ISS) Sensor Assembly
811 - Lever Assembly-Manual Shaft Detent with Shift Position Switch - Internal Mode Switch (IMS)

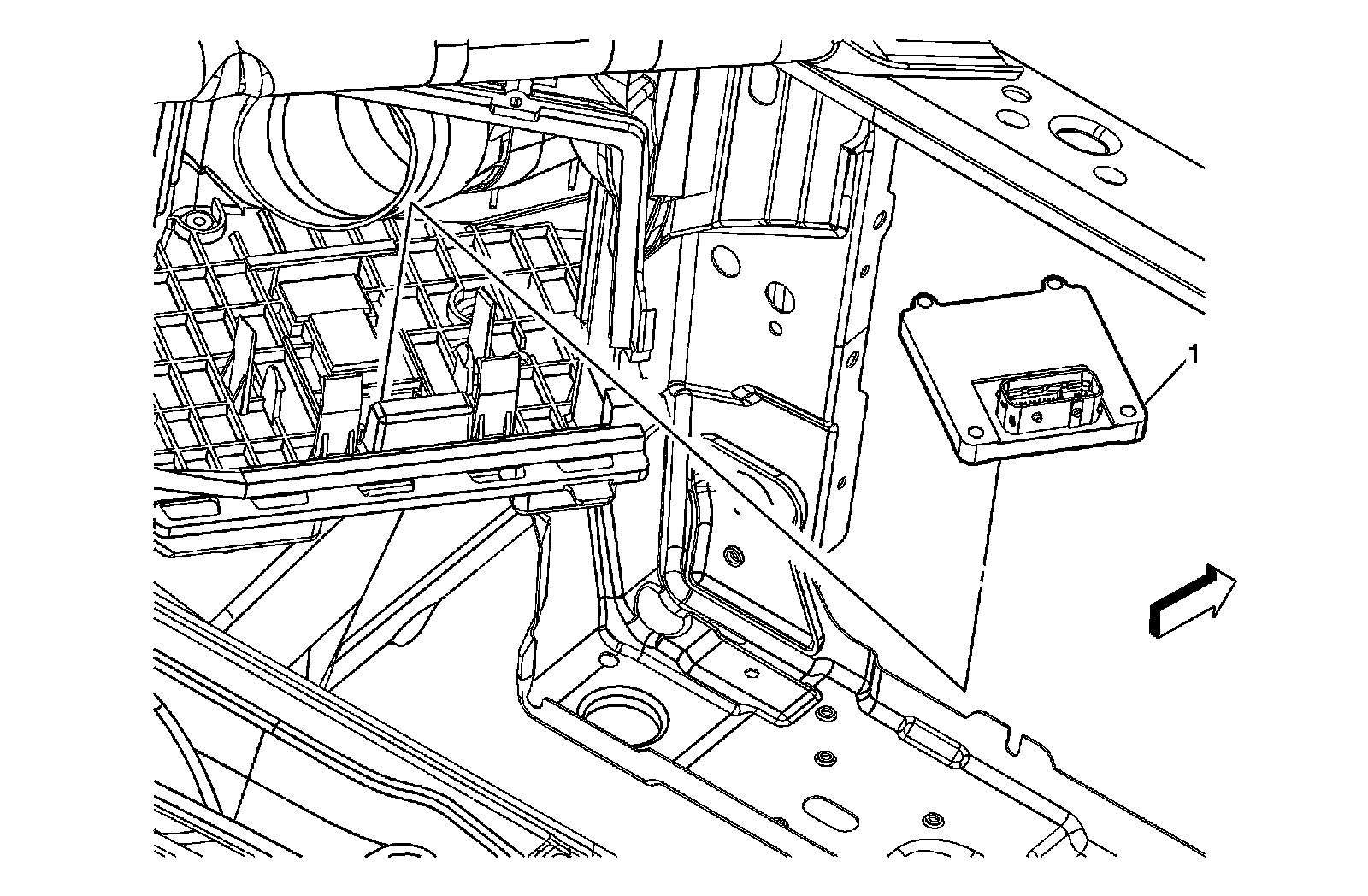

Engine Compartment-LF (3.8L)
Transmission Control Module:
1 - Transmission Control Module (TCM)

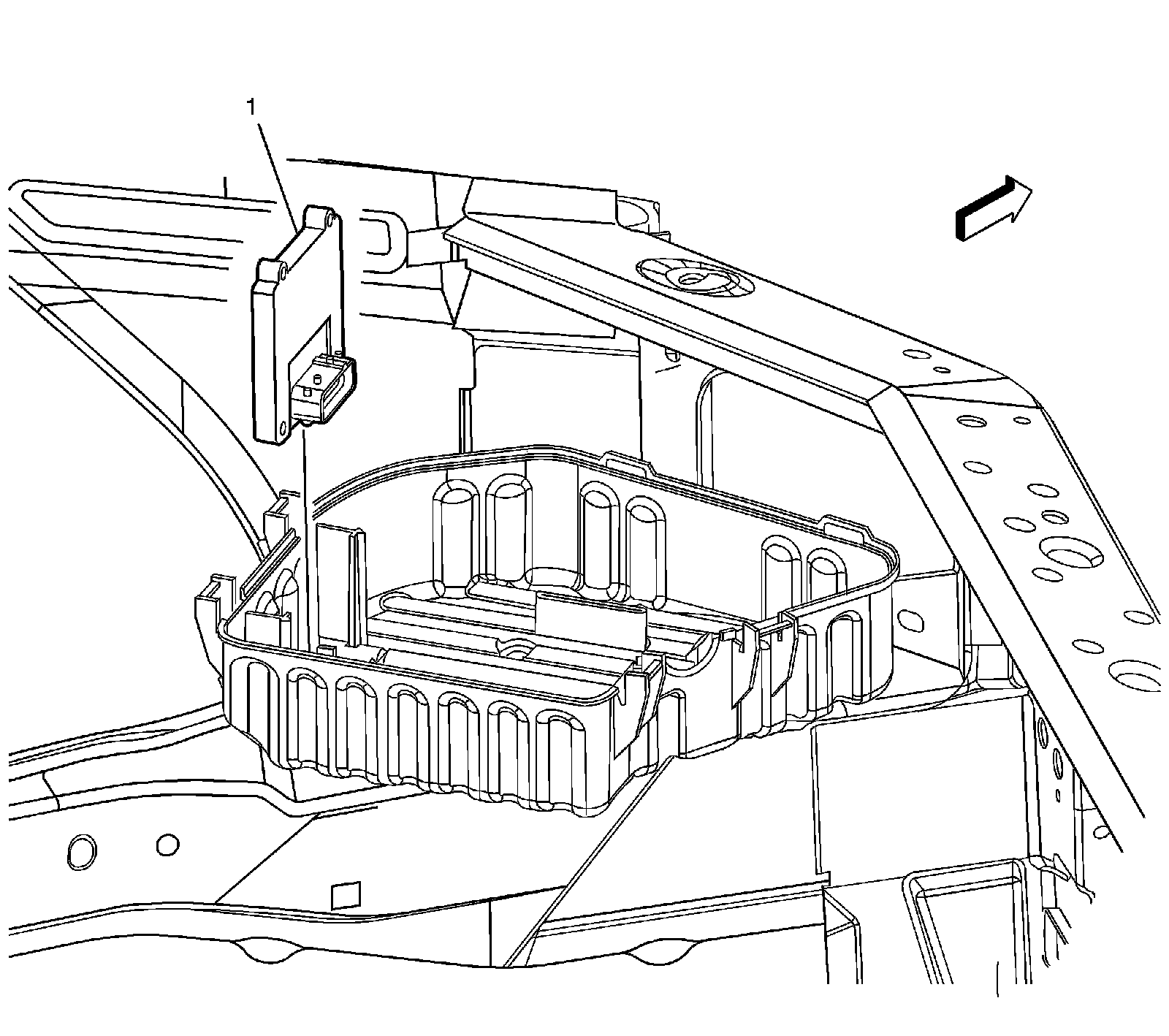

Transmission Control Module (TCM)
1 - Transmission Control Module
