2008 Pontiac Grand Prix V6-3.8L
Fuel Level Sensor Replacement
2008 Pontiac Grand Prix V6-3.8LSECTION Fuel Level Sensor Replacement
Fuel Level Sensor Replacement
Removal Procedure
Important: Always maintain cleanliness when servicing fuel system components.
1. Remove the fuel sender assembly. Refer to Fuel Sender Assembly Replacement (Service and Repair) .
2. Disconnect the fuel level sensor electrical connector.

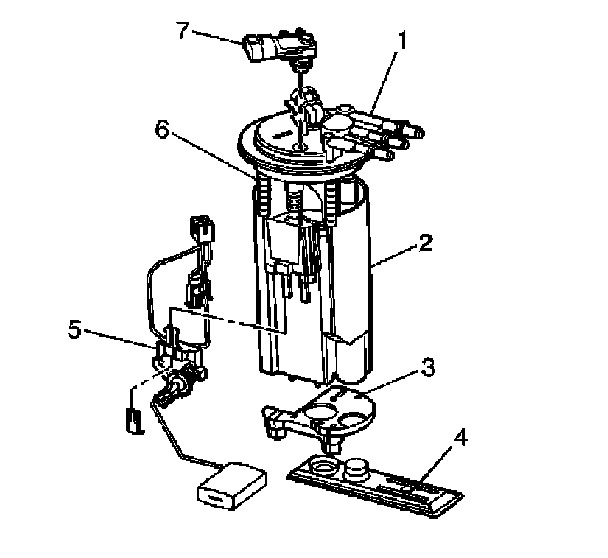

3. Remove the fuel level sensor (5) from the fuel sender assembly.
Installation Procedure
1. Install the fuel level sensor (5) to the fuel sender assembly.
2. Connect the fuel level sensor electrical connector.
3. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement (Service and Repair) .
