Instrument Panel/Center Console Component Views

Instrument Panel/Center Console Component Views

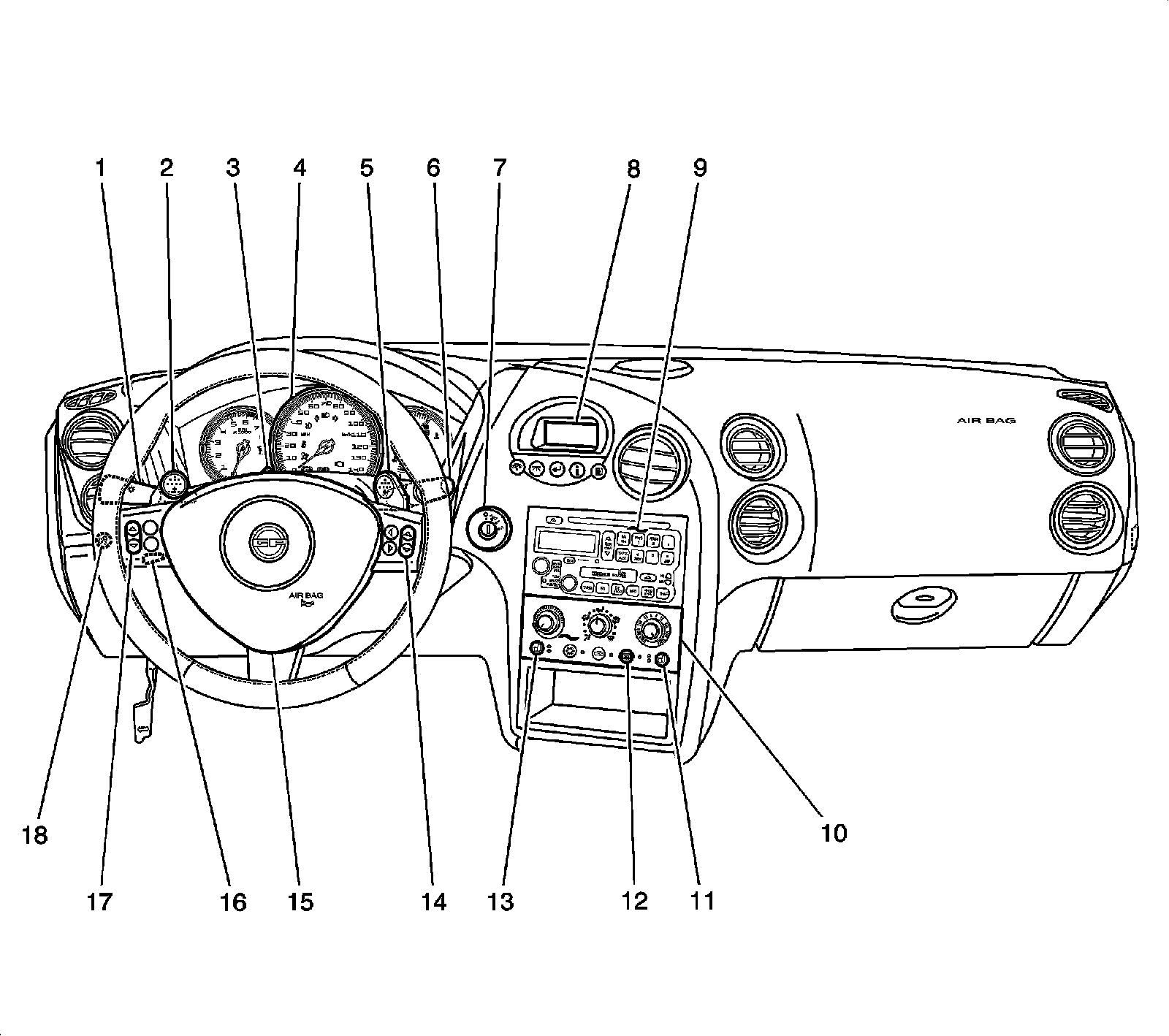

I/P Components




1 - Multifunction Turn Signal Lever
2 - TAP Shift Switch - Left
3 - Hazard Warning Switch
4 - Instrument Panel Cluster (IPC)
5 - TAP Shift Switch - Right
6 - Windshield Wiper/Washer Switch
7 - Ignition Switch
8 - Driver Information Center (DIC)
9 - Radio
10 - HVAC Control Module
11 - Heated Seat Switch - Front Passenger
12 - Rear Defogger Switch
13 - Heated Seat Switch - Driver
14 - Steering Wheel Controls - Right
15 - Inflatable Restraint Steering Wheel Module
16 - Tilt Steering Wheel Lever
17 - Steering Wheel Controls - Left
18 - Interior Lamp Switch

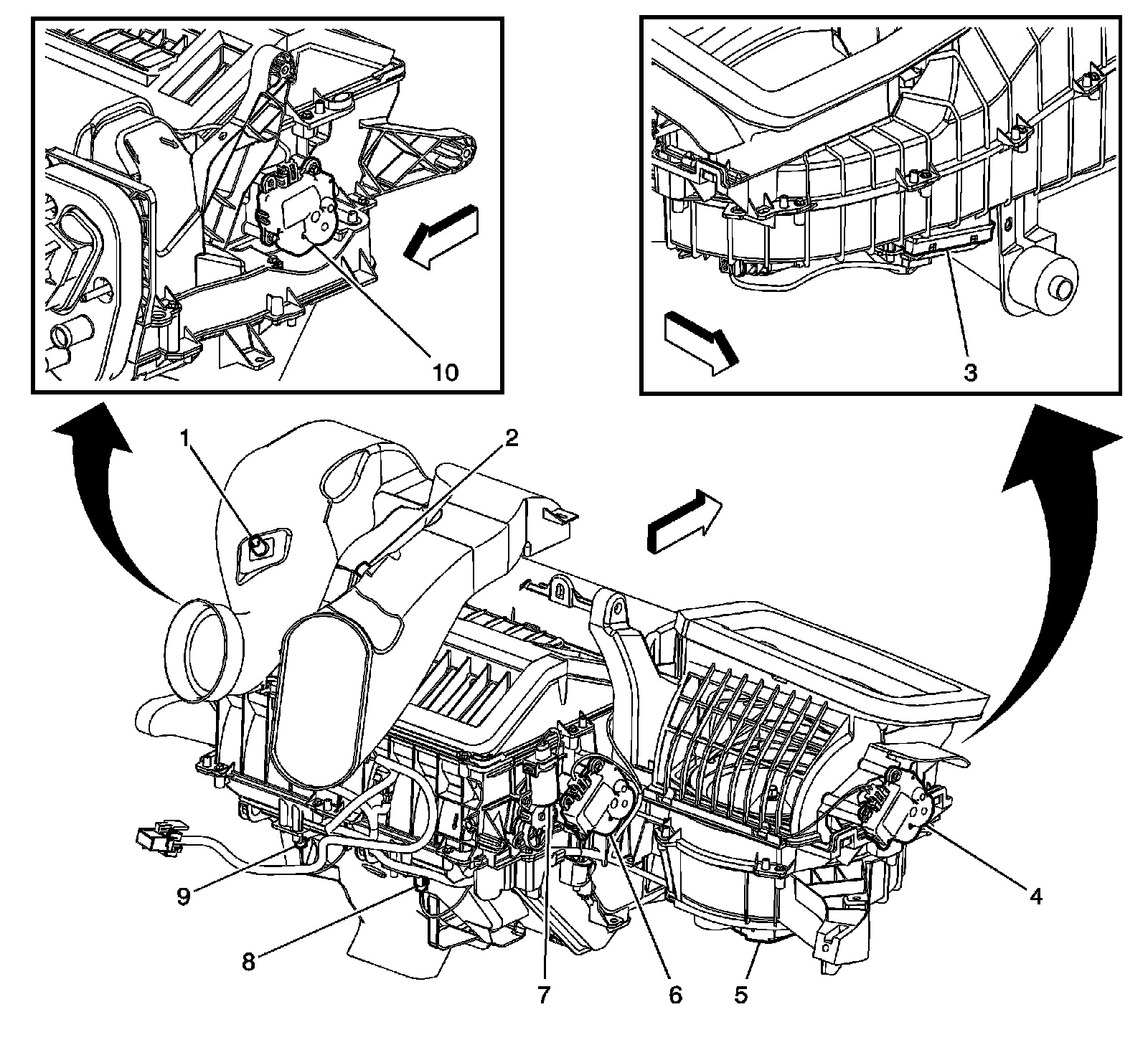

HVAC Case Components




1 - Air Temperature Sensor - Upper Left
2 - Air Temperature Sensor - Upper Right
3 - Blower Motor Control Processor
4 - Actuator Temperature Valve
5 - Blower Motor
6 - Actuator Temperature Valve
7 - Actuator Mode
8 - Ait Temperature Sensor - Lower Right
9 - Air Temperature Sensor - Lower Left
10 - Actuator Temperature Valve

Lower Center of I/P




1 - I/P Courtesy Lamp - Left
2 - I/P Courtesy Lamp - Right

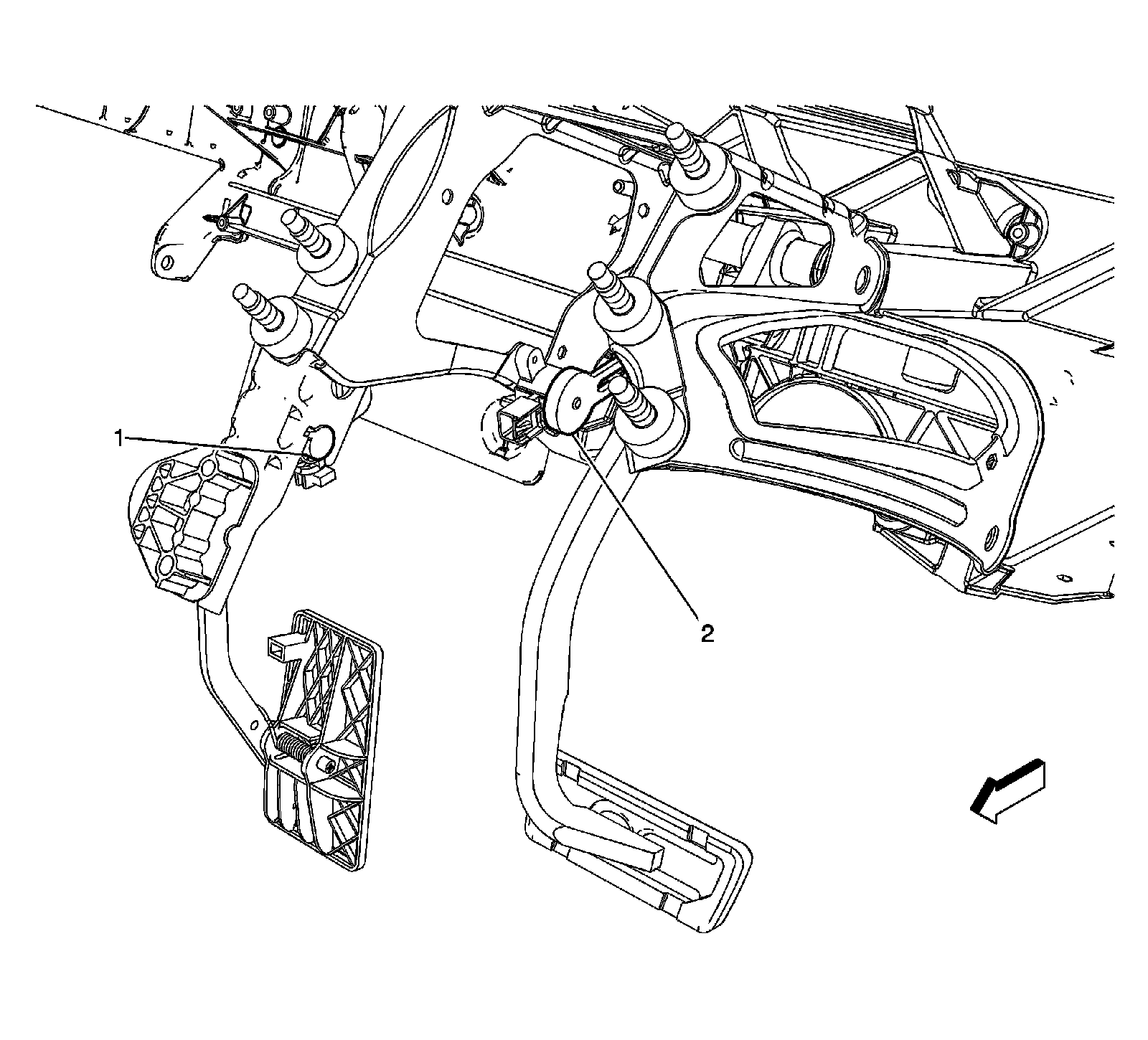

Lower Left of the I/P




1 - Accelerator Pedal Position (APP) Sensor
2 - Brake Pedal Position Sensor

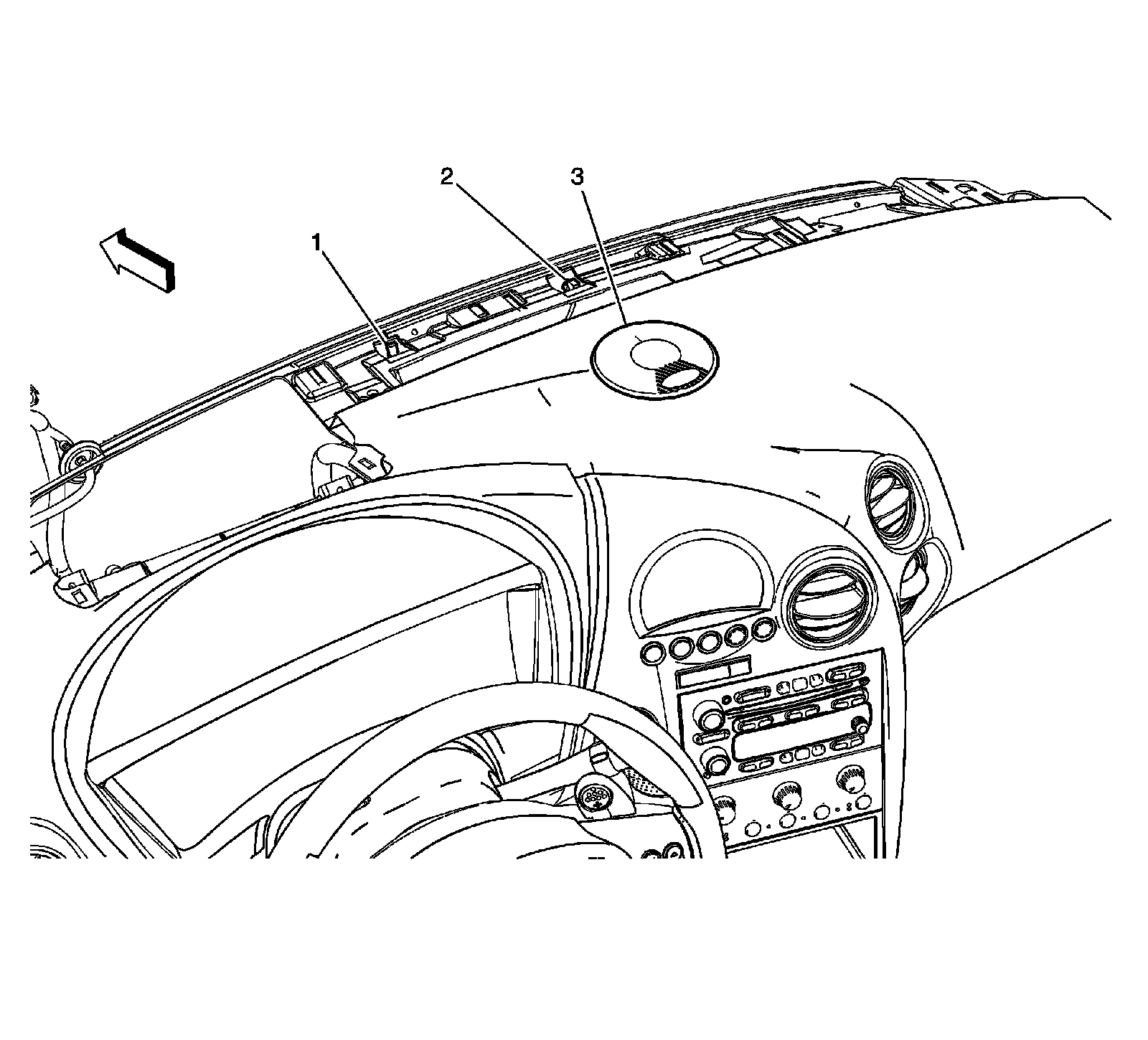

Upper Center Of The I/P




1 - Theft LED
2 - Ambient Light Sensor (C67) and Sunload Sensor Assembly (CJ2)
3 - Speaker - Center (U87)

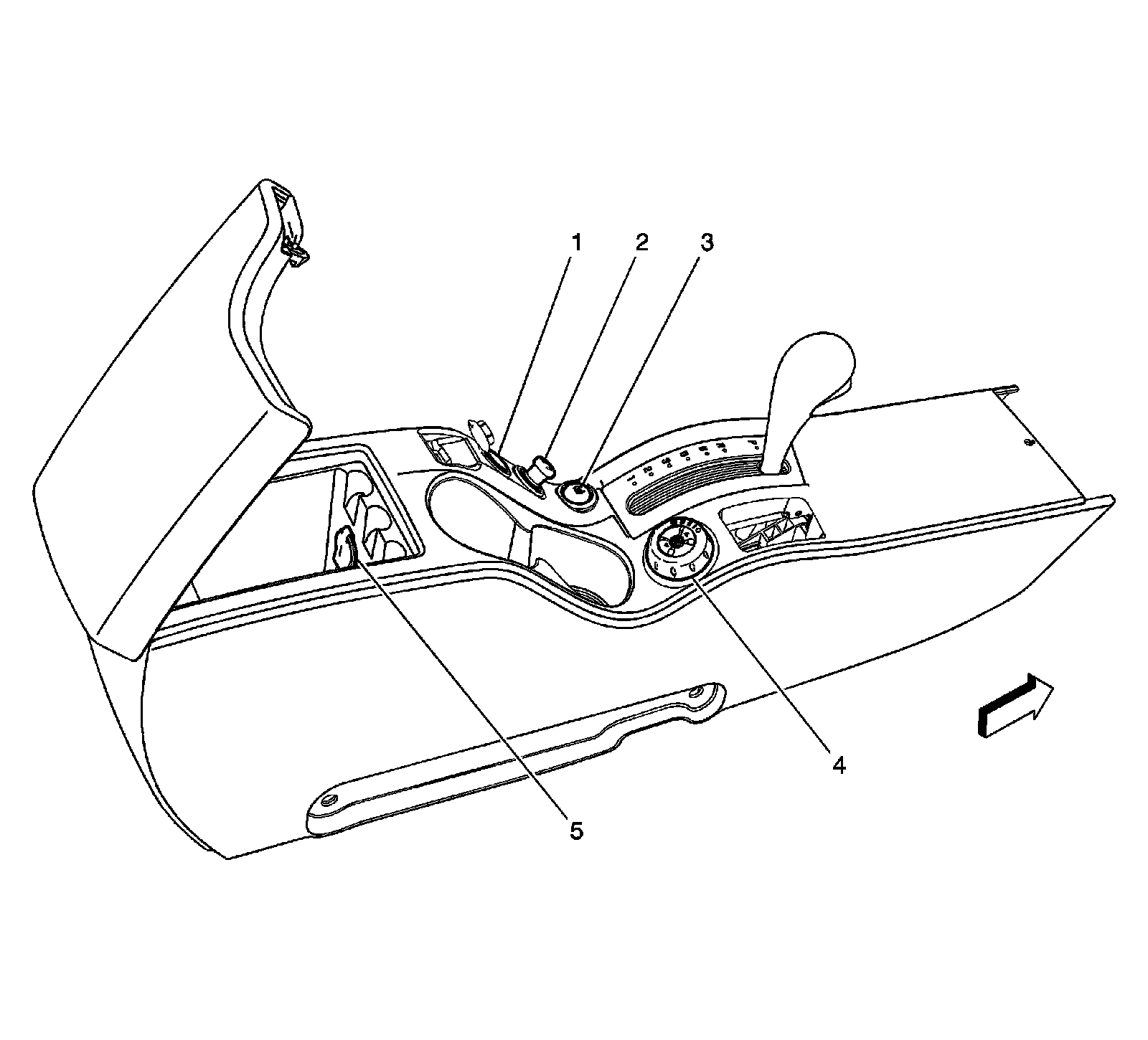

Floor Console




1 - Accessory Power Outlet - Front
2 - Audio Amplifier (U87)
3 - Traction Control Switch
4 - Head Up Display (HUD) Switch (UV6)
5 - Accessory Power Outlet - Rear

Floor Console




1 - PRNDL Lamp
2 - A/T Shift Lock Control Sensor
