2008 Pontiac Grand Prix V6-3.8L
Keyless Entry Module: Service and Repair
2008 Pontiac Grand Prix V6-3.8LSECTION Service and Repair

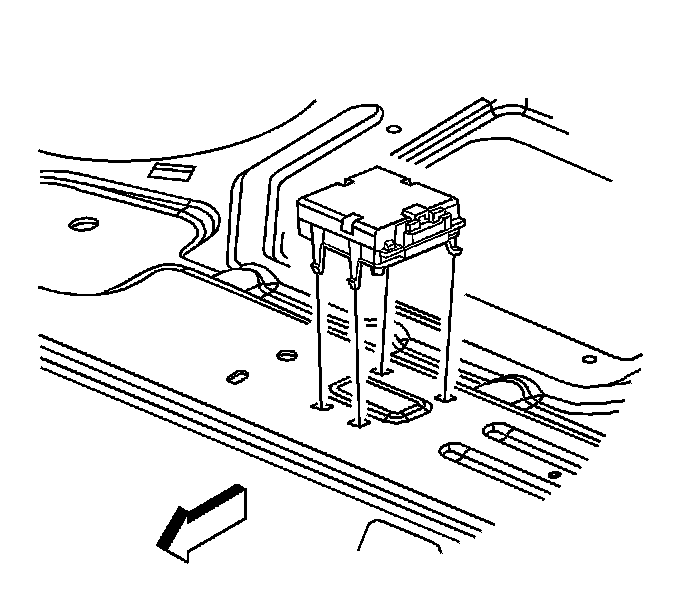

Remote Control Door Lock Receiver Replacement
Removal Procedure
1. Remove the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair) .
2. Reposition the sound barrier for access.
3. Disengage the receiver retainers.
4. Disconnect the electrical connector.
5. Remove the receiver.
Installation Procedure
1. Connect the electrical connector.
2. Align the receiver retainer to the openings in the rear shelf. Install the receiver.
3. Install the sound barrier.
4. Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair) .
5. After replacement of the remote control door lock receiver, the transmitters will have to be programmed to the receiver. Refer to Transmitter Programming (Programming and Relearning) .
6. Refer to Control Module References (Programming and Relearning) for programming and setup information.
