2008 Pontiac G8 BaseFACTORY OEM SERVICE PROCEDURE

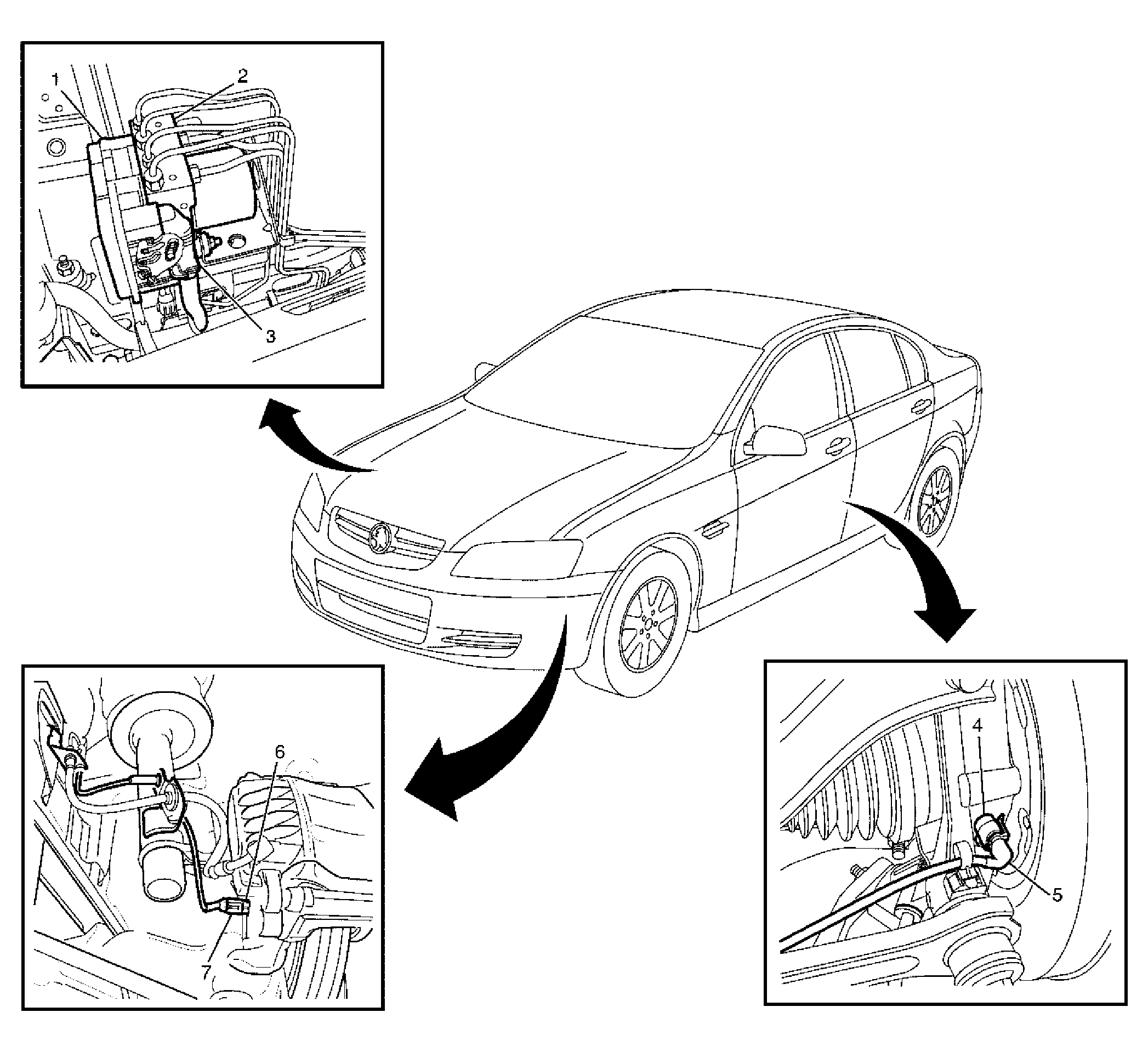

Antilock Brake System Component Views
| Callout | Component Name |
|---|---|
| 1 | Electronic Brake Control Module (EBCM) |
| 2 | Brake Pressure Modulator Valve (BPMV) |
| 3 | EBCM Connector |
| 4 | Wheel Speed Sensor - LR (RR Same) |
| 5 | Wheel Speed Sensor Connector - LR (RR Same) |
| 6 | Wheel Speed Sensor (WSS) - LF (RF Same) |
| 7 | Wheel Speed Sensor Connector - LF (RF Same) |
Fig 2: Steering Angle Sensor, Brake Pedal Position Sensor, ESP Switch and Yaw Rate/Lateral Accelerometer Sensor
| Callout | Component Name |
|---|---|
| 1 | SRS Coil Assembly (Incorporates the Steering Angle Sensor, SRS Coil and Indicator Cancel Cam Assembly) |
| 2 | ESP Switch |
| 3 | Yaw Rate/Lateral Accelerometer Sensor |
| 4 | Brake Pedal Position Sensor |
