2008 Pontiac G6 L4-2.4LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor Replacement
Fuel Level Sensor Replacement
Removal Procedure
1. Remove the fuel sender.
2. Remove the fuel level sensor electrical connector from the molded-in tab on the pump module bowl.

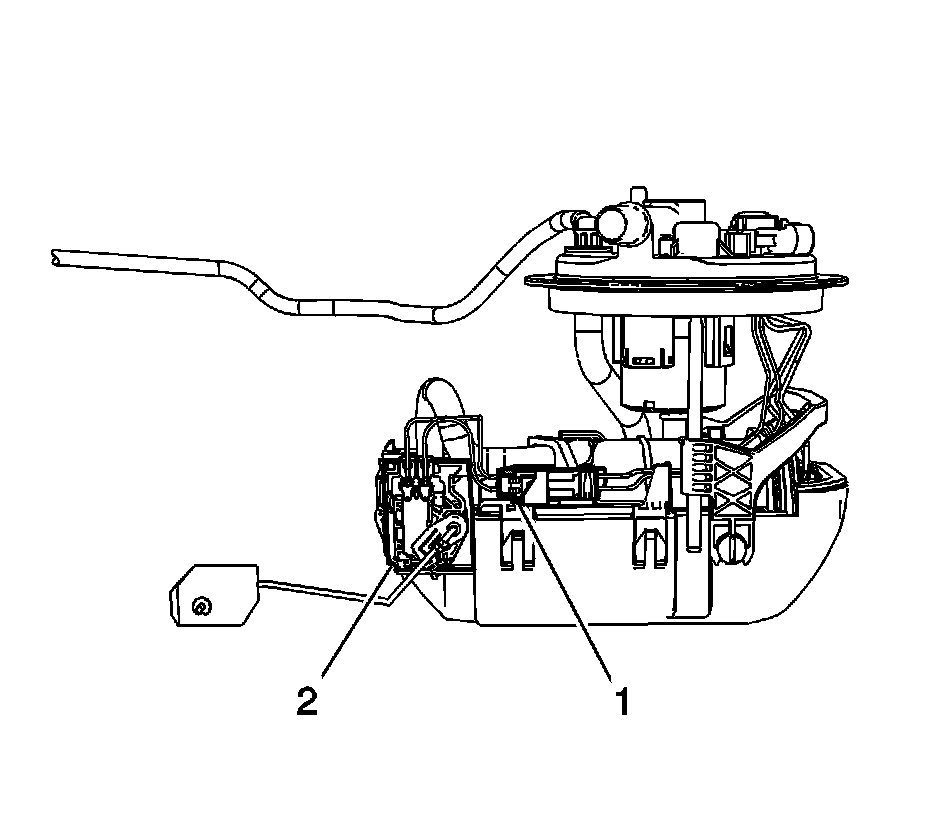

3. Disconnect the fuel level sensor electrical connector (1).
4. Depress the retaining tab on the fuel level sensor and begin to slide the sensor away from the pump module.
5. Carefully slide the sensor (2) the rest of the way off of the pump module.
Installation Procedure
1. Carefully slide the fuel level sensor (2) into the slots on the fuel pump module bowl.
2. Secure the retaining tab on the sensor into the slot on the pump module bowl.
3. Connect the fuel level sensor electrical connector (1) to the pump module cover.
4. Install the fuel level sensor electrical connector to the molded-in tab on the pump module bowl.
5. Install the fuel sender.
