2008 Pontiac G6 L4-2.4LFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor: Service and Repair
Accelerator Pedal Position Sensor Replacement
Removal Procedure
1. Disconnect the accelerator pedal position (APP) sensor electrical connector.

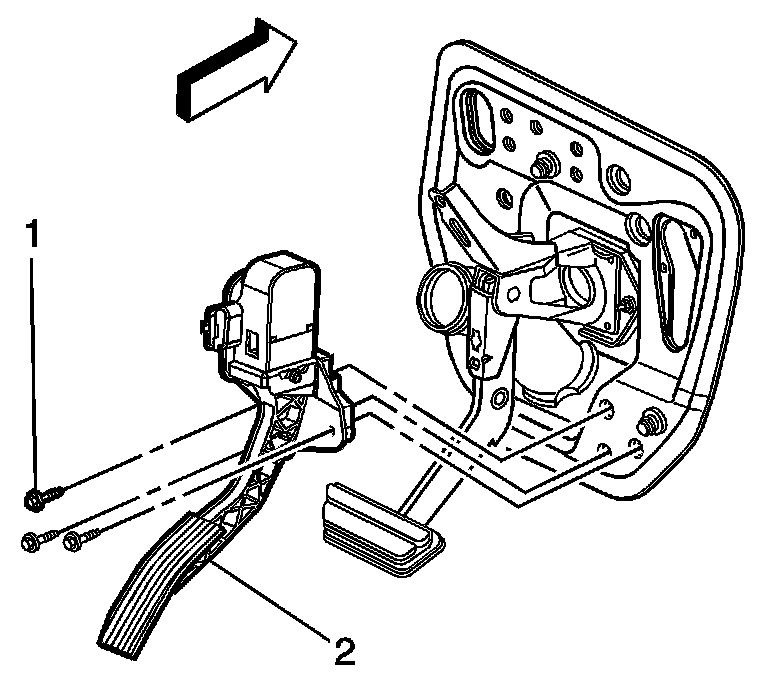

2. Remove the APP sensor bolts (1).
3. Remove the APP sensor (2).
Installation Procedure
1. Install the APP sensor (2).
Notice: Refer to Fastener Notice.
2. Install the APP bolts (1).
Tighten the bolts to 10 N.m (89 lb in).
3. Connect the APP sensor electrical connector.
4. Confirm that the APP sensor connector locking clip is fully secured.
