2008 Pontiac G6 L4-2.4LFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor: Locations
Instrument Panel/Center Console Component Views

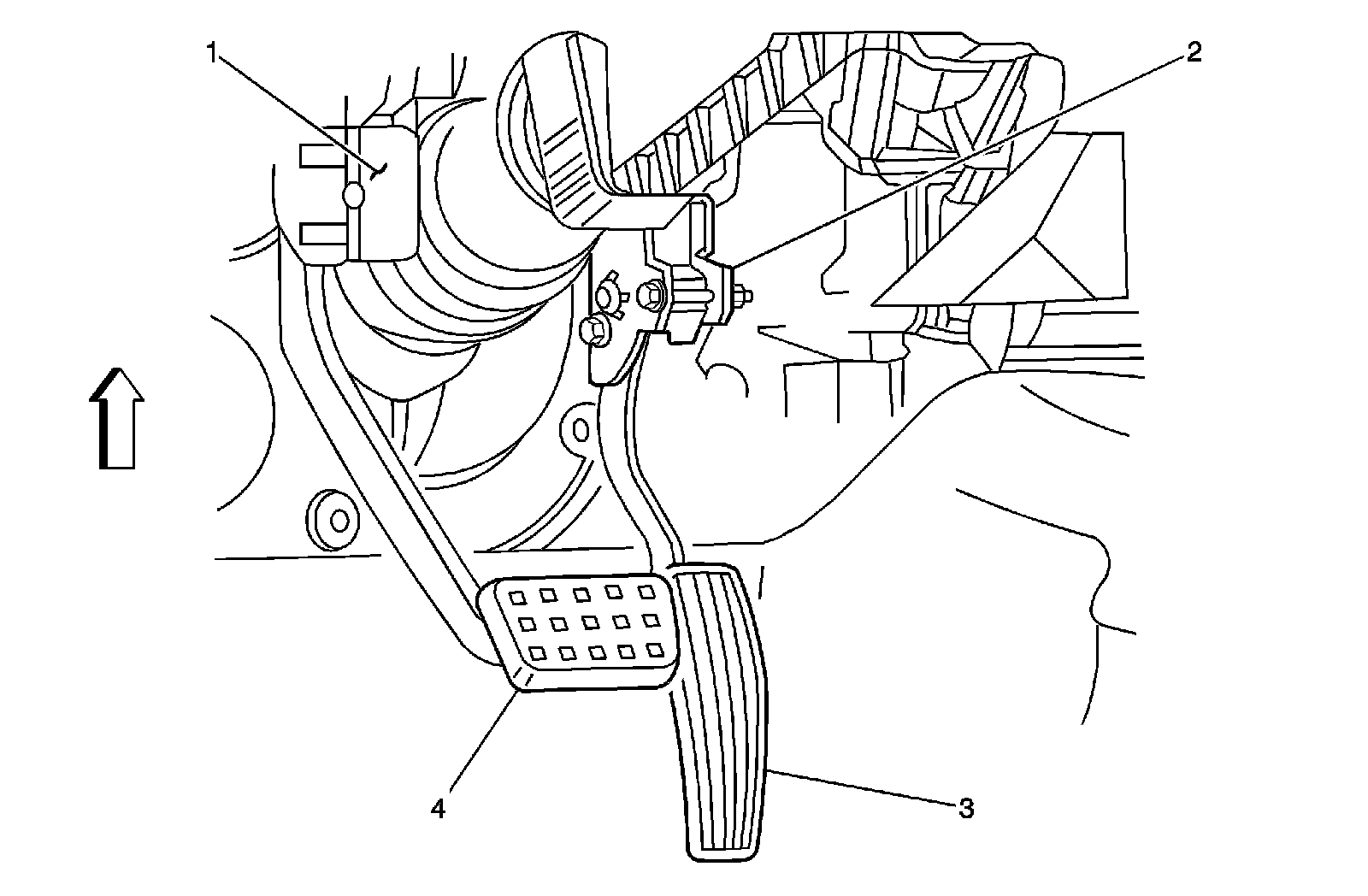

Lower Left of the I/P Components 2 of 4
1 - Brake Pedal Position Sensor
2 - Accelerator Pedal Position (APP) Sensor
3 - Accelerator Pedal
4 - Brake Pedal
Lower Left of the I/P Components 4 of 4
1 - Accelerator Pedal Position (APP) Sensor
2 - Adjustable Pedals Actuator (JF4)
3 - Air Temperature Actuator
