2008 Pontiac G6 L4-2.4LFACTORY OEM SERVICE PROCEDURE
Control Module HVAC: Service and Repair

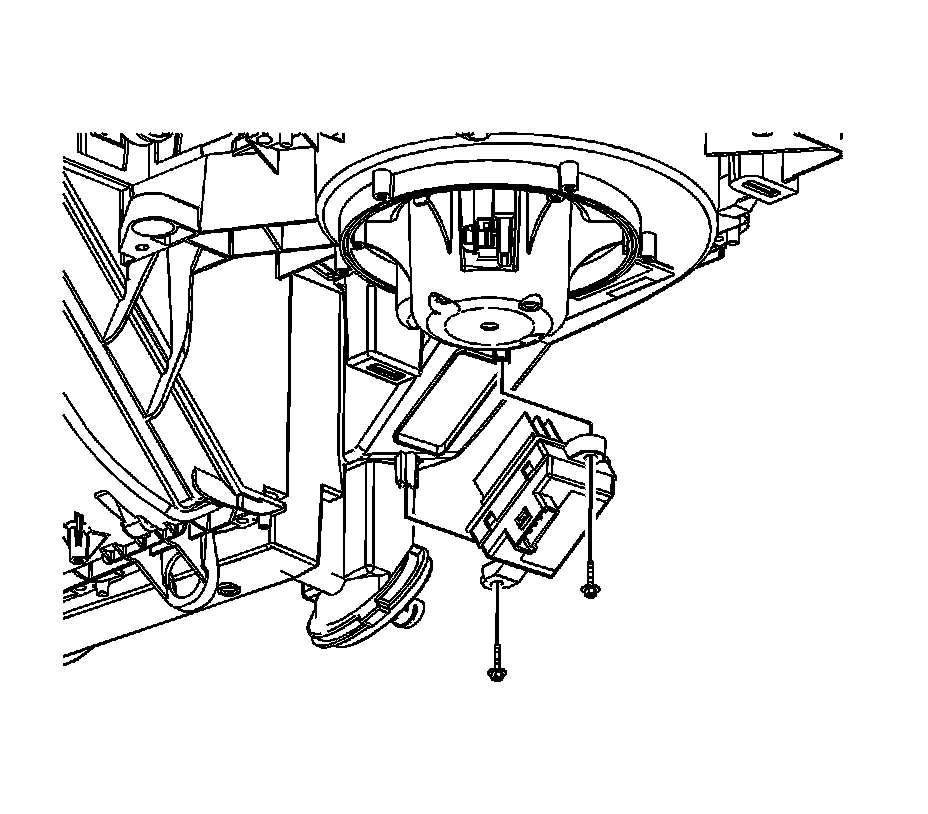

Blower Motor Control Processor Replacement
Removal Procedure
1. Remove the right closeout panel.
2. Remove the blower motor control processor wire harness connector.
3. Remove the blower motor control processor screws.
4. Remove the blower motor control processor.
Installation Procedure
1. Install the blower motor control processor.
Notice: Refer to Fastener Notice.
2. Tighten the blower motor control processor screws.
Tighten the screws to 1.5 N.m (13 lb in).
3. Install the blower motor control processor wire harness connector.
4. Install the right closeout panel.
