2008 Pontiac G6 L4-2.4LFACTORY OEM SERVICE PROCEDURE
Seat Temperature Control Module: Service and Repair
Front Seat Heater Control Module Replacement
Removal Procedure
Caution: Refer to Restraint System Service Precautions.
1. Remove the front seat.

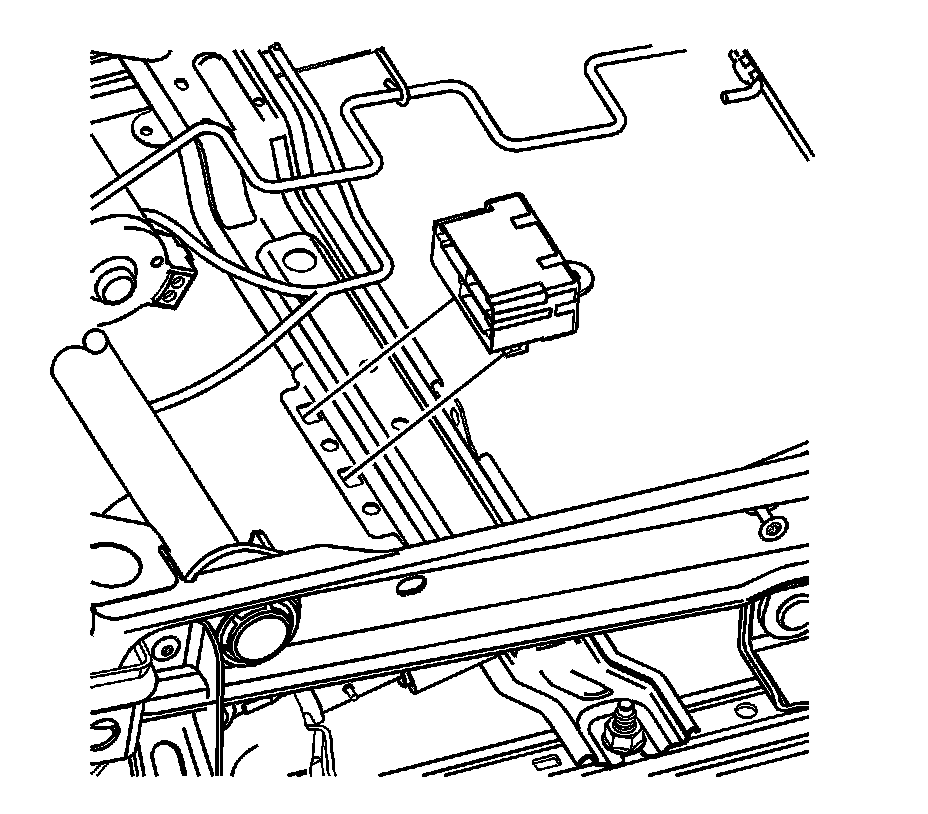

2. Disconnect the electrical connection from the heated seat control module.

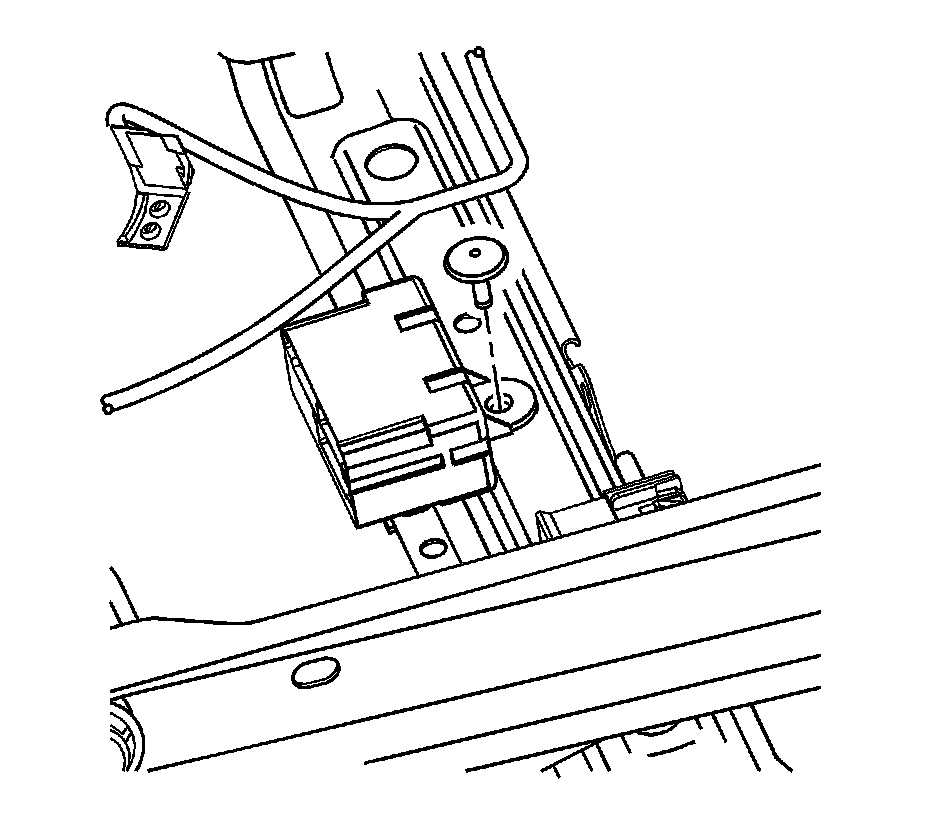

3. Remove the fastener from the heated seat control module.
4. Remove the heated seat control module.
Installation Procedure

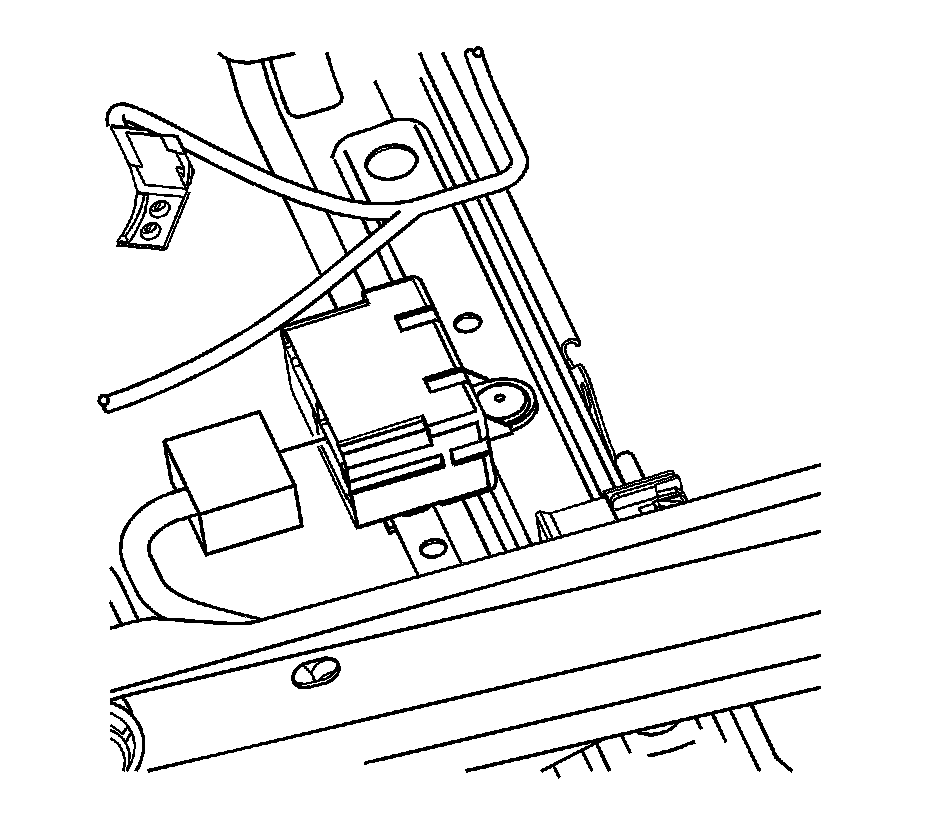

1. Install the heated seat control module.
2. Install the fastener to the heated seat control module.
3. Connect the electrical connection to the heated seat control module.
4. Install the front seat.
5. Verify that the heated seat works correctly.
