2008 Pontiac G6 L4-2.4LFACTORY OEM SERVICE PROCEDURE
Front Subframe Mount: Service and Repair
Drivetrain and Front Suspension Frame Insulator Replacement
Tools Required
J-45725Frame Bushing Installer
Removal Procedure
1.Remove the frame. Refer to Frame Replacement .
2.Remove cradle bushing with a rubber mallet.
Installation Procedure

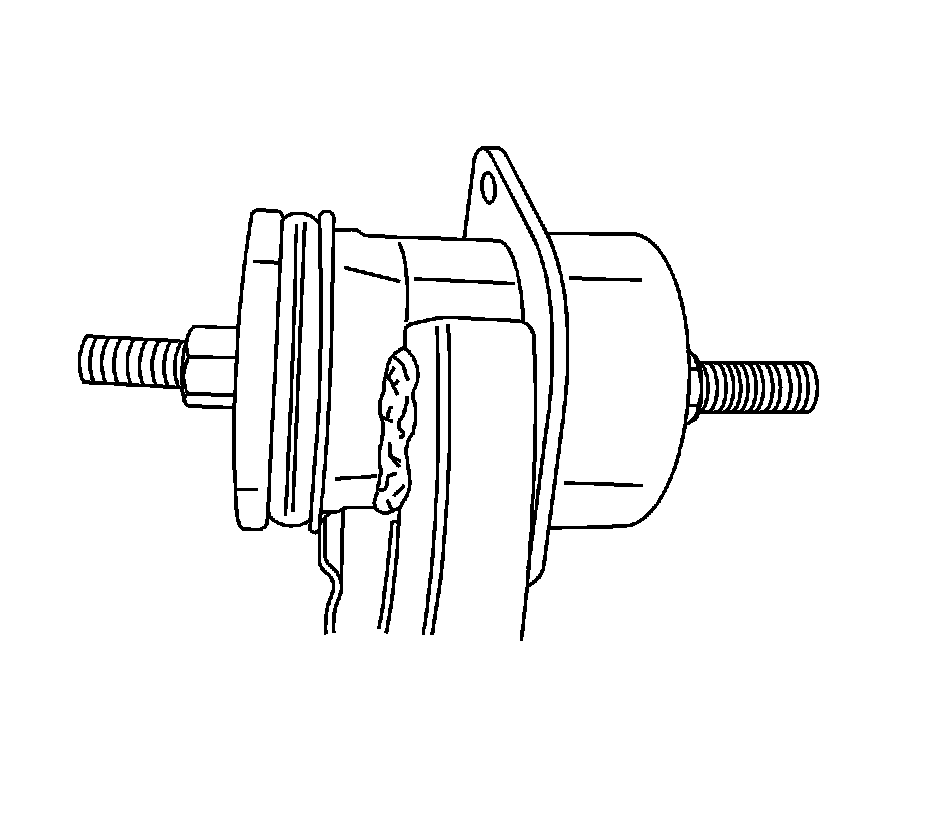

1.Install clamp J-45725 frame bushing installer onto the bushing leaving about an 1/8 inch from the bottom of the bushing.
2.Align the split of the bushing to the front of the frame.

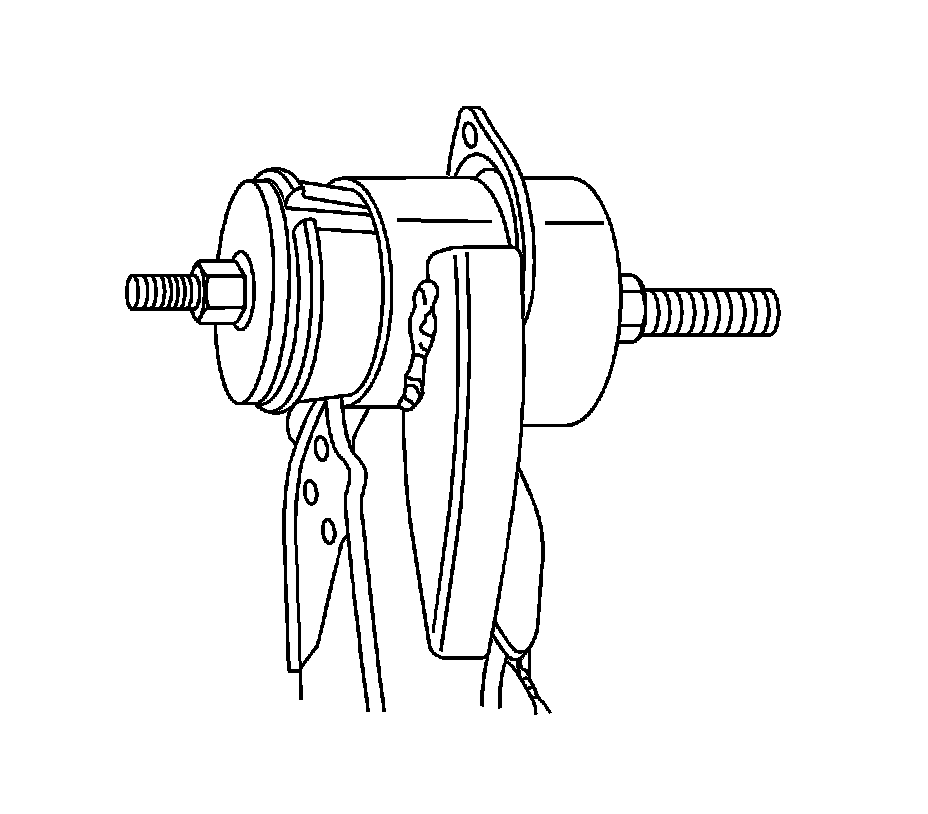

3.Using J-45725 frame bushing installer install the bushing until the entire radius of the bushing is halfway recessed in the cradle.
4.Remove the J-45725 frame bushing installer clamp.

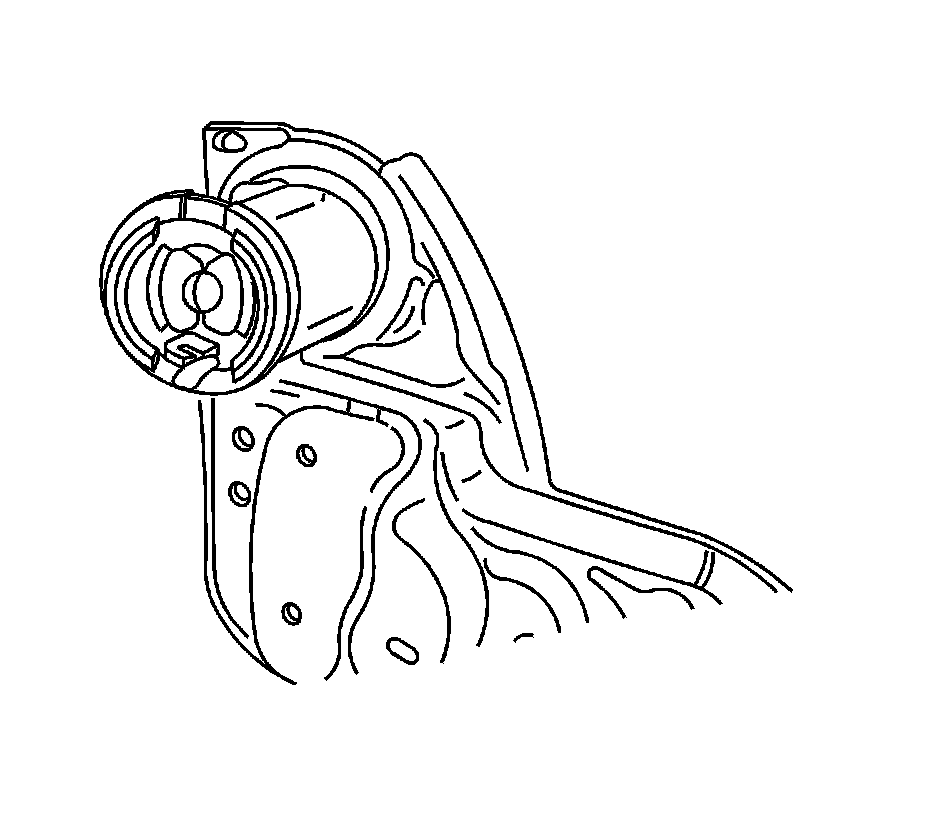

5.Install the bushing using the J-45725 frame bushing installer until the lip of the bushing is fully seated to the bottom of the cradle assembly.
6.Install the frame. Refer to Frame Replacement .
